NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH640

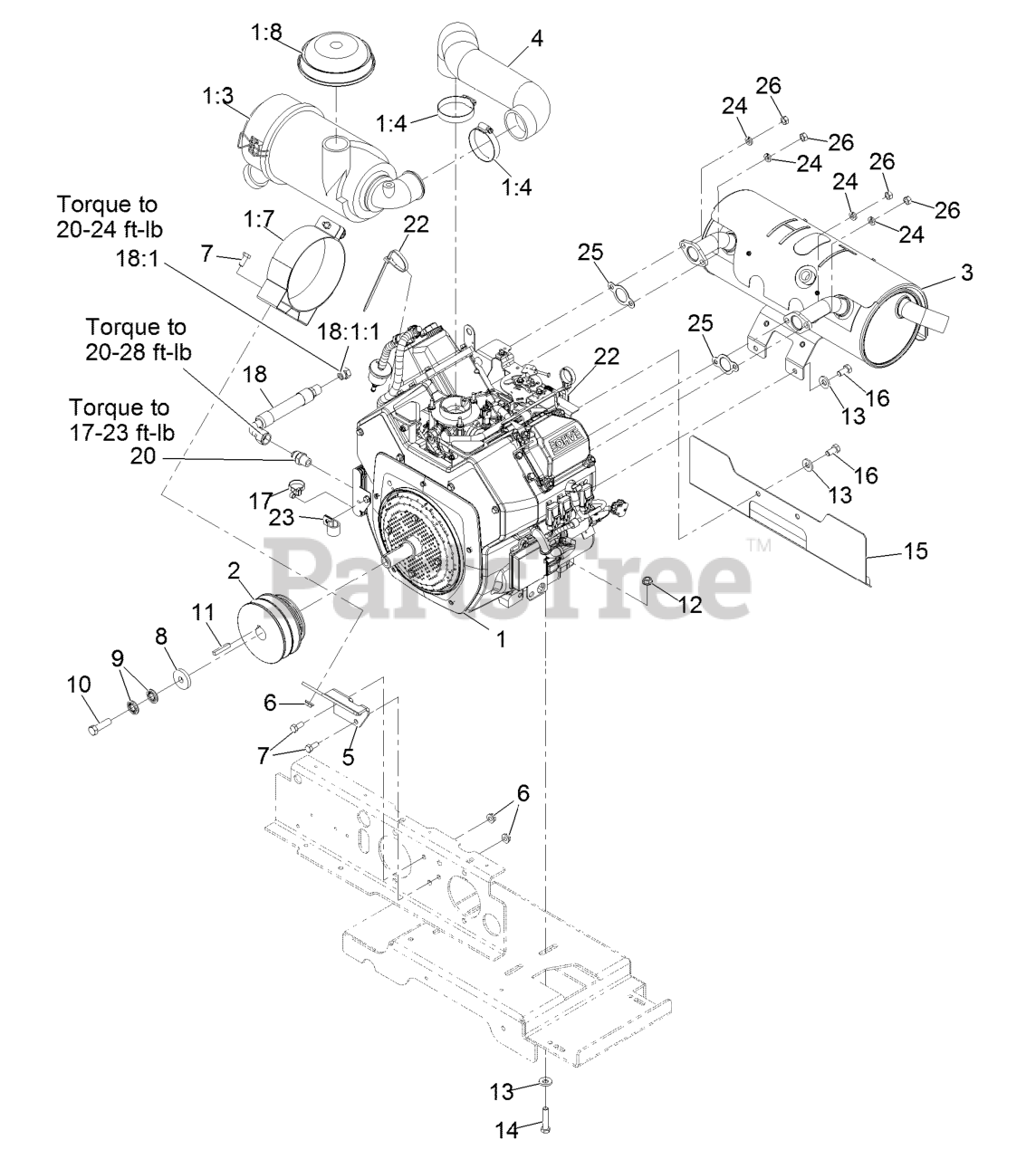

Engine Assembly Parts Diagram

  • Title

1

Asm-Engine 640kc

Note: Not serviced separately

$

$

Not available

1:3

Exmark 103-8569

AIR CLEANER CANISTER ASM

$369.99

$

Usually ships in 3-6 days

0

1:4

Exmark 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

1:7

Exmark 103-1058

BRACKET-FILTER, AIR

$110.99

$

Usually ships in 3-6 days

0

1:8

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$69.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6731

109-0942
(Superseded to 109-0942)

$213.99

$

Usually ships in 3-6 days

0

3

Exmark 103-7444

109-3501
(Superseded to 109-3501)

$281.99

$

Usually ships in 3-6 days

0

4

Exmark 103-6961

HOSE-AIR INTAKE

$107.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3695-03

BRACKET-FILTER, AIR

$33.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 17

0

9

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

10

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, Qty 10

0

11

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

12

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-0181-03

SHIELD-EXHAUST

$64.99

$

Usually ships in 3-6 days

0

16

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Exmark 109-7896

Tie-Cable

$

$

Currently unavailable

18

Exmark 116-5338

OIL DRAIN HOSE ASM

$62.99

$

Usually ships in 3-6 days

0

18:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 4 left!

0

18:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Exmark 116-1455

FITTING-STRAIGHT

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$6.99

$

Usually ships in 3-6 days

0

22

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

23

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

26

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0
