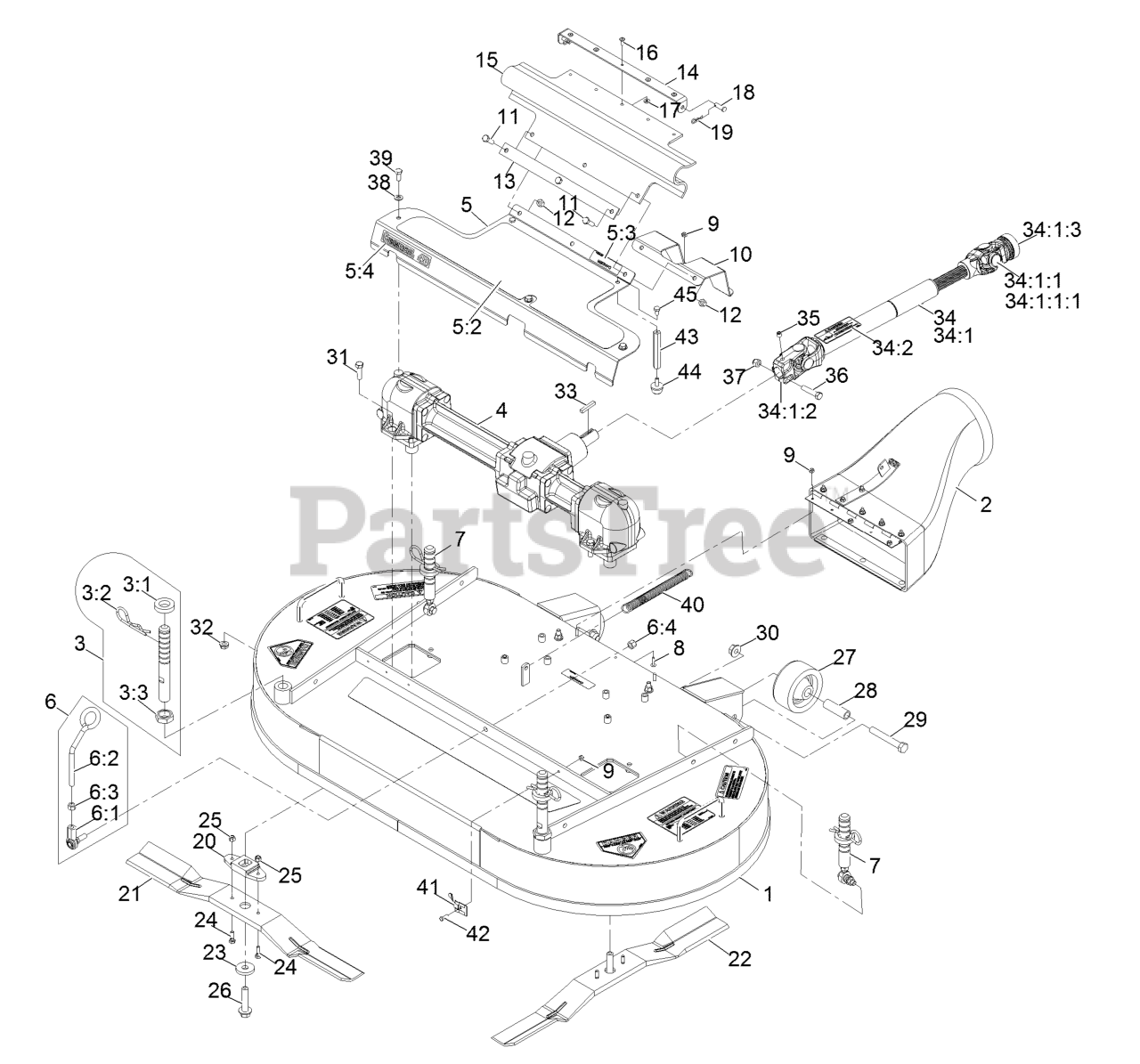

NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH640

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-4372

DECK DECAL AND BAFFLE ASM
(Superseded to 142-2922)

$1710.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9487

DISCHARGE TUBE ASM

$327.99

$

In Stock, only 1 left!

0

3

Exmark 109-0321

FRONT DECK HEIGHT ADJUST

$96.99

$

In Stock, only 1 left!

0

3:1

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

3:2

Exmark 103-7353

PIN-CUT HEIGHT

$11.99

$

In Stock, Qty 14

0

3:3

Exmark 103-8496

NUT-JAM

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 103-3387

GEAR BOX ASM

$3282.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9496

ASM,GEARBOX COVER 48 W/DE

$230.99

$

Usually ships in 3-6 days

0

5:2

Exmark 103-8629

PAD-ANTI SKID

$27.99

$

Usually ships in 3-6 days

0

5:3

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

5:4

Exmark 1-403131

DECAL,COMMERCIAL 48

$5.99

$

In Stock, Qty 6

0

6

Exmark 103-8363

DECK LATCH ASM

$126.99

$

In Stock, only 2 left!

0

6:1

Exmark 103-7994

BALLJOINT-RH

$42.99

$

Usually ships in 3-6 days

0

6:2

Exmark 103-8307

LATCH-DECK

$42.99

$

In Stock, only 1 left!

0

6:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6:4

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Exmark 109-0323

REAR DECK HEIGHT ADJUST A

$117.99

$

Usually ships in 3-6 days

0

8

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

9

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 116-7843-01

GUARD-DRIVE SHAFT

$45.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Exmark 103-6290-03

STRAP-DRIVE, LINE COVER

$38.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6183-03

BRACKET-GUARD, PTO

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 103-5979

GUARD-PTO

$83.99

$

Usually ships in 3-6 days

0

16

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

19

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Exmark 103-7705

DRIVER-BLADE

$44.99

$

In Stock, Qty 12

0

21

Exmark 103-4208

BLADE,25 INCH RH

$37.99

$

In Stock, Qty 12

0

22

Exmark 103-4207

BLADE,25 INCH LH

$37.99

$

In Stock, Qty 9

0

23

Exmark 30-8770

WASHER

$11.99

$

In Stock, only 2 left!

0

24

Exmark 99-0283

BOLT-SHEAR

$7.99

$

In Stock, Qty 15

0

25

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

26

Exmark 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

27

Exmark 103-3700

ROLLER-DECK

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 103-4230

SPACER-ROLLER

$12.99

$

Usually ships in 3-6 days

0

29

Exmark 325-14

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

30

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

31

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

34

Exmark 103-9485

DRIVE SHAFT ASM

$542.99

$

Usually ships in 3-6 days

0

34:1

Shaft,Drive Telescoping

Note: Not serviced separately

$

$

Not available

34:1:1

Exmark 54-9180

U-JOINT KIT

$63.99

$

Usually ships in 3-6 days

0

34:1:1:1

Exmark 62-3820

FITTING-GREASE

$10.99

$

Usually ships in 3-6 days

0

34:1:2

Exmark 103-9328

YOKE-KEYED

$127.99

$

Usually ships in 3-6 days

0

34:1:3

Exmark 103-9329

YOKE-QUICK DISCONNECT

$272.99

$

Usually ships in 3-6 days

0

34:2

Exmark 103-8425

DECAL-DRIVELINE

$11.99

$

Usually ships in 3-6 days

0

35

Exmark 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

40

Exmark 103-8841

SPRING-EXTENSION

$14.99

$

In Stock, only 1 left!

0

41

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

43

Exmark 103-8610

STAND-OFF

$21.99

$

Usually ships in 3-6 days

0

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0
