NV640KC42 - Exmark 42" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Speed Control Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH640

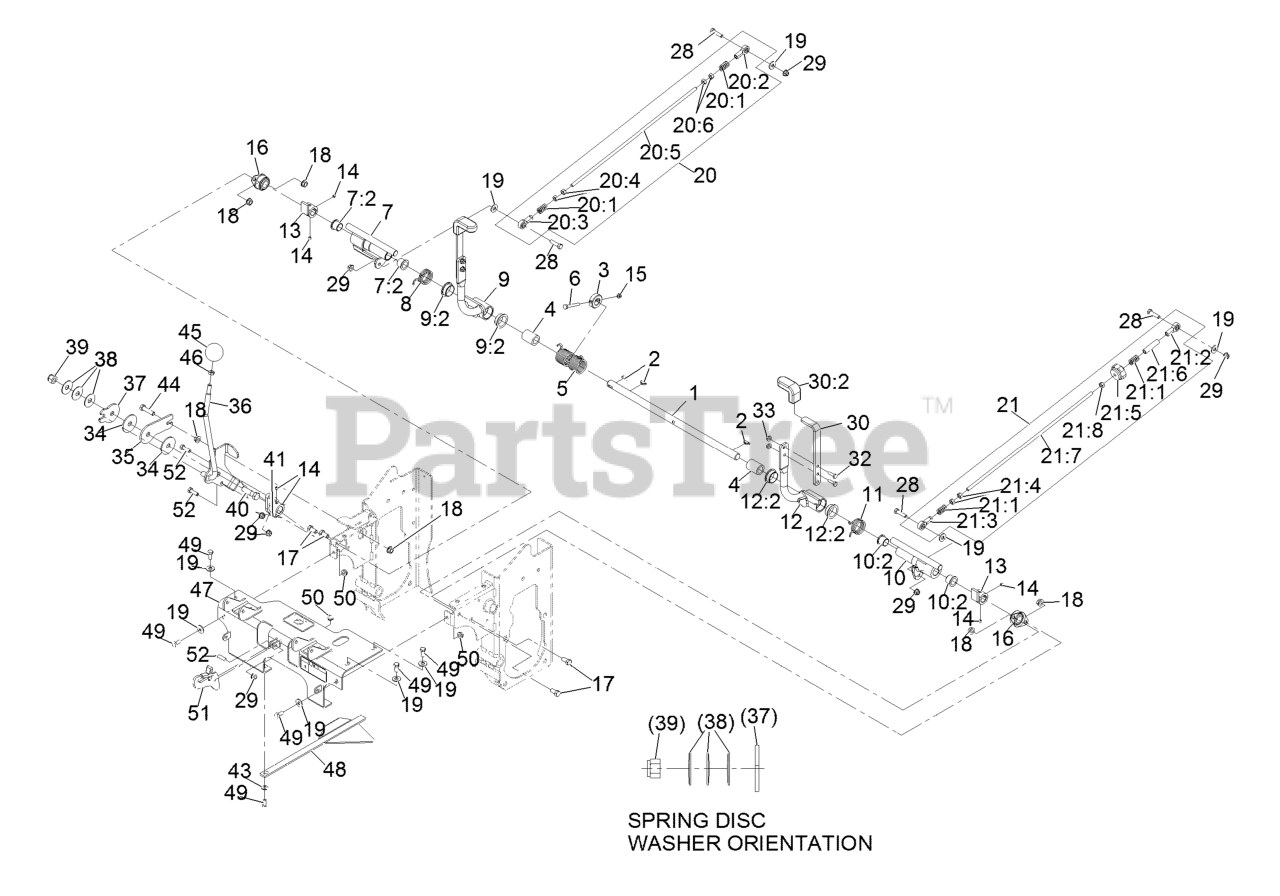

Speed Control Assembly Parts Diagram

  • Title

1

Exmark 116-7856

SHAFT-CONTROL, SPEED

$125.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

3

Exmark 116-7372

STOP-HUB, CENTER

$21.99

$

Usually ships in 3-6 days

0

4

Exmark 116-7414

BUSHING-PLASTIC

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-8475

SPRING-TORSION, DOUBLE

$18.99

$

In Stock, Qty 5

0

6

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Exmark 116-8444

RH CONTROL HUB ASM

$214.99

$

Usually ships in 3-6 days

0

7:2

Exmark 103-4398

BEARING-FLANGE, IGLIDE

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 116-7380

SPRING-TORSION, RH

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 116-7408

RH STEERING HANDLE ASM

$119.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-7422

BEARING-FLANGE, IGLIDE

$8.49

$

Usually ships in 3-6 days

0

10

Exmark 116-7416

LH CONTROL HUB ASM

$214.99

$

Usually ships in 3-6 days

0

10:2

Exmark 103-4398

BEARING-FLANGE, IGLIDE

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 116-7381

SPRING-TORSION, LH

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 116-7421

LH STEERING HANDLE ASM

$119.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-7422

BEARING-FLANGE, IGLIDE

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 103-4342

HUB-SPEED CONTROL

$47.99

$

Usually ships in 3-6 days

0

14

Exmark 108-0989

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

17

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

18

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 116-9667

RH PUMP LINKAGE ASM

$84.99

$

Usually ships in 3-6 days

0

20:1

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

20:2

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

20:3

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

20:4

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

20:5

Exmark 116-7492

ROD-LINKAGE, STEERING

$19.99

$

Usually ships in 3-6 days

0

20:6

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

21

Exmark 116-9668

LH PUMP LINKAGE ASM

$100.99

$

Usually ships in 3-6 days

0

21:1

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

21:2

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

21:3

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

21:4

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

21:5

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

21:6

Exmark 103-5945

SPACER

$13.99

$

Usually ships in 3-6 days

0

21:7

Exmark 116-7492

ROD-LINKAGE, STEERING

$19.99

$

Usually ships in 3-6 days

0

21:8

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

28

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

30

Exmark 116-9246

HANDLE ASM

$41.99

$

Usually ships in 3-6 days

0

30:2

Exmark 103-5994

GRIP-HANDLE, STEERING

$13.99

$

In Stock, only 3 left!

0

32

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Exmark 103-5009

DISC-FRICTION

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 116-7846

PLATE-FRICTION, SPEED CON

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 116-7845

LEVER-SPEED CONTROL

$79.99

$

Usually ships in 3-6 days

0

37

Exmark 116-7849

PLATE-FRICTION, SPEED CON

$8.99

$

Usually ships in 3-6 days

0

38

Exmark 103-5018

WASHER-DISC, SPRING

$12.99

$

Usually ships in 3-6 days

0

39

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-7848

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 116-7859

HUB-CONTROL, SPEED

$55.99

$

Usually ships in 3-6 days

0

43

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 103-4397

KNOB-BALL, SPEED CONTROL

$12.99

$

Usually ships in 3-6 days

0

46

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

47

Exmark 116-7384

CONSOLE ASM

$169.99

$

Usually ships in 3-6 days

0

48

Exmark 103-5993-03

GUIDE-PLENUM

$74.99

$

Usually ships in 3-6 days

0

49

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

50

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-8494

HOOK

$58.99

$

Usually ships in 3-6 days

0

52

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
