NV640KC42 - Exmark 42" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Fuel Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH640

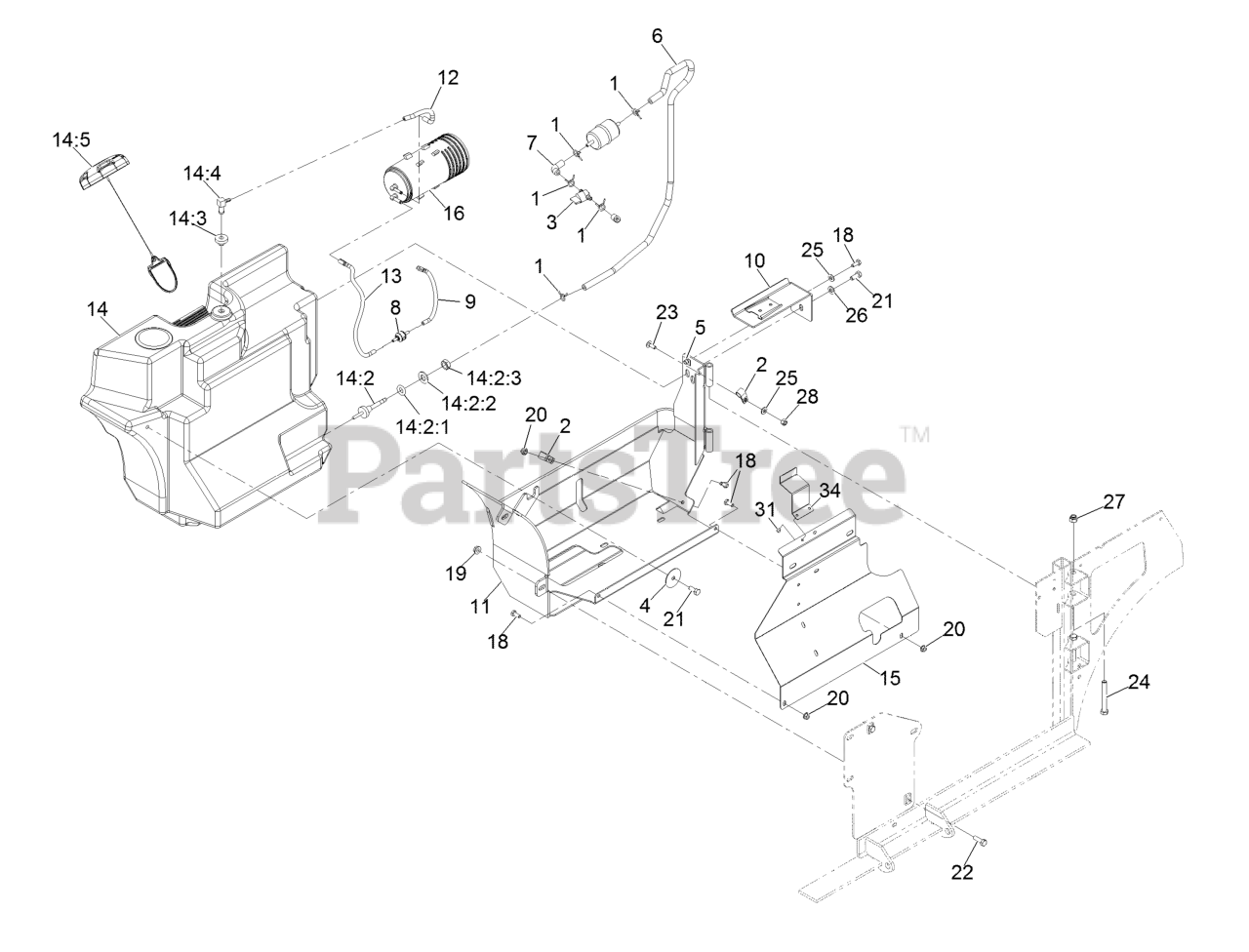

Fuel Assembly Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

4

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

5

Exmark 10706-9

Nut-Retainer-Panel 1/4-

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-0284

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

8

Exmark 115-7868

133-8499
(Superseded to 133-8499)

$15.99

$

In Stock, only 2 left!

0

9

Exmark 116-2619

HOSE-VENT, FORMED

$8.49

$

Usually ships in 3-6 days

0

10

Exmark 116-2847-03

CANISTER BRACKET ASM

$59.99

$

Usually ships in 3-6 days

0

11

Exmark 116-2848-03

TANK FRAME ASM

$348.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2966

HOSE-VENT, FORMED

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 116-2967

HOSE-VENT, FORMED

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 116-8365

FUEL TANK ASM

$620.99

$

Usually ships in 3-6 days

0

14:2

Exmark 103-6057

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$49.99

$

Usually ships in 3-6 days

0

14:2:1

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

14:2:2

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14:2:3

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

14:3

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

14:4

Exmark 100-1596

104-5228
(Superseded to 104-5228)

$18.99

$

Usually ships in 3-6 days

0

14:5

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, Qty 6

0

15

Exmark 116-7928-03

PANEL-TANK SHIELD

$71.99

$

Usually ships in 3-6 days

0

16

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Exmark 322-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 20+

0

22

Exmark 322-5

SCREW-HH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

24

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

25

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Exmark 116-4037-03

BRACKET-SHIELD, TANK

$13.99

$

Usually ships in 3-6 days

0
