NV640KC42 - Exmark 42" Navigator Front Mount Mower, Kohler CH640 (SN: 313000000 - 313999999) (2013) Complete Blower Assembly No. 116-9649 Parts Diagram

42" Navigator Front Mount Mower, Kohler CH640

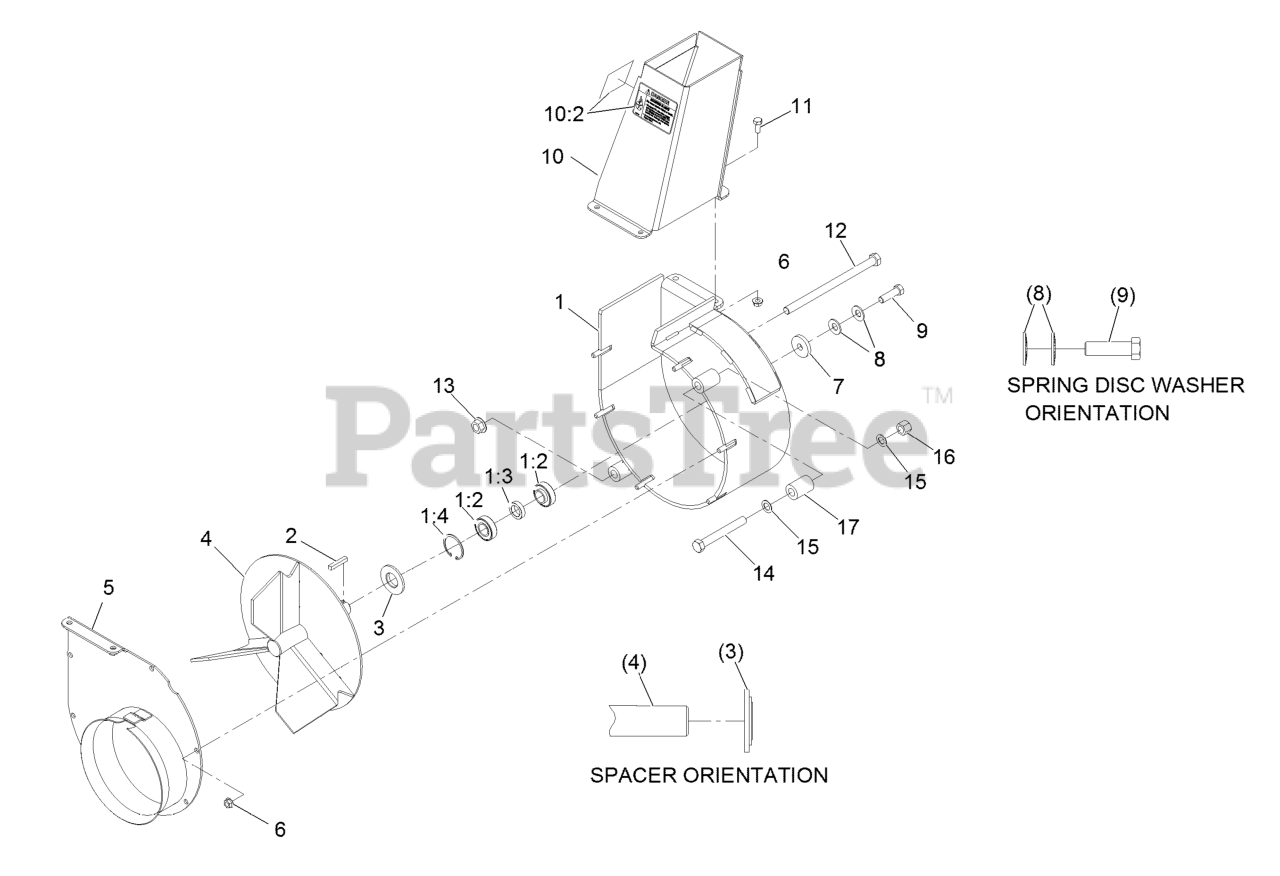

Complete Blower Assembly No. 116-9649 Parts Diagram

  • Title

1

Exmark 116-9648

HOUSING ASM

$739.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-3540

BEARING-BALL

$68.99

$

In Stock, only 2 left!

0

1:3

Exmark 103-4921

SPACER-BEARING

$15.99

$

In Stock, only 1 left!

0

1:4

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

2

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

3

Exmark 103-3894

SPACER-BLOWER

$28.99

$

In Stock, only 1 left!

0

4

Exmark 103-5194

IMPELLER-3 BLADE

$403.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3370-03

COVER-BLOWER

$348.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

8

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

9

Exmark 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

10

Exmark 103-9474

DISCHARGE CHUTE ASM

$284.99

$

Usually ships in 3-6 days

0

10:2

Exmark 109-7318

DECAL-DANGER IMPELLER

$13.99

$

Usually ships in 3-6 days

0

11

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

12

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

13

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

14

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

15

Exmark 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 103-6999

SPACER-MOUNT

$19.99

$

Usually ships in 3-6 days

0
