NV27KC - Exmark Navigator Front Mount Mower, 27hp Kohler (SN: 920000 - 999999) (2011) Park Brake Assembly Parts Diagram

Navigator Front Mount Mower, 27hp Kohler

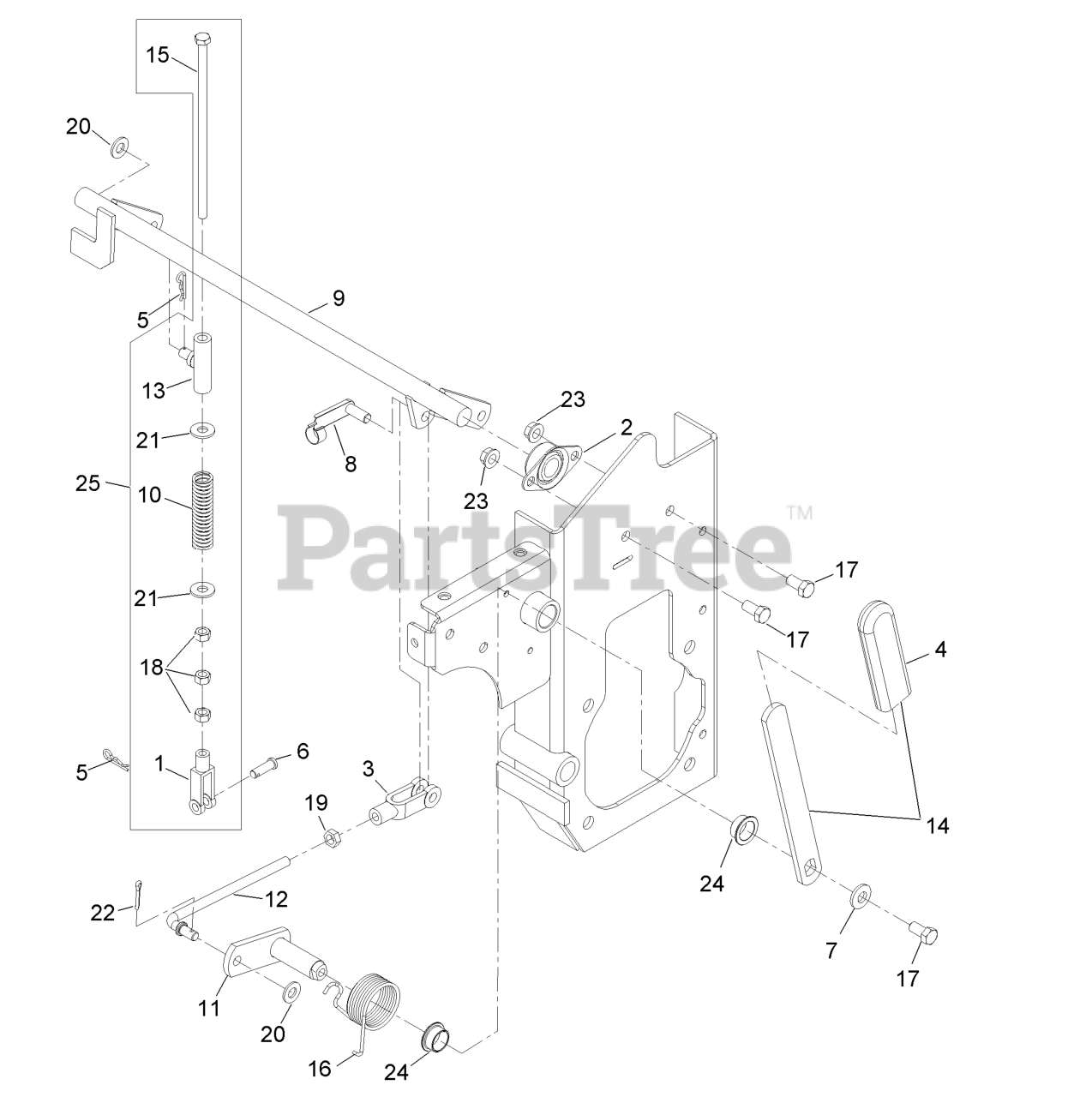

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

2

Exmark 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 3 left!

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

4

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

5

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

6

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.99

$

In Stock, only 1 left!

0

9

Exmark 103-4383-03

WLD, BRAKESHAFT

$

$

Not available

10

Exmark 103-4388

SPRING,COMPRESSION

$

$

Not available

11

Exmark 103-4390

WLD,BRAKE PIVOT (PLATED)

$80.99

$

Usually ships in 3-6 days

0

12

Exmark 103-4399

ROD,LINKAGE BRAKE (PLATED

$

$

Not available

13

Exmark 103-6576

WLD,SWIVEL BRAKE (PLATED)

$

$

Not available

14

Exmark 103-9469

PARK BRAKE HANDLE ASM

$49.99

$

Usually ships in 3-6 days

0

15

Exmark 103-7377

SCREW-HH

$

$

Not available

16

Exmark 103-9915

SPRING,TORSION RH

$

$

Not available

17

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

18

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

25

Exmark 109-0714

ASM,BRAKE LINKAGE

$

$

Not available
