NV27KC - Exmark Navigator Front Mount Mower, 27hp Kohler (SN: 920000 - 999999) (2011) Hopper Assembly Pg2 Parts Diagram

Navigator Front Mount Mower, 27hp Kohler

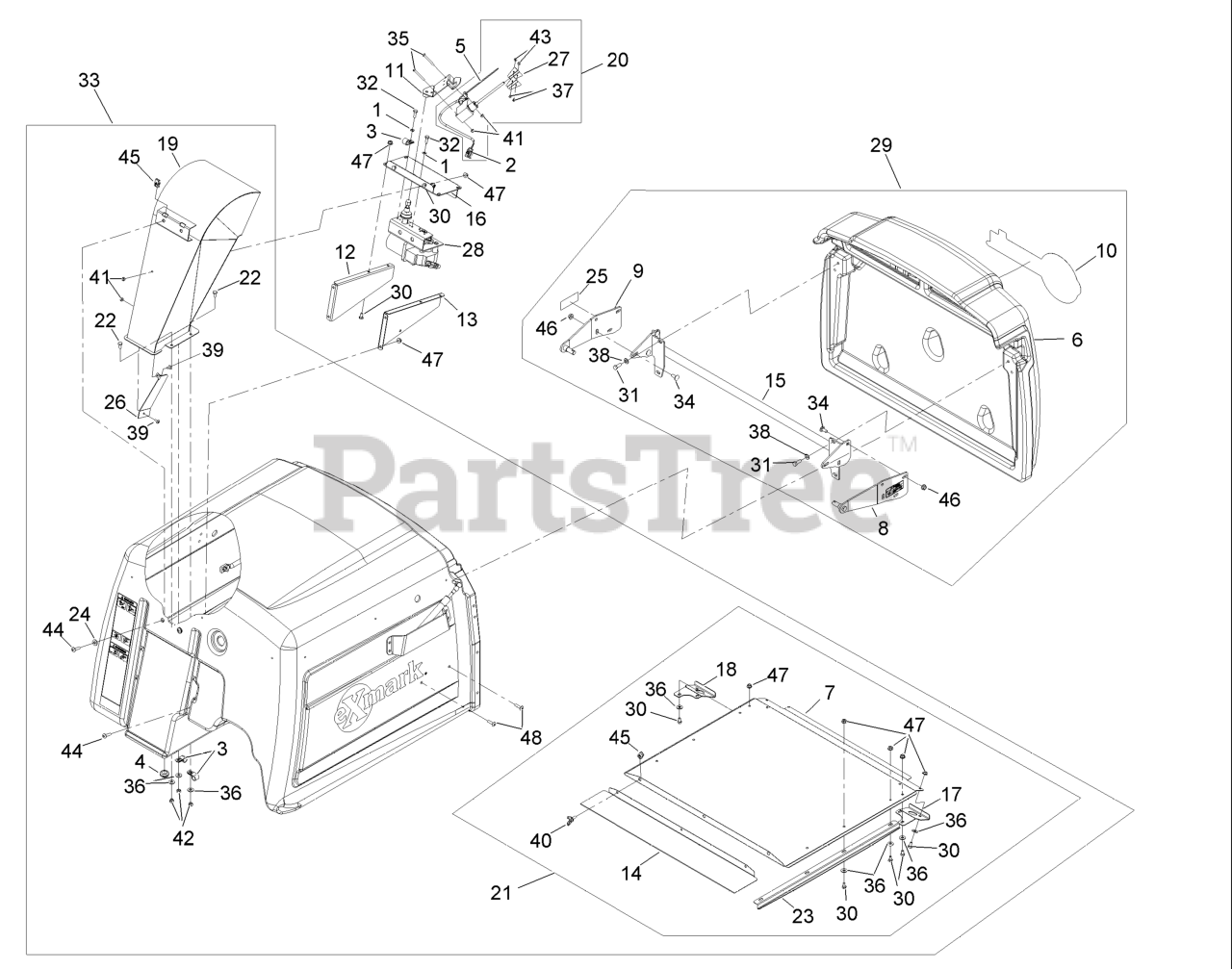

Hopper Assembly Pg2 Parts Diagram

  • Title

1

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

2

Exmark 109-3854

FILL SENSOR WIRE KIT

$169.99

$

Usually ships in 3-6 days

0

3

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

4

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

5

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

6

Exmark 109-3955

DOOR,HOPPER

$592.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5745-03

PANEL-SCREEN, HOPPER

$367.99

$

Usually ships in 3-6 days

0

8

Exmark 109-4253

LH DOOR PIVOT ASM

$94.99

$

Usually ships in 3-6 days

0

9

Exmark 109-4254

RH DOOR PIVOT ASM

$94.99

$

In Stock, only 1 left!

0

10

Exmark 103-6024

DECAL,EXMARK LOGO

$86.99

$

Usually ships in 3-6 days

0

11

Exmark 109-3648

MOUNT-SWITCH

$76.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6067-03

BRACKET-DRIVE MOTOR, LH

$33.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6068-03

BRACKET-DRIVE MOTOR, RH

$33.99

$

Usually ships in 3-6 days

0

14

Exmark 103-7048-03

PANEL-SCREEN, REMOVABLE

$139.99

$

Usually ships in 3-6 days

0

15

Exmark 109-4153-03

SUPPORT-DOOR

$153.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7085-03

PLATE-SWITCH

$36.99

$

Usually ships in 3-6 days

0

17

Exmark 103-7098-03

HANDLE-SCREEN, LH

$28.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7099-03

HANDLE-SCREEN, RH

$28.99

$

Usually ships in 3-6 days

0

19

Exmark 109-3650-03

DIFFUSER

$383.99

$

Usually ships in 3-6 days

0

20

Exmark 103-9466

ASM,FILL SENSOR

$565.99

$

Usually ships in 3-6 days

0

21

Exmark 109-0717

HOPPER SCREEN ASM

$441.99

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-8203-03

GUIDE-SCREEN

$29.99

$

Usually ships in 3-6 days

0

24

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 11

0

25

Exmark 103-8444

DECAL-PINCH POINT

$8.99

$

Usually ships in 3-6 days

0

26

Exmark 103-8680

DEFLECTOR-DISCHARGE CHUTE

$21.99

$

Usually ships in 3-6 days

0

27

Exmark 103-8789

FLAG- SENSOR, FILL

$14.99

$

Usually ships in 3-6 days

0

28

Exmark 109-3853

KIT,FILL SENSOR MOTOR

$829.99

$

Usually ships in 3-6 days

0

29

Exmark 103-9456

ASM,DOOR HOPPER

$809.99

$

Usually ships in 3-6 days

0

30

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

31

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 103-9457

ASM,HOPPER

Note: Reference Hopper Assembly Pg 1 for remainder of items included in assembly.

$3234.99

$

Usually ships in 3-6 days

0

34

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3250-48

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

36

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

37

Exmark 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 5

0

40

Exmark 109-1063

SCREW-WING

$5.49

$

Usually ships in 3-6 days

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

43

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 6

0

44

Exmark 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

45

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

48

Exmark 32122-42

SCREW

$1.99

$

Usually ships in 3-6 days

0
