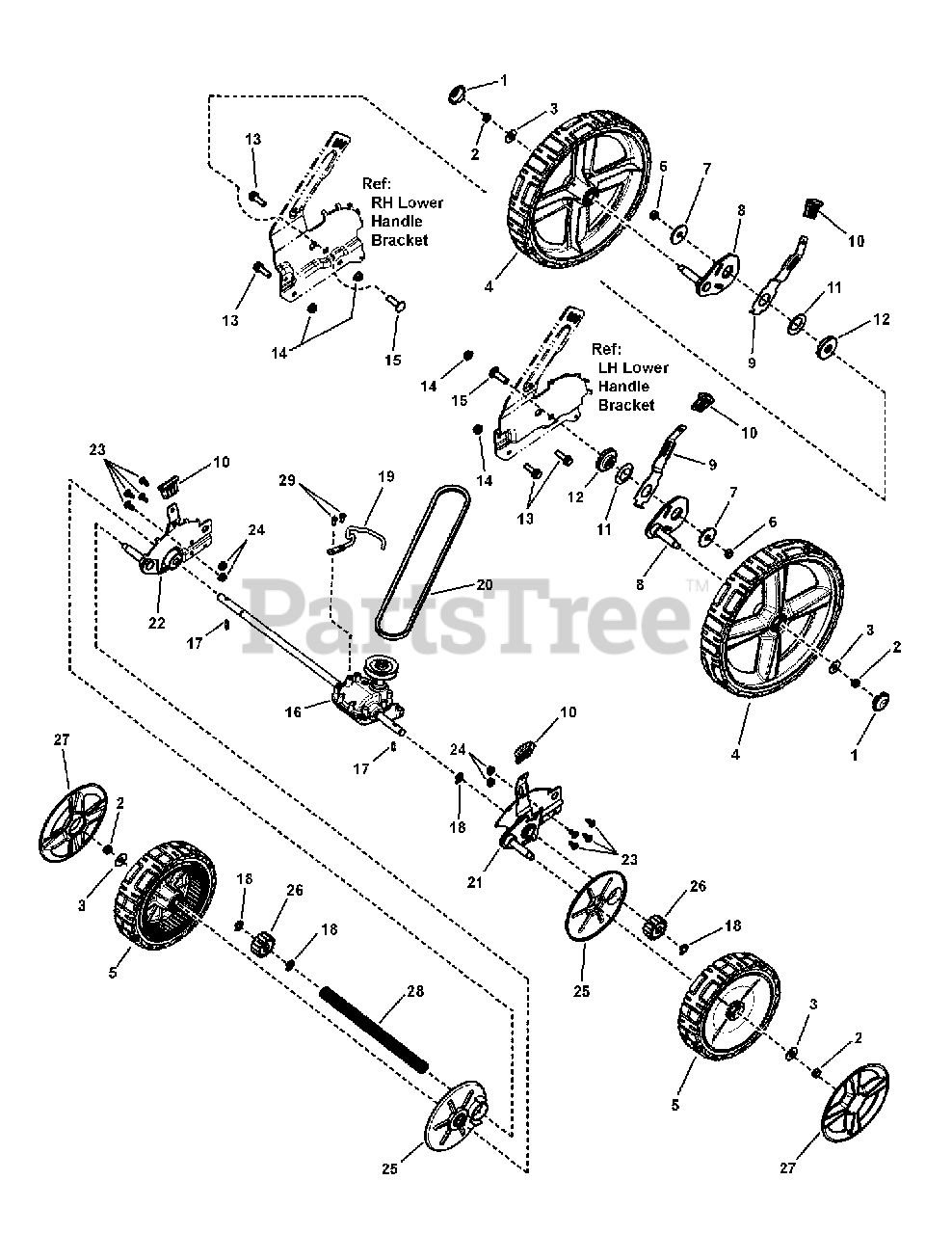

NSPV 2270HW (7800755) - Snapper 22" Walk-Behind Mower, 7hp Transmission & Wheels Group Parts Diagram

22" Walk-Behind Mower, 7hp

Transmission & Wheels Group Parts Diagram

  • Title

1

Snapper 7101393

HUBCAP, 12" Wheel, Snapper Cool Gray
(Superseded to 7101393YP)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

3

Snapper 722604

WASHER, 1" O.D. x .387 I.D., Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7104181

ASSEMBLY, Wheel, 12" x 2" w/Snapper Tread, Cool Gray
(Superseded to 7105710YP)

$79.99

$

Usually ships in 2-12 days

0

5

Snapper 7500542

ASSEMBLY, Wheel, 8" x 2" Drive w/Snapper Tread, Charcoal Gray
(Superseded to 7500542YP)

Note: (incl. two 7101380 Ball Bearings)

$35.99

$

In Stock, only 2 left!

0

6

Snapper 1960251

JAM NUT, 3/8-16 Hex Center Lock
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

7

Snapper 7091331

WASHER, 13/32 x 1-1/2" x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7501639

ASSEMBLY, Rear Wheel Bracket, Hi-Wheel (staked)
(Superseded to 7501639YP)

$

$

Not available

9

Snapper 7103301

LEVER, Front, Height-Of-Cut, 22"
(Superseded to 7105156YP)

$27.99

$

Usually ships in 2-12 days

0

10

Snapper 7103793

GRIP, Height Latch - Black (1.7" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

11

Snapper 722611

WASHER, Belleville, 1.01-1.64
(Superseded to 17X178MA)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7103511

BUSHING, Pivot, Hi-Wheel, Rear
(Superseded to 7103511YP)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Round Head Square Neck Carriage, GR 5 YZ
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

16

Snapper 7103311

TRANSMISSION, Variable Speed, Front Wheel Drive
(Superseded to 7103311YP)

$115.99

$

In Stock, only 2 left!

0

17

Snapper 7101270

DRIVE PIN, 22" WBM
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

18

Snapper 7014341

RETAINING RING
(Superseded to 703976)

Note: (Waldes No. 5133-50 or equiv.)

$4.49

$

In Stock, Qty 10

0

19

Snapper 7103304

GUIDE, Belt, FWD
(Superseded to 7103304YP)

$28.99

$

Usually ships in 2-12 days

0

20

Snapper 7103362

BELT, 3L, Traction Drive, 22" WBM, FWD
(Superseded to 7103362YP)

Note: (3L Sect., 32.40 Effective Length)

$22.99

$

In Stock, only 2 left!

0

21

Snapper 7600105

ASSEMBLY, Height-of-Cut, LF, 22" WBM, Propelled
(Superseded to 7600105YP)

$82.99

$

In Stock, only 1 left!

0

22

Snapper 7600104

ASSEMBLY, Height-of-Cut, RF, 22" WBM, Propelled
(Superseded to 7600104YP)

$

$

Not available

23

Snapper 7900067

SCREW, 1/4-20 x .550" Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

25

Snapper 7101402

SHIELD, Dust, 22" WBM, Front Wheel Drive
(Superseded to 7101402YP)

$7.49

$

In Stock, only 2 left!

0

26

Snapper 7101207

GEAR, Pinion, 22" WBM, Front Wheel Drive
(Superseded to 7101207YP)

$8.49

$

In Stock, only 2 left!

0

27

Snapper 7101350

HUBCAP, 8" & 9" Spoked Wheel, Snapper Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 19

0

28

Snapper 727782

SHIELD, Axle
(Superseded to 043649MA)

$5.99

$

Usually ships in 2-12 days

0

29

Snapper 7900055

SCREW, #10-14 x 1/2" Hex Washer Self-Tap, Plastite
(Superseded to 7900055YP)

$4.49

$

In Stock, only 2 left!

0
