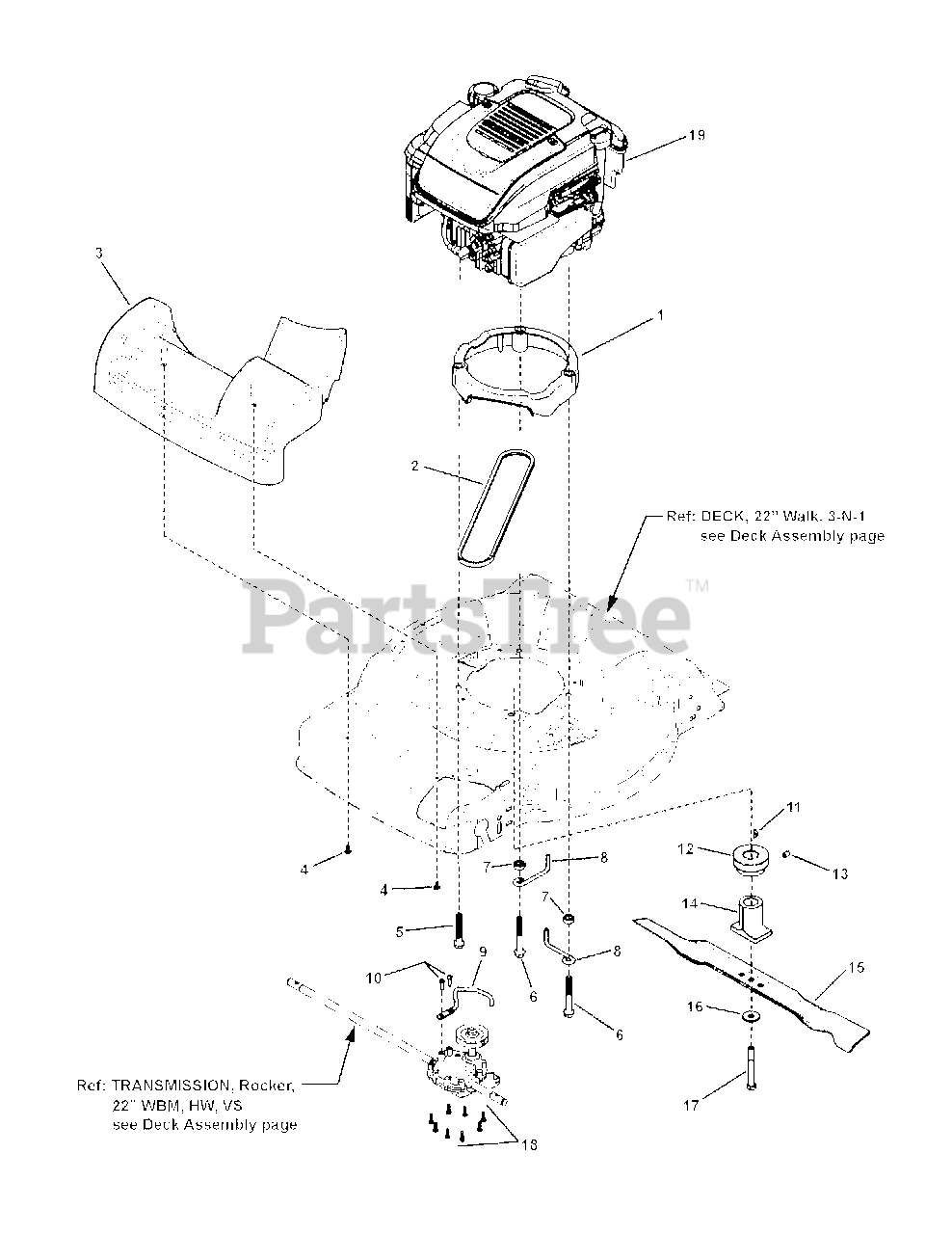

NSPV 2265HW (7800420) - Snapper 22" Walk-Behind Mower, 6.75hp Engine & Blade Assembly Parts Diagram

22" Walk-Behind Mower, 6.75hp

Engine & Blade Assembly Parts Diagram

  • Title

1

Snapper 7101449

ASSEMBLY, Engine Spacer, 22" WBM, Self-Propelled
(Superseded to 7101449YP)

Note: (includes 7101209 (spacer) & 7101448 (3) (bushings))

$64.99

$

Usually ships in 2-12 days

0

2

Snapper 7100913

BELT, Traction Drive, 22 Pivot Handle
(Superseded to 7100913YP)

Note: (3L Section; 31.94 effective length)

$13.99

$

In Stock, only 1 left!

0

3

Snapper 7101195

FRONT COVER, Deck, 22" Front Wheel Drive
(Superseded to 7101195YP)

$82.99

$

Usually ships in 2-12 days

0

4

Snapper 7900018

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 720351

BOLT, 3/8-16 NS x 2-1/2" Hex Head
(Superseded to 025X11MA)

$6.99

$

Usually ships in 2-12 days

0

6

Snapper 7101451

SCREW, 3/8-16 x 3" Hex Washer Self-Tap
(Superseded to 7101451YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7101302

SPACER, BELT GUIDE, 22" VS
(Superseded to 7101302YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7101024

BELT GUIDE, Engine, 22" VS
(Superseded to 7101024YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7101009

BELT GUIDE, Transmission, 22 WBM
(Superseded to 7101009YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7091195

SCREW, #10-16 x 3/4 Pan Head Self-Tap, Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7091214

KEY, #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

12

Snapper 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

13

Snapper 7092086

SET SCREW 5/16-18 x 1/2 Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7100740

BLADE HUB, 22" Deck, Self Propelled
(Superseded to 7100740YP)

$15.99

$

Usually ships in 2-12 days

0

15

Snapper 7100851

BLADE, 22", Walk Mower
(Superseded to 7100851AYP)

$19.99

$

In Stock, only 1 left!

0

16

Snapper 721890

WASHER, .38" I.D. x 1.183 O.D. Bellville
(Superseded to 1101989MA)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 720209

BOLT, 3/8-24 x 3-1/4" Hex Head, GR 8
(Superseded to 01X144MA)

$5.49

$

In Stock, only 3 left!

0

18

Snapper 7900032

SCREW, 7mm x 1 x .550 AB Point
(Superseded to 7900032YP)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 126T02-0675-B3

* ENGINE, B&S, 675 Ser, X-Spec, B3

Note: (used on 7800190 model)

$

$

Currently unavailable

19

Snapper 126L02-0675-F3

* ENGINE, B&S, 675 Ser, X-Spec, F3

Note: (used on 7800230 model)

$

$

Currently unavailable

19

Snapper 126L02-4675-F3

* ENGINE, B&S, 675 Ser, X-Spec, F3

Note: (used on 7800420 model)

$

$

Currently unavailable

19

Snapper 128T02-0740-B3

* ENGINE, B&S, 700 Ser, X-Spec, B3

Note: (used on 7800585 model)

$

$

Not available
