NSPV 2170 (7800589) - Snapper 21" Walk-Behind Mower, 7hp Handles and Controls Parts Diagram

21" Walk-Behind Mower, 7hp

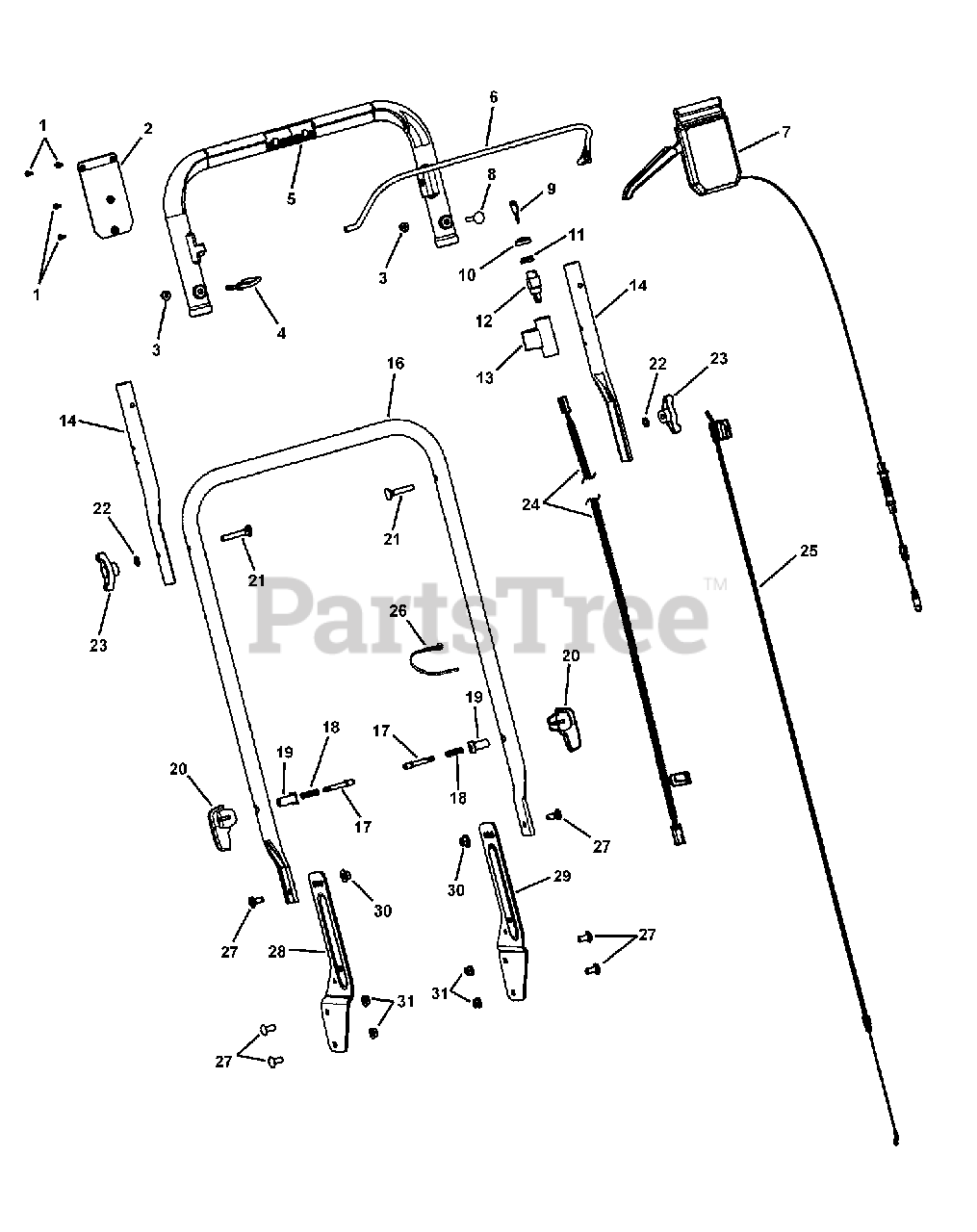

Handles and Controls Parts Diagram

  • Title

1

Snapper 7100225

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7300670A

PLATE, Control Panel- Plastic Handle
(Superseded to 7300670AYP)

$

$

Not available

3

Snapper 2860694

NUT, 1/4-20, Hex Flange Nyloc
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7101410

ROPE GUIDE (1/4-20 thread)
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

5

Snapper 7101312

HANDLE, Plastic Upper, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

6

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

7

Snapper 7101416

ASSY, Control Head, 21 WBM, RD, Snapper (includes cable & lever)
(Superseded to 7101416YP)

$

$

Not available

8

Snapper 7090015

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7011138

KEY, Ignition (Pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

10

Snapper 7100330

CAP, Electric Start
(Superseded to 7100330YP)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper 7100329

NUT, 5/8-32 Electric Start
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

12

Snapper 7028765

SWITCH, E/S (Start/Run)
(Superseded to 690646)

$34.99

$

In Stock, Qty 5

0

13

Snapper 7100328

HOUSING, Snap-On E-Start
(Superseded to 7100328YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7300649BH

HANDLE, Connecting 21/22 WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

16

Snapper 7301189

HANDLE, Lower, 21 WBM, RD
(Superseded to 7301189BHYP)

Note: (Was 7300639BH)

$176.99

$

Usually ships in 2-12 days

0

17

Snapper 7101198

PIN, Handle Adjust
(Superseded to 7101198YP)

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7101200

SPRING, Compression
(Superseded to 7101200YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7101199

BUSHING, Handle Pin
(Superseded to 7101199YP)

$6.99

$

Usually ships in 2-12 days

0

20

Snapper 7101202

KNOB, Quick Release
(Superseded to 7101202YP)

$6.99

$

Usually ships in 2-12 days

0

21

Snapper 7091189

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

22

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7101504

WIRE HARNESS, Snapper, RD 21"
(Superseded to 7101504YP)

$45.99

$

Usually ships in 2-12 days

0

25

Snapper 7101399

CABLE, Bail, 21 WBM, RD, Snapper
(Superseded to 7101399YP)

Note: 44.20 length

$22.99

$

In Stock, only 4 left!

0

25

Snapper 7101400

CABLE, Bail, 21 WBM, RD, Snapper, E/S
(Superseded to 7101400YP)

Note: 40.50 length

$29.99

$

Usually ships in 2-12 days

0

25

Snapper 7102606

CABLE, Bail, 21 WBM, RD, Snapper, E/S
(Superseded to 7102606YP)

Note: 44.20 length

$30.99

$

Usually ships in 2-12 days

0

26

Snapper 7024649

WIRE TIE,11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7091508

BOLT, 5/16-18 x 3/4 Round Head Short Square Neck, GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

28

Snapper 7300567BH

BRACKET, Lower Handle, LH 21 WBM
(Superseded to 7300567BHYP)

$29.99

$

Usually ships in 2-12 days

0

29

Snapper 7300566BH

BRACKET, Lower Handle RH 21 WBM
(Superseded to 7300566BHYP)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

31

Snapper 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
