NSPV 2170 (7800589) - Snapper 21" Walk-Behind Mower, 7hp Engine and Blade Assembly Parts Diagram

21" Walk-Behind Mower, 7hp

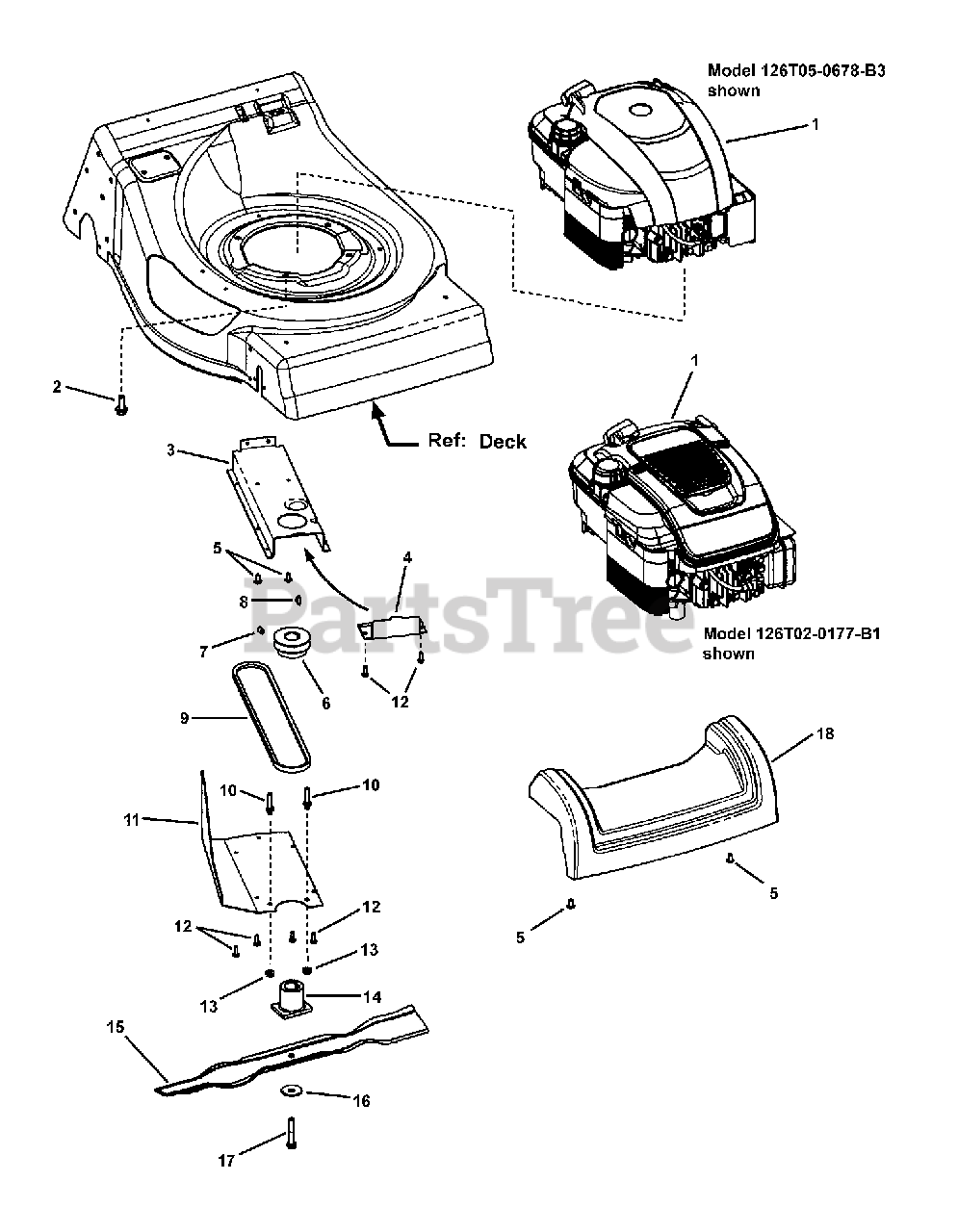

Engine and Blade Assembly Parts Diagram

  • Title

1

Snapper 126T02-0675-B3

* ENGINE, B&S, X-Spec

Note: used on: 7800179

$

$

Currently unavailable

1

Snapper 126T05-0678-B3

* ENGINE, B&S, ES

Note: used on: 7800195

$

$

Currently unavailable

1

Snapper 126T02-0177-B1

* ENGINE, B&S, X-Spec

Note: used on SPV21675FC & SPV21675EFC

$

$

Currently unavailable

1

Snapper 126T05-4678-B3

* ENGINE, B&S, 675 Ser, ES, X

Note: used on: 7800417

$

$

Currently unavailable

1

Snapper 126L02-4675-F3

* ENGINE, B&S, 675 Ser, X

Note: used on: 7800421

$

$

Currently unavailable

1

Snapper 126L05-4678-F3

* ENGINE, B&S, 675 Ser, X

Note: used on: 7800422

$

$

Currently unavailable

1

Snapper 128T02-0740-B3

* ENGINE, B&S, 700 Series, X-Spec

Note: used on: 7800586

$

$

Not available

1

Snapper 128T05-0110-B1

* ENGINE, B&S, 700 Series, Quantum E/S (early models)

Note: used on: 7800587

$

$

Currently unavailable

1

Snapper 128T05-5110-B1

* ENGINE, B&S, 700 Series, Quantum E/S

Note: used on: 7800587

$

$

Currently unavailable

1

Snapper 128L02-0115-F1

* ENGINE, B&S, 700 Series, X-Spec

Note: used on: 7800589

$

$

Currently unavailable

1

Snapper 128L05-0116-F1

* ENGINE, B&S, 700 Series, X-Spec E/S (early models)

Note: used on: 7800590

$

$

Currently unavailable

1

Snapper 128L05-5116-F1

* ENGINE, B&S, 700 Series, X-Spec E/S

Note: used on: 7800590

$

$

Currently unavailable

2

Snapper 7090324

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7300725D

BELT GUARD
(Superseded to 7300725YP)

$16.99

$

In Stock, only 1 left!

0

4

Snapper 7300724D

COVER, Belt
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7091200

SCREW, 1/4-20 x 1/2 Pan Head Self-Tap, Torx
(Superseded to 7900067YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

7

Snapper 7092086

SET SCREW, 5/16-18 x 1/2 Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7091214

KEY, #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7100883

BELT, 3L, Traction Drive, 21 Pivot Handle
(Superseded to 7100883YP)

Note: 3L Sect., 32.86 Effective Length

$20.99

$

In Stock, only 1 left!

0

10

Snapper 7101313

BELT GUIDE, Engine, 21 RD
(Superseded to 7101313YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7300596D

COVER, Belt Guard
(Superseded to 7300596ZMA)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 722864

SCREW, #10 x 1/2, AB, w/Washer
(Superseded to 26X259MA)

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

14

Snapper 7101414

HUB, Blade, 21 WBM, RD, 2 Position
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

15

Snapper 7100242

BLADE, Wave, 21 Steel Deck
(Superseded to 7100242AYP)

$28.99

$

In Stock, only 1 left!

0

16

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7090167

SCREW, 3/8-24 x 2 Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7101271

COVER, Front, 21 WBM, RD
(Superseded to 7101271YP)

$68.99

$

Usually ships in 2-12 days

0
