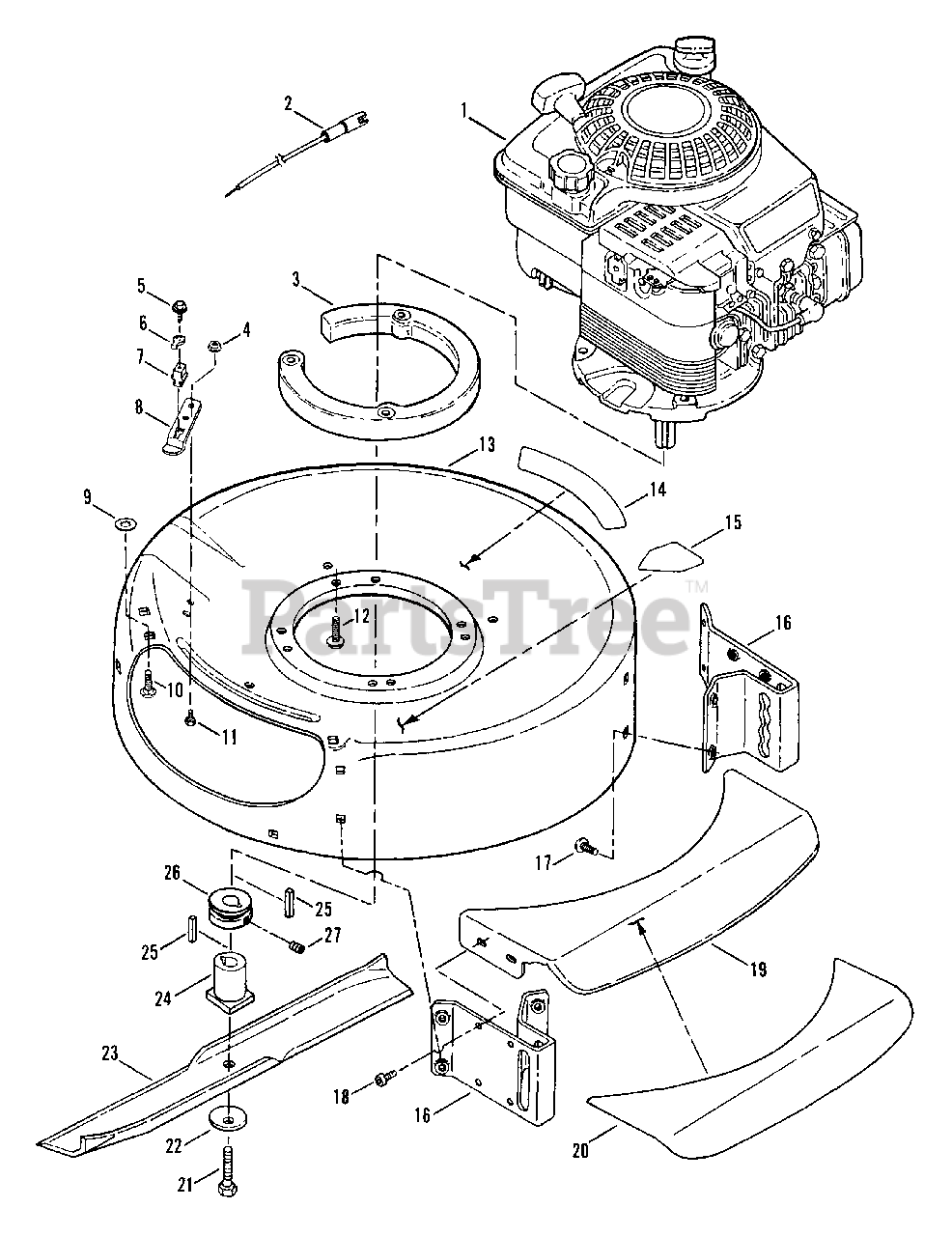

NRP 20500 (80831) - Snapper 20" Walk-Behind Mower, 5hp Engine, Cutting Deck, Blade, Interlock (Self-Propelled Models) Parts Diagram

20" Walk-Behind Mower, 5hp

Engine, Cutting Deck, Blade, Interlock (Self-Propelled Models) Parts Diagram

  • Title

1

ENGINE, 5 HP Brigg's & Stratton XM, Model 12F802-0848-01

$

$

Not available

2

Snapper 7026879

WIRE, Ground
(Superseded to 7026879YP)

$2.99

$

In Stock, only 1 left!

0

3

Snapper 7029736

RING, Engine Mount
(Superseded to 7029736YP)

Note: (For Self-Propelled Model)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

5

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Washer Head
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7090385

WASHER, #8 Tab InternaI Tooth Lock

$

$

Not available

7

Snapper 7012048

INSULATOR
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7034404

SPRING, Interlock
(Superseded to 7034404YP)

$33.99

$

Usually ships in 2-12 days

0

9

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

11

Snapper 7090071

SCREW, 1/4-20 Hex Head Cap, Grade 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Washer Head, Self-Tapping
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 7053821

DECK, 20" Cutting

Note: (Includes items 14 & 15)

$

$

Currently unavailable

14

Snapper 7024379

DECAL - WARNING

$

$

Not available

15

Snapper 7013010

DECAL - DANGER (Keep Hands & Feet Away)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

16

Snapper 7034362

BRACKET, Front Wheels

$

$

Not available

17

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Torx, Self-Tapping
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

19

Snapper 7034363

PLATE, Deck Front
(Superseded to 7034363YP)

$21.99

$

Usually ships in 2-12 days

0

20

Snapper 7029659

DECAL, "Whipper" SNAPPER

$

$

Currently unavailable

21

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

23

Snapper 7017167

BLADE, Mulching

$

$

Not available

24

Snapper 7026189

HUB, Blade
(Superseded to 7026189YP)

$18.99

$

Usually ships in 2-12 days

0

25

Snapper 7010783

KEY, #505 HI-PRO
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7021764

PULLEY, .88 x 2.12" O.D.
(Superseded to 7021764YP)

$54.99

$

Usually ships in 2-12 days

0

27

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available
