NJS 45 (7800235) - John Deere 21" Walk-Behind Mower, CARB (2009) Transmission Parts Diagram

21" Walk-Behind Mower, CARB

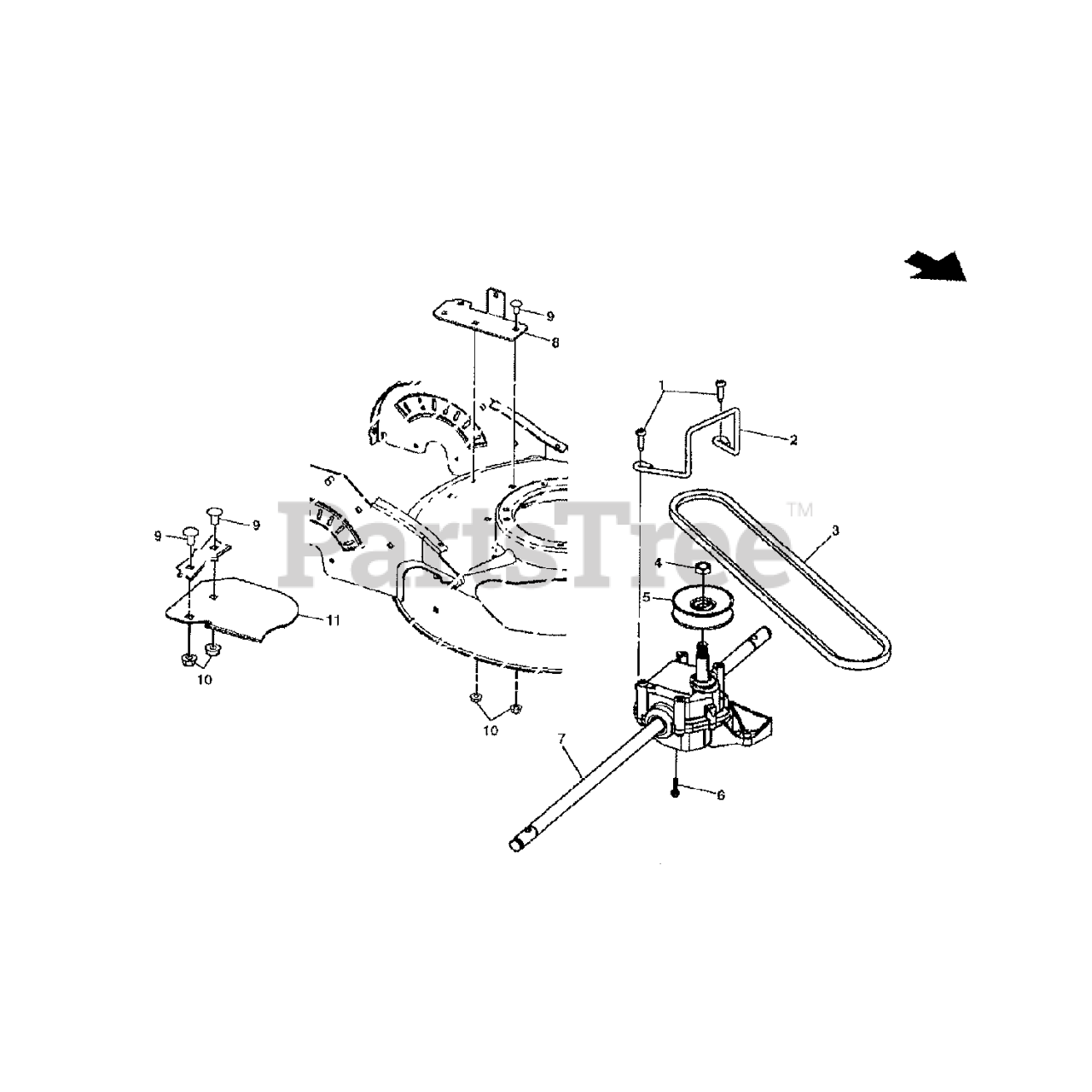

Transmission Parts Diagram

  • Title
1

Murray 7091195

PHST, #10-16 X 3/4, COMBO
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

2

Murray 7100863

BELT GUIDE, TRANSMISSION
(Superseded to 7100863YP)

$6.49

$

Usually ships in 2-12 days

0

3

Murray 7100883

BELT, 3L, TRACTION DRIVE, 21" PIVOT HANDLE
(Superseded to 7100883YP)

$20.99

$

In Stock, only 1 left!

0

4

Murray 1960251

HCLN, JAM, 3/8-16 YZ
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

5

Murray 7100240

PULLEY, TRANS VAR SPD LC WBM
(Superseded to 7100240YP)

$23.99

$

Usually ships in 2-12 days

0

6

Murray 7900032

SCREW, 7MM X 1 X .550, AB POINT
(Superseded to 7900032YP)

$4.49

$

In Stock, only 1 left!

0

7

Murray 7100858

TRANSMISSION, ROCKER, 21" WBM
(Superseded to 7100858YP)

$102.99

$

Usually ships in 2-12 days

0

8

Murray 7300494A

BRACKET, TRANSMISSION MOUNTING
(Superseded to 7300494AYP)

$8.49

$

Usually ships in 2-12 days

0

9

Murray 7090799

RHSSNB, 5/16CX5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

10

Murray 7091601

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 7300013A

SHIELD, DEBRIS
(Superseded to 7300013AYP)

$7.99

$

Usually ships in 2-12 days

0
