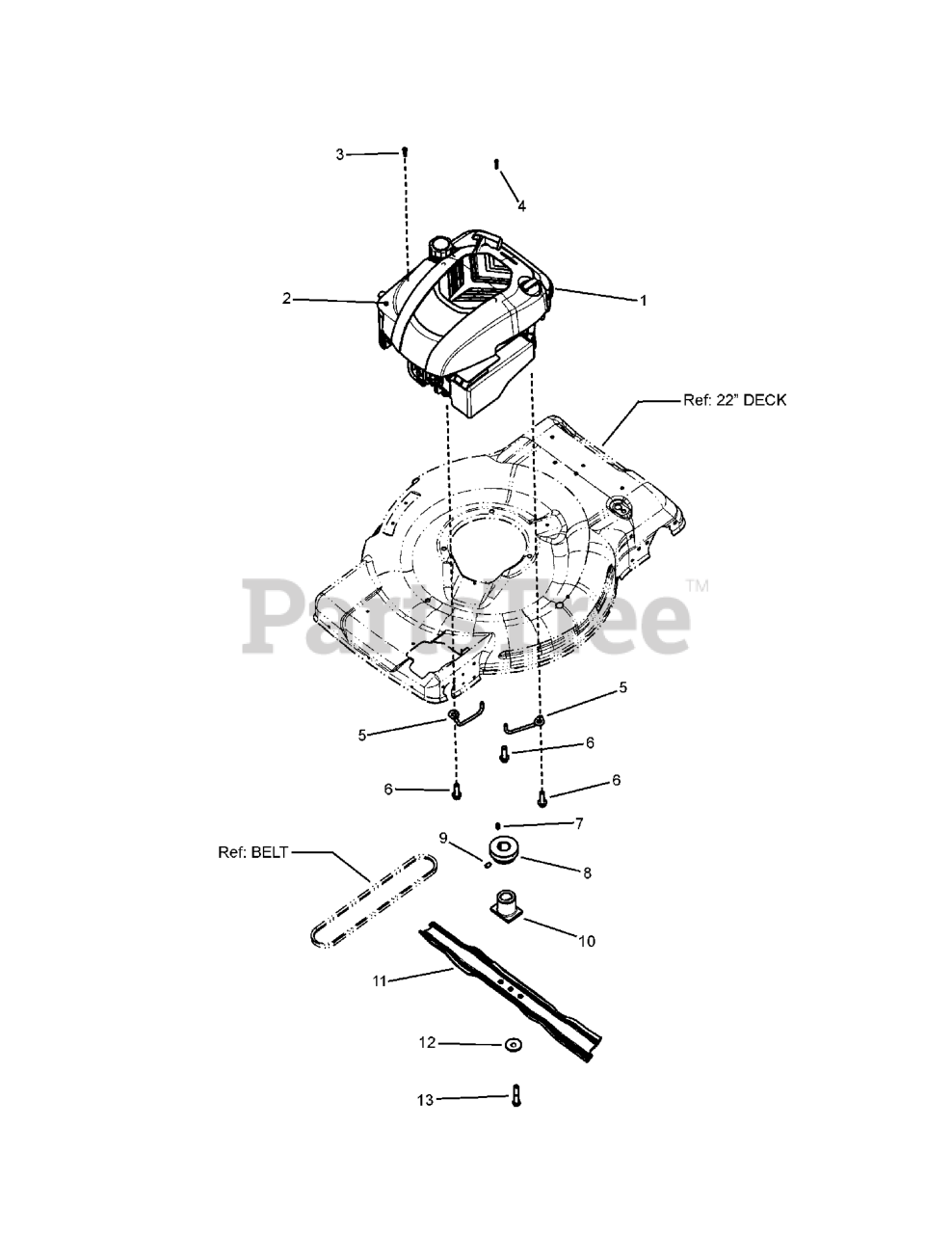

NJS 36 (7800645) - John Deere 22" Walk-Behind Mower, CARB (2010) Group, Engine, 700 Series Quantum, Deere, CA Parts Diagram

22" Walk-Behind Mower, CARB

Group, Engine, 700 Series Quantum, Deere, CA Parts Diagram

  • Title

1

Murray 128L02-0117-F1

ENGINE, 700 SERIES QUANTUM, DEERE

$

$

Currently unavailable

2

Murray 792418

COVER, CONTROL (P-290 BLACK)
(Superseded to 591706)

$69.99

$

In Stock, only 2 left!

0

3

Murray 698589

SCREW, PAN HEAD THREAD ROLLING

$3.99

$

In Stock, Qty 8

0

4

Murray 691138

SCREW, PAN HD CROSS RECESS, TAPPING

$3.99

$

In Stock, Qty 18

0

5

Murray 7103517YP

BELT GUIDE, ENGINE, FWD

$3.49

$

Usually ships in 2-12 days

0

6

Murray 7900072YP

HWST, 3/8-16 X 1.25

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7091214YP

KEY, #HP-506 HI-PRO

$4.99

$

In Stock, only 1 left!

0

8

Murray 7100437YP

PULLEY, ENGINE

$40.99

$

Usually ships in 2-12 days

0

9

Murray 7092086YP

HRSS, 5/16-18X1/2

$4.99

$

Usually ships in 2-12 days

0

10

Murray 7101414YP

HUB, BLADE, 21" WBM, RD, 2 POSITION

$16.99

$

In Stock, only 1 left!

0

11

Murray 7103288YP

BLADE, WAVE, STEEL DECK

$29.99

$

In Stock, Qty 8

0

12

Murray 7012063SM

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

13

Murray 7090167SM

HHCS, 3/8-24X2 GR5

$3.99

$

Usually ships in 2-12 days

0
