NIR5003B (82425) - Snapper 16.5" Rear-Tine Tiller, 5hp SHIFT & DRIVE COMPONENTS Parts Diagram

16.5" Rear-Tine Tiller, 5hp

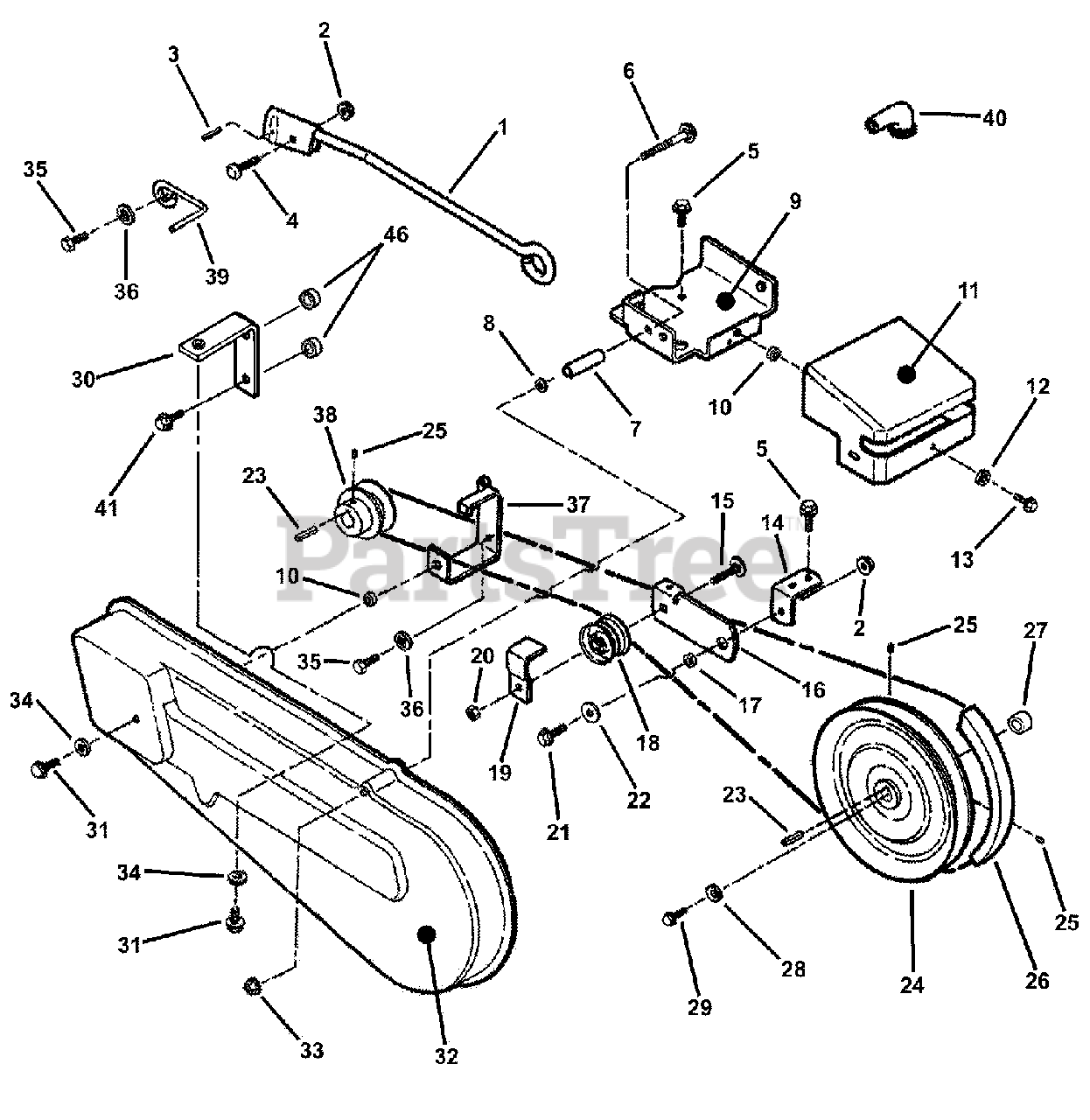

SHIFT & DRIVE COMPONENTS Parts Diagram

  • Title

1

Snapper 7047884

WELDMENT, Shift Lever
(Superseded to 7047884YP)

$51.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7013550

ROLL PIN 3/16 x 1"
(Superseded to 7013550YP)

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7091303

BOLT, 5/16-18 x 3/4" Square Neck Carriage GR5
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 7

0

5

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7090959

BOLT, 5/16-18 x 2-1/2" Short Neck Carriage GR5
(Superseded to 7090959SM)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7023851

TUBE, 3/8" I.D. x 1-7/8" Long
(Superseded to 7023851YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7038646

PLATE, Shift
(Superseded to 7038646YP)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7033349

BUSHING, Rubber
(Superseded to 7033349YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7017018

COVER, Shift
(Superseded to 7017018YP)

$14.99

$

Usually ships in 2-12 days

0

Snapper 7046932

COVER, Shift
(Superseded to 7046932YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

Note: Was 91686

$3.99

$

In Stock, Qty 10

0

14

Snapper 7032843

BRACKET, Idler Pivot (shown)

$

$

Not available

Snapper 7074749

BRACKET, Idler Pivot (not shown)

$

$

Not available

15

Snapper 7090964

BOLT, 3/8-16 x 1-1/2" Flat Head Carriage

$

$

Not available

16

Snapper 7032846

BRACKET, Idler Arm (shown)
(Superseded to 7032846YP)

$23.99

$

Usually ships in 2-12 days

0

Snapper 7074748

BRACKET, Idler Arm (not shown)
(Superseded to 7074748YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7013849

SPACER, 5/16" I.D.
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7010948

PULLEY, Idler ( 2" Outside Diameter)
(Superseded to 1716615SM)

$22.99

$

Usually ships in 2-12 days

0

19

Snapper 7032662

GUIDE, Idler
(Superseded to 7032662YP)

$22.99

$

Usually ships in 2-12 days

0

20

Snapper 7091585

NUT, 3/8-16 Hex Center Lock GR5 or B
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

21

Snapper 7090595

BOLT, 5/16-18 x 5/8" Hex Flange Lock GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

22

Snapper 7016314

WASHER, 11/32" Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

23

Snapper 7012830

KEY, 3/16 Sq. x 3/4" Long
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

24

Snapper 7011194

PULLEY, Driven (9" Outside Dia.)

$

$

Not available

25

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Set
(Superseded to 7090201SM)

$

$

Not available

26

Snapper 7015403

BELT, Drive (4L Kevlar 19.09" effective length)
(Superseded to 7015403YP)

$30.99

$

In Stock, only 1 left!

0

27

Snapper 7023852

SPACER, 5/8" Internal Dia.
(Superseded to 7023852YP)

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7091102

WASHER, 1/4" Belville

$

$

Currently unavailable

29

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 3 left!

0

30

Snapper 7033962

BRACKET, Belt Cover- IRT
(Superseded to 7033962YP)

$11.99

$

Usually ships in 2-12 days

0

31

Snapper 7091946

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7016022

COVER, Belt
(Superseded to 7016022YP)

$39.99

$

Usually ships in 2-12 days

0

33

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

34

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7090322

SCREW, 5/16-24 x 1/2" Hex Head Cap GR5

Note: Was 91685

$2.99

$

In Stock, only 2 left!

0

36

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7032541

GUIDE, Belt

$

$

Not available

38

Snapper 7011809

PULLEY, Engine (2-1/2" Outside Dia.)
(Superseded to 7011809YP)

$37.99

$

Usually ships in 2-12 days

0

39

Snapper 7015226

GUIDE, Belt (Finger)

$

$

Not available

40

Snapper 7011762

BOOT, Spark Plug
(Superseded to 7011762YP)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 7091841

SCREW, 5/16-18 x 1" Hex Washer Self-Tap
(Superseded to 7091841SM)

Note: Was 91742

$3.49

$

Usually ships in 2-12 days

0

* ENGINE, B&S 5 HP Mod 130202-0127-01

$

$

Not available

* ENGINE, B&S 5.5 HP Mod 126432-0036-E1

$

$

Not available

* ENGINE, Honda 5.5 HP Mod GX160K1QX2 Type 553700

$

$

Not available

* ENGINE, B&S 7 HP Mod 120332-0208-E1

$

$

Not available

42

Snapper 7073743

MUFFLER GUARD, 5HP B&S #391237(Euro) not shown

$

$

Currently unavailable

Snapper 7074764

MUFFLER GUARD, 5.5HP B&S (not shown)

$

$

Currently unavailable

43

Snapper 7073801

SCREW, B&S #94810 (Euro) (not shown)

$

$

Not available

44

Snapper 7073802

SCREW, B&S #94887 (Euro) (not shown)

$

$

Not available

45

Snapper 7074765

SCREW, B&S #95259 (Euro) (not shown)

$

$

Currently unavailable

46

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0
