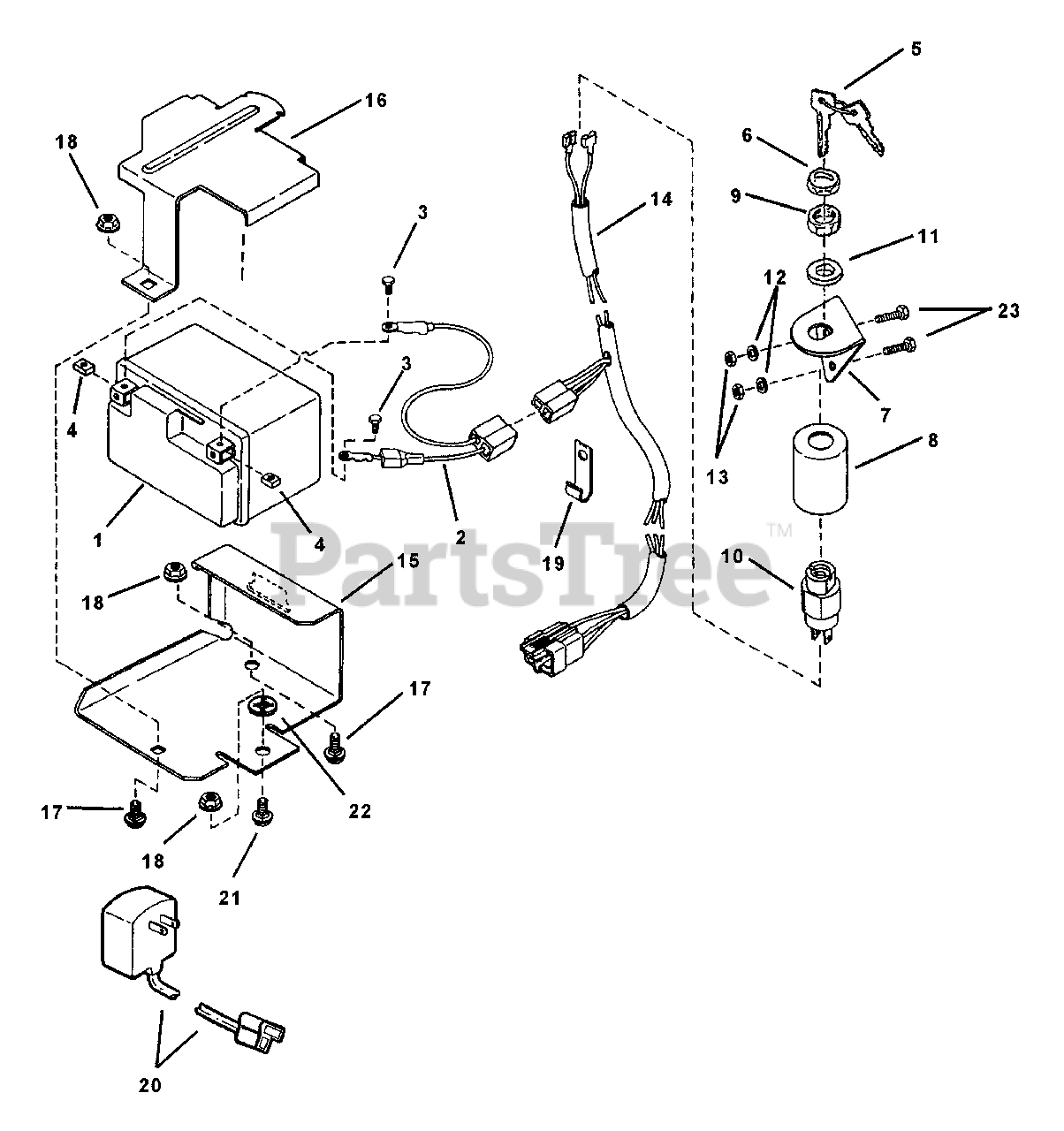

NFRP 216012E (82431) - Snapper 21" Walk-Behind Mower, 6hp Electric Start Components Parts Diagram

21" Walk-Behind Mower, 6hp

Electric Start Components Parts Diagram

  • Title

1

Snapper 7067012

BATTERY, 12 Volt, 35 CCA
(Superseded to 7067012YP)

Note: (Includes Battery & Items 1 Thru 3)

$93.99

$

Usually ships in 2-12 days

0

2

Snapper 7015488

HARNESS, Battery
(Superseded to 7015488YP)

$14.99

$

In Stock, only 1 left!

0

3

Snapper 7043977

SCREW, #10-24 x 1/2 Hex Head Cap
(Superseded to 7043977YP)

$

$

Not available

4

Snapper 7090932

NUT, #10 24 Square
(Superseded to 7090932YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011138

KEY, (Set of Two)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

6

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7034896

BRACKET, Ignition Switch

$

$

Not available

8

Snapper 7029080

COVER, Switch
(Superseded to 7029080YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7012685

NUT, 3/4-20 Hex Lock
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7028765

SWITCH, Ignition
(Superseded to 690646)

$34.99

$

In Stock, Qty 5

0

11

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

13

Snapper 7090095

NUT, 1/4-28 Hex Grade 5 or B
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7029081

HARNESS, Wiring

$

$

Not available

15

Snapper 7032906

BRACKET, Battery
(Superseded to 7032906AYP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7036132

COVER, Battery
(Superseded to 7036132AYP)

$28.99

$

Usually ships in 2-12 days

0

17

Snapper 7090731

BOLT, 5/16-18 x 1/2 Short Nk. Carriage, Gr. 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7012652

CLIP, Wiring
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7061188

CHARGER, Battery (120 Volt - 60 Hertz)
(Superseded to 770625)

Note: Was 60766, note: 18834 Rpl By 206838

$59.99

$

In Stock, only 2 left!

0

20

Snapper 7018977

CHARGER, Battery (230 Volt - 50 Hertz)
(Superseded to 7018977YP)

$76.99

$

In Stock, only 1 left!

0

21

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Nk. Carriage, Gr. 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091025

SCREW, 1/4-28 x 1-3/8 Hex Head Cap, Gr. 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0
