NE 4149 D (139-759-058) - New Englander Lawn Tractor (1989) (R.E. Jarvis) Parts Parts Diagram

Lawn Tractor

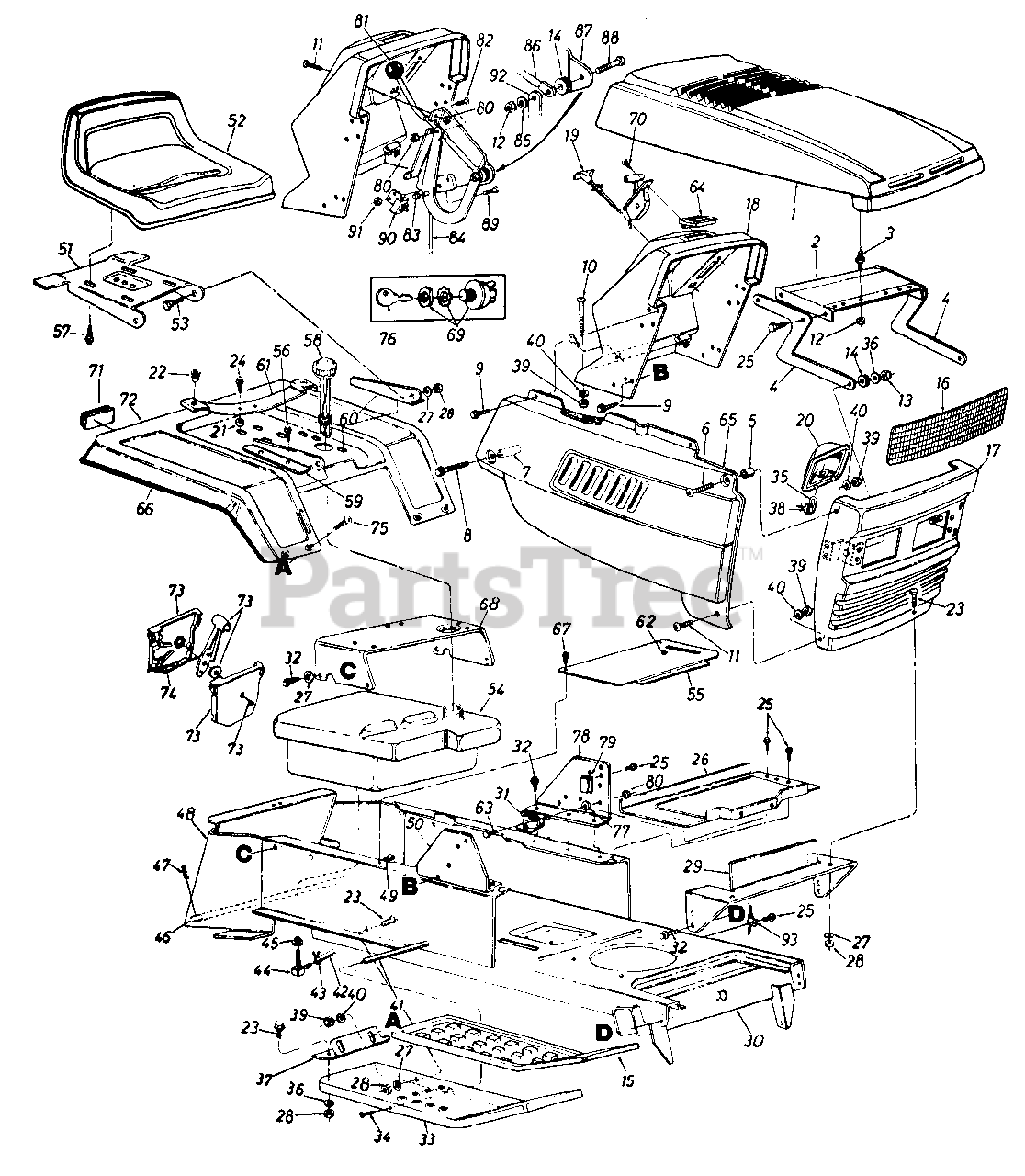

Parts Parts Diagram

  • Title

1

MTD 731-1054

Hood

$

$

Currently unavailable

2

MTD 16903

Hood Plate

$

$

Not available

3

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

4

MTD 17273

Hood Hinge

$

$

Not available

5

MTD 750-0565

Spacer .255" I.D. x .375"

$7.99

$

Usually ships in 3-6 days

0

6

MTD 710-0166

Truss Hd. Mach. Scr. 1/4-20 Thd.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

7

MTD 750-0583

Spacer .26" I.D. x .375"

$

$

Not available

8

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4 -20 x 1 . 75 " Lg .

$6.99

$

In Stock, Qty 13

0

9

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0578

Truss Mach. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

Usually ships in 3-6 days

0

11

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

MTD 712-0107

Hex Patch L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

13

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

14

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

15

MTD 731-1052

Rubber Foot Pad

$

$

Not available

16

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

17

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

18

MTD 731-1046

Dash Ass'y.

$

$

Not available

19

MTD 746-3022B

Choke Control
(Superseded to 946-3022B)

$39.99

$

In Stock, only 4 left!

0

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

21

MTD 750-0706

Spacer.38" I.D.
(Superseded to 950-0706)

$

$

Not available

22

MTD 731-0555A

Grommet

$

$

Not available

23

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0817

Hex Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 13379

Battery Carrier

$

$

Not available

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 15825

Grille Mounting Bracket

$

$

Not available

30

MTD 13820C

Lower Frame Ass'y.

$

$

Not available

31

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

32

MTD 710-0726

Hex Hd. Rolling Scr. 5/16-24 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 16922

Running Board-R.H.

Variations

MTD 16922-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16922-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16922-0629

No Longer Available RUNNING BO - SILVER FLAKE (0629)

$

$

Not available

MTD 16922-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16922-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16922-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16922-0650

No Longer Available RUNNING BO - RED METALLIC (0650)

$

$

Not available

MTD 16922-0660

No Longer Available RUNNING BO - TEAL (0660)

$

$

Not available

MTD 16922-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16922-0665

No Longer Available RUNNING BO - YARDMAN GREEN (0665)

$

$

Not available

MTD 16922-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16922-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16922-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16922-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16922-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16922-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16922-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

MTD 16921

Running Board-L.H.

Note: (Not Shown)

Variations

MTD 16921-0483

No Longer Available RUNNING BO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16921-0498

No Longer Available RUNNING BO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16921-0499

No Longer Available RUNNING BO - CUB BEIGE (0499)

$

$

Not available

MTD 16921-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16921-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16921-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16921-0648

No Longer Available RUNNING BO - TECH GRAY (0648)

$

$

Not available

MTD 16921-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 16921-0662

No Longer Available RUNNING BO - OYSTER GRAY (0662)

$

$

Not available

MTD 16921-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 16921-0667

No Longer Available RUNNING BO - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16921-0674

No Longer Available RUNNING BO - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16921-0686

No Longer Available RUNNING BO - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16921-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 16921-0691

No Longer Available RUNNING BO - BLACK JACK (0691)

$

$

Not available

MTD 16921-0692

No Longer Available RUNNING BO - AGWAY BLUE (0692)

$

$

Not available

MTD 16921-0709

No Longer Available RUNNING BO - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

34

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

35

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

36

MTD 736-0242

Bell-Wash. .34" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

37

MTD 15846

Fender Brkt.-R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt.-L.H.

Note: (Not Shown)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 738-0435

Running Board Rod

$

$

Not available

42

MTD 751-0173

Fuel Line 40" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

43

MTD 726-0207

Hose Clamp 3/8" Lg.

$

$

Not available

44

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

45

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

$2.99

$

In Stock, Qty 20+

0

46

MTD 738-0482

Hitch Rod

$

$

Not available

47

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

48

MTD 13813B

Hitch Plate

Variations

MTD 13813B-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

50

MTD 17293A

Dash Support Brkt.-R.H.
(Superseded to 17293B-0637)

$

$

Not available

51

MTD 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

52

MTD 757-0336

Seat Ass'y.

$

$

Not available

53

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

54

MTD 751-0367

Fuel Tank

$

$

Not available

55

MTD 15932

Transmission Cover Ass'y.

$

$

Currently unavailable

56

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 11

0

57

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 751-0370

Gas Cap w/Gauge

$

$

Not available

59

MTD 15802

Seat Bracket-R.H.

$

$

Not available

60

MTD 15803

Seat Bracket-L.H.

$

$

Not available

61

MTD 732-0431

Seat Spring

$

$

Currently unavailable

62

MTD 731-0405

Snap Bushing

$

$

Not available

63

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

64

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

65

MTD 17458

Side Panel Ass'y.-R.H.
(Superseded to 16725)

Variations

MTD 17458-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17459

Side Panel Ass'y.-L.H.
(Superseded to 17309B)

Variations

MTD 17459-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17459-0499

No Longer Available PANEL - CUB BEIGE (0499)

$

$

Not available

MTD 17459-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17459-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17459-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17459-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17459-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17459-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17459-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17459-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17459-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17459-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 17459-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17459-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

66

MTD 731-0511

Trim Strip-81" Lg.

$3.99

$

Usually ships in 3-6 days

0

67

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

68

MTD 15849

Seat Mounting Channel

$

$

Not available

69

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

70

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

71

MTD 730-0116

Reflector

Note: (Optional)

$

$

Currently unavailable

72

MTD 15886

Rear Fender

Variations

MTD 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

73

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

74

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

75

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

76

MTD 725-0201

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

77

MTD 736-0222

Ext. L-Wash. .44" I.D.

$5.99

$

In Stock, only 3 left!

0

78

MTD 17294A

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

$

$

Not available

79

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

80

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

81

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

82

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

83

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

84

MTD 16985

PTO Rod

$

$

Not available

85

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

86

MTD 16984

PTO Lever

$

$

Not available

87

MTD 12476

Deck Clutch Control Brkt.

$

$

Currently unavailable

88

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

89

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

90

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

91

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

92

MTD 16983

PTO Bracket

$

$

Not available

93

MTD 726-0273

Battery Hose Clamp

$7.49

$

In Stock, only 1 left!

0

MTD 17319

Heat Shield

Note: (Not Shown)

$

$

Not available
