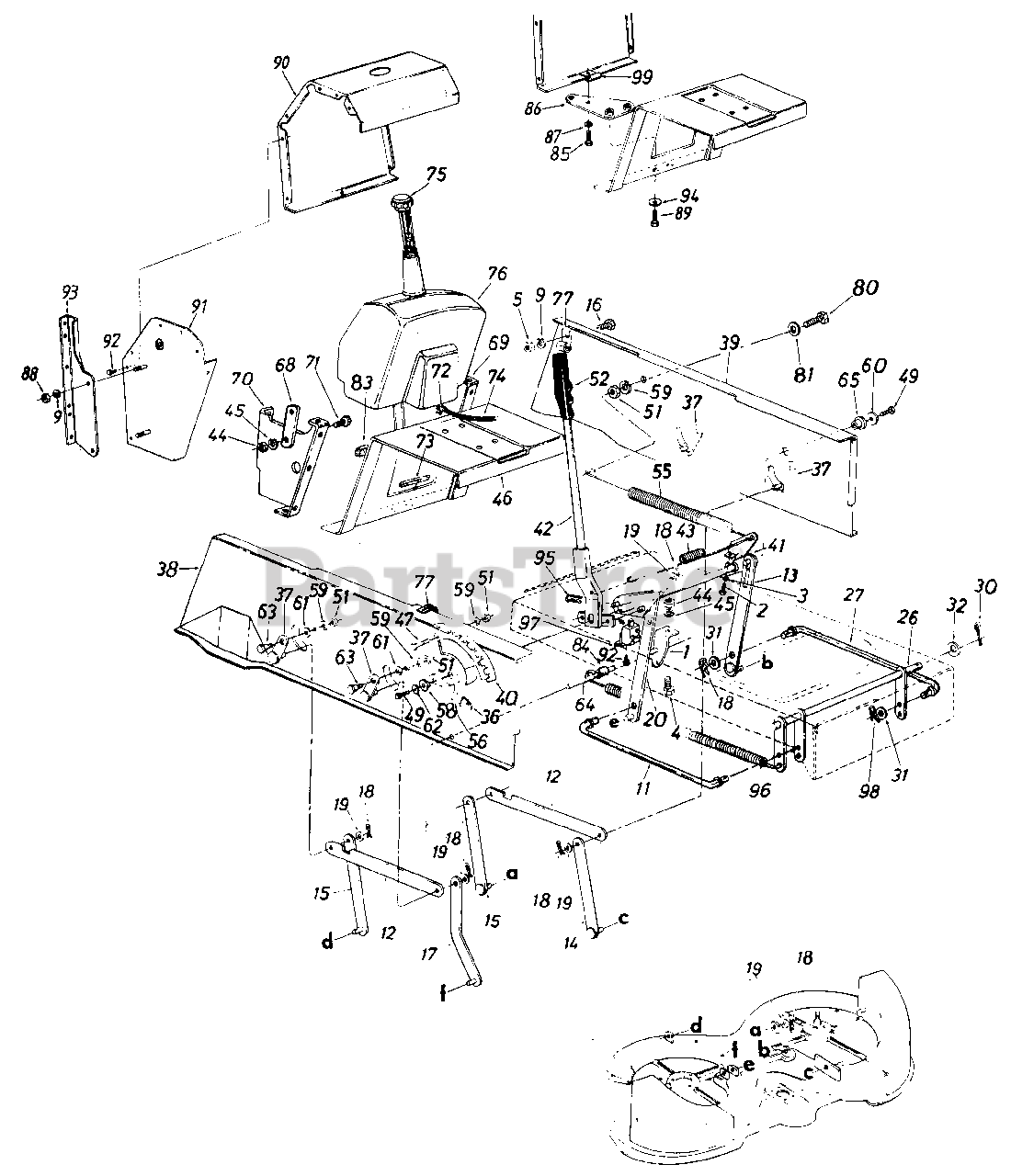

NE 4146D (138-668-058) - New Englander Lawn Tractor (1988) (R.E. Jarvis) 38" Or 40" Decks Parts Diagram

Lawn Tractor

38" Or 40" Decks Parts Diagram

  • Title

1

MTD 16181

Spring Hanger Bracket

$

$

Currently unavailable

2

MTD 710-0602

Hex Tap. Scr. 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

MTD 732-0410

Ext. Spring 13.25" Lg.

$

$

Not available

9

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 711-0738

Stabilizer Rod

Note: (40" Decks)

$

$

Not available

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

Note: (381' Decks)

$

$

Not available

12

MTD 09735

Connecting Rod

$

$

Not available

13

MTD 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

14

MTD 14804

Deck Hanger Link Ass'y.-Rear L.H.

$

$

Not available

15

MTD 15373

Deck Hanger Link Ass'y.

Note: (40" Deck)

$

$

Not available

16

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

MTD 14800

Deck Hanger Link Ass'y.-
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

18

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

19

MTD 736-0160

Fl-Wash. .531 I.D. x.93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

26

MTD 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

MTD 711-0738

Stabilizer Rod

Note: (40" Decks)

$

$

Not available

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

Note: (38" Decks)

$

$

Not available

30

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

32

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

36

MTD 08540

Knob-Height Adj.

$

$

Not available

37

MTD 09721

Pivot Link Ass'y.

$

$

Not available

38

MTD 14602

Side Panel Upper Frame-R. H.
(Superseded to 14602G-0637)

$

$

Not available

39

MTD 14603

Side Panel Upper Frame-L. H .

$

$

Not available

40

MTD 16462

Index Brkt.

Note: (Deck Lift)

$

$

Currently unavailable

41

MTD 17154

Lift Shaft Ass'y.

Note: (Incl. Ref. 2 & 3)

$

$

Not available

42

MTD 16465

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

MTD 732-0573

Ex. Spring

$

$

Not available

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

46

MTD 17226

Hitch Plate

$

$

Not available

47

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

55

MTD 732-0307

Ext. Spring 11" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

MTD 732-0412

Deck Lift-Down Stop
(Superseded to 983-0003)

$

$

Not available

58

MTD 748-0176

Flange Brg. .630" I.D.

$9.99

$

In Stock, only 1 left!

0

59

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 736-0231

Fl-Wash. .344" I.D.

$4.99

$

In Stock, Qty 20+

0

61

MTD 736-0425

Bell-Wash. .325" I.D. x .930" x.045"

$4.99

$

In Stock, Qty 13

0

62

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

63

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

64

MTD 738-0526

Running Board Rod

$

$

Not available

65

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

68

MTD 16330

Fender Support Brkt.

Note: (40" Deck)

$

$

Currently unavailable

69

MTD 15363

Grass Catcher Support Brkt.-L.H.

Note: (40" Deck)

$

$

Not available

70

MTD 15364

Grass Catcher Support Brkt.-R.H.

Note: (40" Deck)

$

$

Not available

71

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

72

MTD 726-0207

Hose Clamp-.406" Dia.

$

$

Not available

73

MTD 731-0511

Trim Strip-5" Lg.

$3.99

$

Usually ships in 3-6 days

0

74

MTD 751-0173

Gas Line-44" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

75

MTD 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 9

0

76

MTD 751-0403

Gas Tank

$

$

Not available

77

MTD 726-0175

Hose Clamp

$

$

Not available

80

MTD 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

81

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

83

MTD 722-0157

Foam Strip 3/8" x 1-1/8" x 11/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

84

MTD 711-0425

Spacer .523" I.D. x .640" O.D. x 1.95" Lg.

$

$

Currently unavailable

85

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

86

MTD 17166

Hitch Bar

$

$

Not available

87

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

88

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-0623

Self-Tap Scr. 3/4" Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 16238

Gas Tank Housing

$

$

Not available

91

MTD 17082

Side Panel-R.H.

$

$

Not available

MTD 17083

Side Panel-L.H.

Note: (Not Shown)

Variations

MTD 17083-0637

No Longer Available PANEL-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

92

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

93

MTD 17078

Mounting Bracket-R.H.

$

$

Not available

MTD 17077

Mounting Bracket-L.H.

Note: [Units with 38" Decks only, (Models 662 thru 667)](Not Shown)

$

$

Currently unavailable

94

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

95

MTD 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

96

MTD 732-0530

Ext. Spring 13.25" Lg.

$

$

Not available

97

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

98

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

99

MTD 726-0211

Speed Nut

$4.49

$

In Stock, only 1 left!

0
