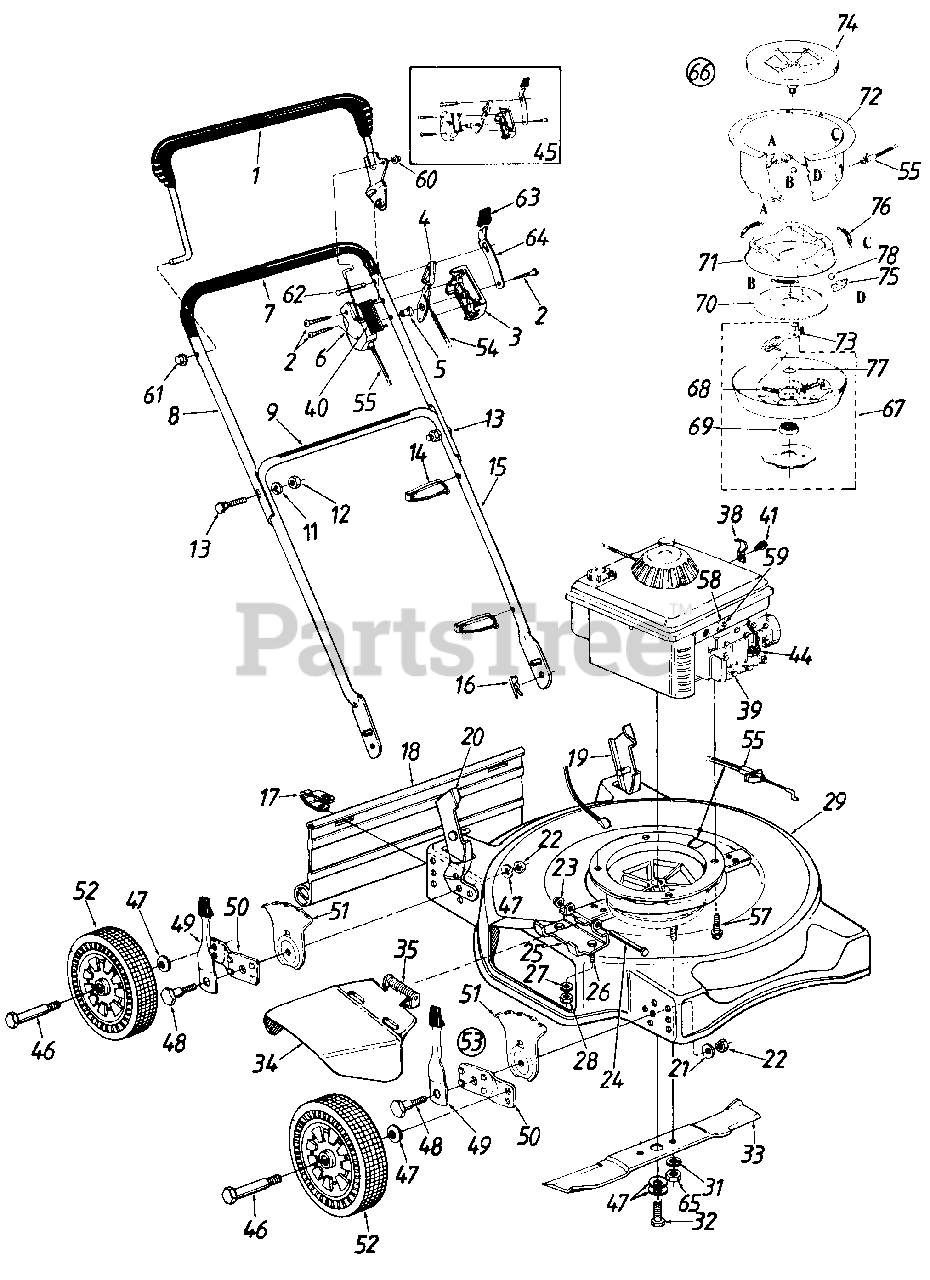

NE 4004 (118-079B058) - New Englander Walk-Behind Mower (1988) (R.E. Jarvis) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 16739

Control Handle Ass'y.

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0817

Control Panel Half

$

$

Not available

4

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0524

Control Disc Pin

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

$

$

Not available

7

MTD 718-0145

Grip

$

$

Currently unavailable

8

MTD 749-0754

Upper Handle

$

$

Not available

9

MTD 777-5775

Instruction Label-Handle

$

$

Currently unavailable

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 17189

Handle Bracket Ass'y.-L.H.

$

$

Not available

20

MTD 17188

Handle Bracket Ass'y.-R.H.

$

$

Not available

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

24

MTD 711-0555

Pivot Pin

$

$

Not available

25

MTD 11130

Adapter Plate

$

$

Not available

26

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

27

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

28

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

MTD 17039

20" Deck Ass'y.

$

$

Not available

MTD 17047

22" Deck Ass'y.

Variations

MTD 17047-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

33

MTD 742-0520

20" Blade
(Superseded to 942-0620)

Note: (079B)

$

$

Not available

MTD 742-0522

22" Blade
(Superseded to 942-0622)

Note: (089B)

$

$

Not available

34

MTD 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

35

MTD 732-0253

Torsion Spring

$

$

Not available

38

MTD 12894

Cable Clamp

$

$

Not available

39

Engine

$

$

Not available

40

MTD 777-5772

Control Label-Throttle

$

$

Currently unavailable

41

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 753-0431

Kit-Control Housing Comp.

$

$

Not available

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507

Shld. Bolt .50" Dia. x .357"
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-0894

Wheel Ass'y. Comp.

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0642

Throttle Cable-51"
(Superseded to 946-0671A)

Note: (079B)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0632

Throttle Cable-53"
(Superseded to 946-0671A)

Note: (089B)

$14.99

$

Usually ships in 3-6 days

0

55

MTD 746-0402A

Control Cable

$

$

Not available

57

MTD 710-0654

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

58

MTD 751-0463

Cable Clamp

$

$

Not available

59

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

60

MTD 726-0245

Push Cap

$

$

Not available

61

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

62

MTD 731-0607

Lock Pin

$

$

Not available

63

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

64

MTD 732-0401

Lockout Spring

$

$

Not available

65

MTD 712-0328

Hex Nut 5/16-24 Thd. (Grade. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

66

MTD 717-0482

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

67

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

68

MTD 732-0396

Comp. Spring .35" O.D. x 2.0" Lg.

$

$

Not available

69

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

70

MTD 14304

Clutching Cone

$

$

Not available

71

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

72

MTD 14306

Clutch Housing

$

$

Currently unavailable

73

MTD 710-0875

Hex Wash. TT-Tap Cl.-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

74

MTD 719-0256

Fan Adapter

$

$

Not available

75

MTD 731-0520

Ball Block

$

$

Not available

76

MTD 732-0397

Ext. Spring .35" O.D. x 1.75" Lg.

$

$

Not available

77

MTD 736-0333

Fl-Wash. .69" I.D. x 1.060"

$

$

Not available

78

MTD 741-0326

Steel Ball .5" Dia.

$

$

Not available
