NCFC 300 A - Electrolux/AYP Tiller HANDLE ASSEMBLY Parts Diagram

Tiller

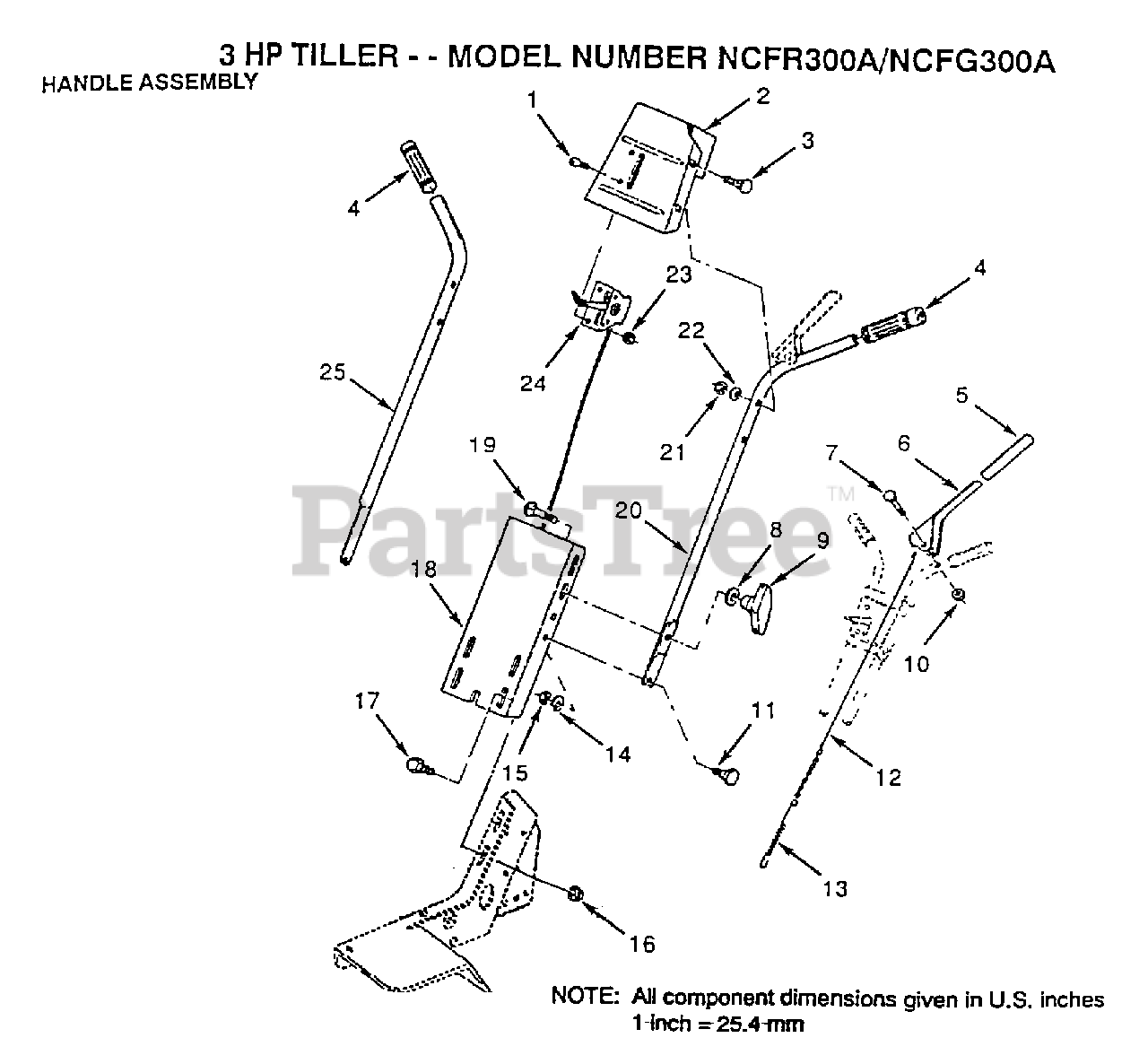

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 71091008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 127046X423

BRKT HDLE TI
(Superseded to 532125123)

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 127046X429

"BRKT,HANDLE"

$7.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

4

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

5

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 3069J

SUB= 164937
(Superseded to 583014501)

$

$

Not available

7

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 63688

SUB= 136376
(Superseded to 532183724)

$

$

Not available

10

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

11

Electrolux/AYP 471J

BOLT CT

$

$

Not available

12

Electrolux/AYP 3067J

SUB= 100382K

$

$

Not available

13

Electrolux/AYP 3070J

SPRING EXT TI
(Superseded to 583731801)

$

$

Not available

14

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

17

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 2626J423

"PANEL,HANDLE"

$6.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 2626J429

"PANEL,HANDLE"

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 2621J

SUB= 154127

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

23

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 127011X

SUB= 532127011

$

$

Not available

25

Electrolux/AYP 2622J

SUB= 159764

$

$

Not available

Electrolux/AYP 129213

PLATE, LOGO (HANDLE BRACKET)

$

$

Not available

Electrolux/AYP 121751X

DECAL, THROTTLE

$

$

Not available

Electrolux/AYP 110614X

DECAL TI
(Superseded to 532110614)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 110613X

DECAL TI
(Superseded to 532110613)

$12.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 129209

NLA

$

$

Not available

Electrolux/AYP 129210

OWNER'S MANUAL (FRENCH)

$

$

Not available
