NAV27KC - Exmark Navigator Front Mount Mower, 27hp Kohler (SN: 850000 - 919999) (2010) Hydraulic Group Parts Diagram

Navigator Front Mount Mower, 27hp Kohler

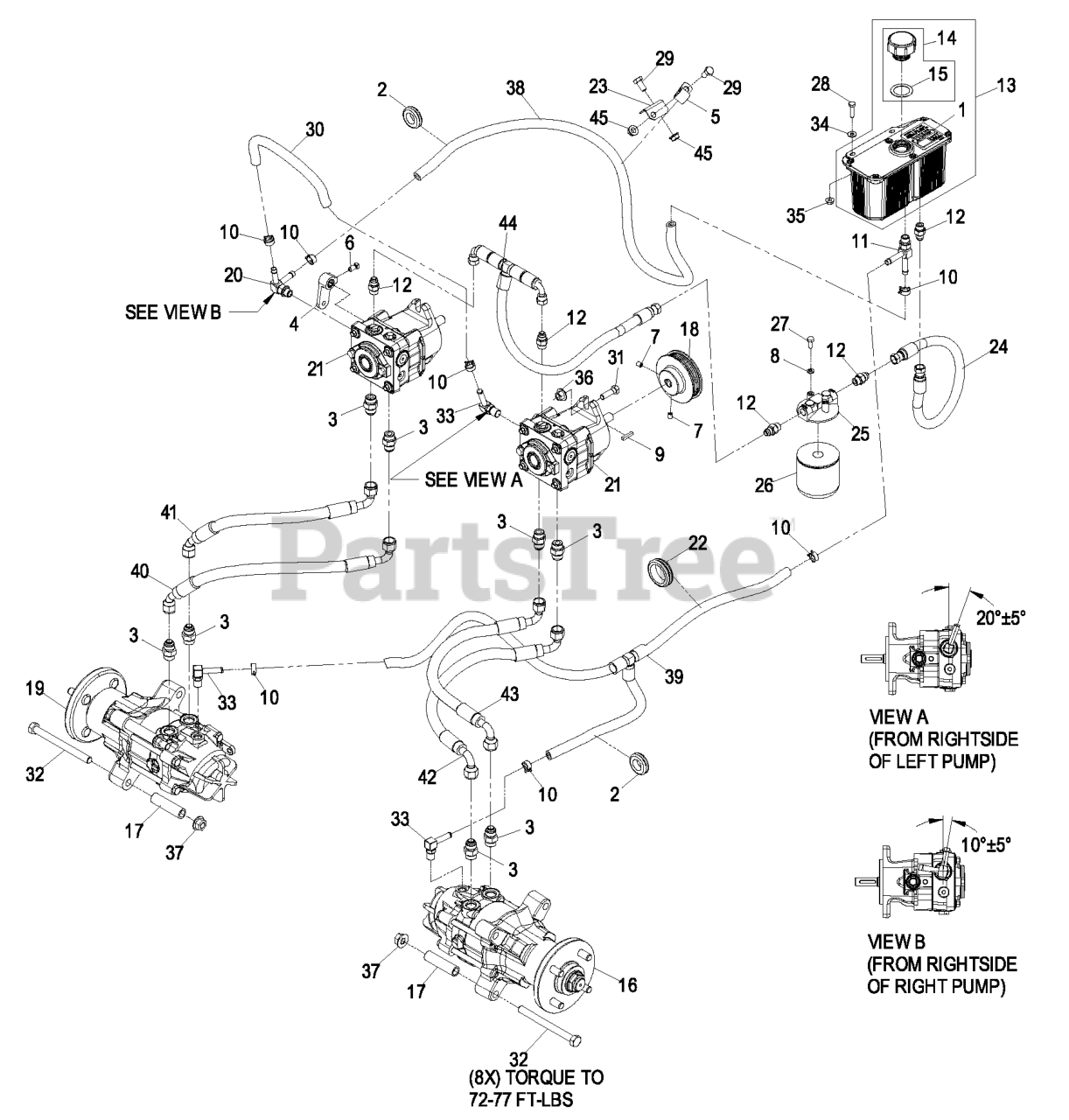

Hydraulic Group Parts Diagram

  • Title

1

Exmark 116-0404

DECAL-HYDRAULIC TANK

$1.99

$

In Stock, Qty 15

0

2

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

Exmark 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-632208

ARM-CONTROL, PUMP

$27.99

$

In Stock, Qty 20+

0

5

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

8

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

9

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

10

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 103-1828

ADAPTER-RUN, TEE

$45.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

12

Exmark 103-2156

FITTING-STRAIGHT

$41.99

$

In Stock, only 4 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 103-1947

HYD RESERVOIR ASM

$257.99

$

Usually ships in 3-6 days

0

14

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$27.99

$

In Stock, Qty 5

0

15

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 9

0

16

Exmark 103-3406

MOTOR,PRM18-LH

$1985.99

$

Usually ships in 3-6 days

0

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$56.99

$

Usually ships in 3-6 days

0

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$10.99

$

Usually ships in 3-6 days

0

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$356.99

$

Usually ships in 3-6 days

0

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 109-7041

SPACER

$17.99

$

Usually ships in 3-6 days

0

18

Exmark 103-4246

SHEAVE

$107.99

$

Usually ships in 3-6 days

0

19

Exmark 103-4612

MOTOR,PRM18-RH

$

$

Not available

Exmark 103-9762

"DISC" KIT,SEAL

Note: Wheel Motor Service Kits

$56.99

$

Usually ships in 3-6 days

0

Exmark 103-9763

HANDLE,ACTUATING

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-9764

CLIP-RETAINING

Note: Wheel Motor Service Kits

$10.99

$

Usually ships in 3-6 days

0

Exmark 103-9765

NUT,HEX TOPLOCK 1-20 UNEF

Note: Wheel Motor Service Kits

$

$

Not available

Exmark 103-4242

ASM, WHEEL HUB W/STUDS

Note: Wheel Motor Service Kits

$356.99

$

Usually ships in 3-6 days

0

Exmark 103-7447

STUD,WHEEL
(Superseded to 135-7526)

Note: Wheel Motor Service Kits

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 103-5469

ADAPTER-TEE

$86.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

21

Exmark 116-2441

116-9175
(Superseded to 116-9175)

$878.99

$

Usually ships in 3-6 days

0

Exmark 103-7441

104-5311
(Superseded to 104-5311)

Note: Hydro Pump Service Kits

$43.99

$

In Stock, Qty 5

0

Exmark 103-7443

CYLINDER BLOCK KIT

Note: Hydro Pump Service Kits

$347.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

Note: Hydro Pump Service Kits

$61.99

$

In Stock, only 3 left!

0

Exmark 105-6184

SEAL OVERHAUL KIT

Note: Hydro Pump Service Kits

$79.99

$

In Stock, Qty 7

0

22

Exmark 103-7706

GROMMET

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 103-8631

BRACKET-CLAMP

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 109-1258

HYDRAULIC HOSE ASM

$42.99

$

Usually ships in 3-6 days

0

25

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

26

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 17

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32degF (0degC).

$47.99

$

In Stock, only 1 left!

0

27

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

30

Exmark 103-5452

HOSE-HYD

$9.49

$

Usually ships in 3-6 days

0

31

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Exmark 325-22

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

33

Exmark 100-4887

FITTING-ELBOW, 90

$28.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

34

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

36

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

37

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

38

Exmark 103-5477

HOSE-HYD

$31.99

$

Usually ships in 3-6 days

0

39

Exmark 103-8617

ASM,HYDRAULIC HOSE

$73.99

$

Usually ships in 3-6 days

0

40

Exmark 109-1260

ASM,HYDRAULIC HOSE

$123.99

$

Usually ships in 3-6 days

0

41

Exmark 109-1261

ASM,HYDRAULIC HOSE

$118.99

$

Usually ships in 3-6 days

0

42

Exmark 109-1262

ASM,HYDRAULIC HOSE

$121.99

$

Usually ships in 3-6 days

0

43

Exmark 109-1263

ASM,HYDRAULIC HOSE

$161.99

$

Usually ships in 3-6 days

0

44

Exmark 109-1264

HYDRAULIC HOSE ASM

$99.99

$

Usually ships in 3-6 days

0

45

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
