NAV27KC - Exmark Navigator Front Mount Mower, 27hp Kohler (SN: 510000 - 599999) (2005) Hopper Group (cont.) Parts Diagram

Navigator Front Mount Mower, 27hp Kohler

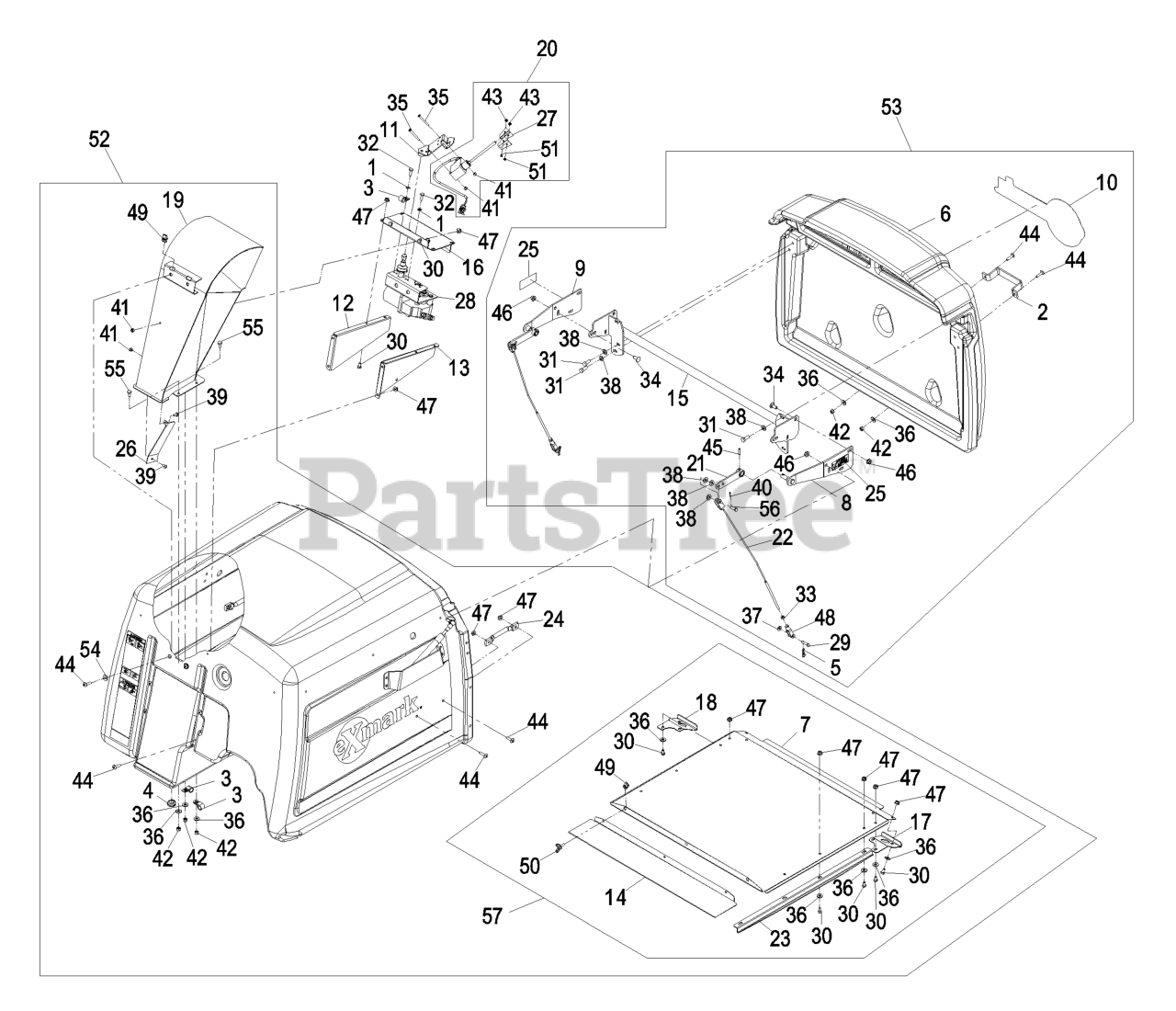

Hopper Group (cont.) Parts Diagram

  • Title

1

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

2

Exmark 1-353005-03

HANDLE

$15.99

$

In Stock, only 1 left!

0

3

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

4

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

5

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-5043

109-3955
(Superseded to 109-3955)

$533.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5745-03

PANEL-SCREEN, HOPPER

$356.99

$

Usually ships in 3-6 days

0

8

Exmark 103-6004

109-2111
(Superseded to 109-2111)

$

$

Not available

9

Exmark 103-6005

109-2112
(Superseded to 109-2112)

$

$

Not available

10

Exmark 103-6024

DECAL,EXMARK LOGO

$83.99

$

Usually ships in 3-6 days

0

11

Exmark 103-6064-03

109-3850
(Superseded to 109-3850)

$119.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6067-03

BRACKET-DRIVE MOTOR, LH

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6068-03

BRACKET-DRIVE MOTOR, RH

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 103-7048-03

PANEL-SCREEN, REMOVABLE

$134.99

$

Usually ships in 3-6 days

0

15

Exmark 103-7076-03

109-4153-03
(Superseded to 109-4153-03)

$149.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7085-03

PLATE-SWITCH

$35.99

$

Usually ships in 3-6 days

0

17

Exmark 103-7098-03

HANDLE-SCREEN, LH

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7099-03

HANDLE-SCREEN, RH

$27.99

$

Usually ships in 3-6 days

0

19

Exmark 103-8158-03

109-3650-03
(Superseded to 109-3650-03)

$371.99

$

In Stock, only 1 left!

0

20

Exmark 103-9466

ASM,FILL SENSOR

$505.99

$

Usually ships in 3-6 days

0

21

Exmark 103-8190

ARM-DOOR

$55.99

$

Usually ships in 3-6 days

0

22

Exmark 103-8194

CABLE ASM

$69.99

$

In Stock, only 2 left!

0

23

Exmark 103-8203-03

GUIDE-SCREEN

$28.99

$

Usually ships in 3-6 days

0

24

Exmark 103-8209

GUIDE-CABLE

$20.99

$

Usually ships in 3-6 days

0

25

Exmark 103-8444

DECAL-PINCH POINT

$8.49

$

Usually ships in 3-6 days

0

26

Exmark 103-8680

DEFLECTOR-DISCHARGE CHUTE

$20.99

$

Usually ships in 3-6 days

0

27

Exmark 103-8789

FLAG- SENSOR, FILL

$14.99

$

Usually ships in 3-6 days

0

28

Exmark 103-9121

MOTOR WIRING ASM

$707.99

$

Usually ships in 3-6 days

0

29

Exmark 283-26

PIN

$4.99

$

Usually ships in 3-6 days

0

30

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

31

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

34

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3250-48

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

36

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

37

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

43

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

44

Exmark 32105-31

SCREW-PTH

$1.49

$

Usually ships in 3-6 days

0

45

Exmark 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

48

Exmark 103509

YOKE

$45.99

$

Usually ships in 3-6 days

0

49

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

50

Exmark 606733

109-1063
(Superseded to 109-1063)

$5.49

$

Usually ships in 3-6 days

0

51

Exmark 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

52

Exmark 103-9457

ASM,HOPPER

$2913.99

$

Usually ships in 3-6 days

0

53

Exmark 103-9456

ASM,DOOR HOPPER

$728.99

$

Usually ships in 3-6 days

0

54

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

55

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

56

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

57

Exmark 109-0717

HOPPER SCREEN ASM

$428.99

$

Usually ships in 3-6 days

0
