NAV20KC - Exmark Navigator Front Mount Mower, 20hp Kohler (SN: 850000 - 919999) (2010) Speed Controls Group Parts Diagram

Navigator Front Mount Mower, 20hp Kohler

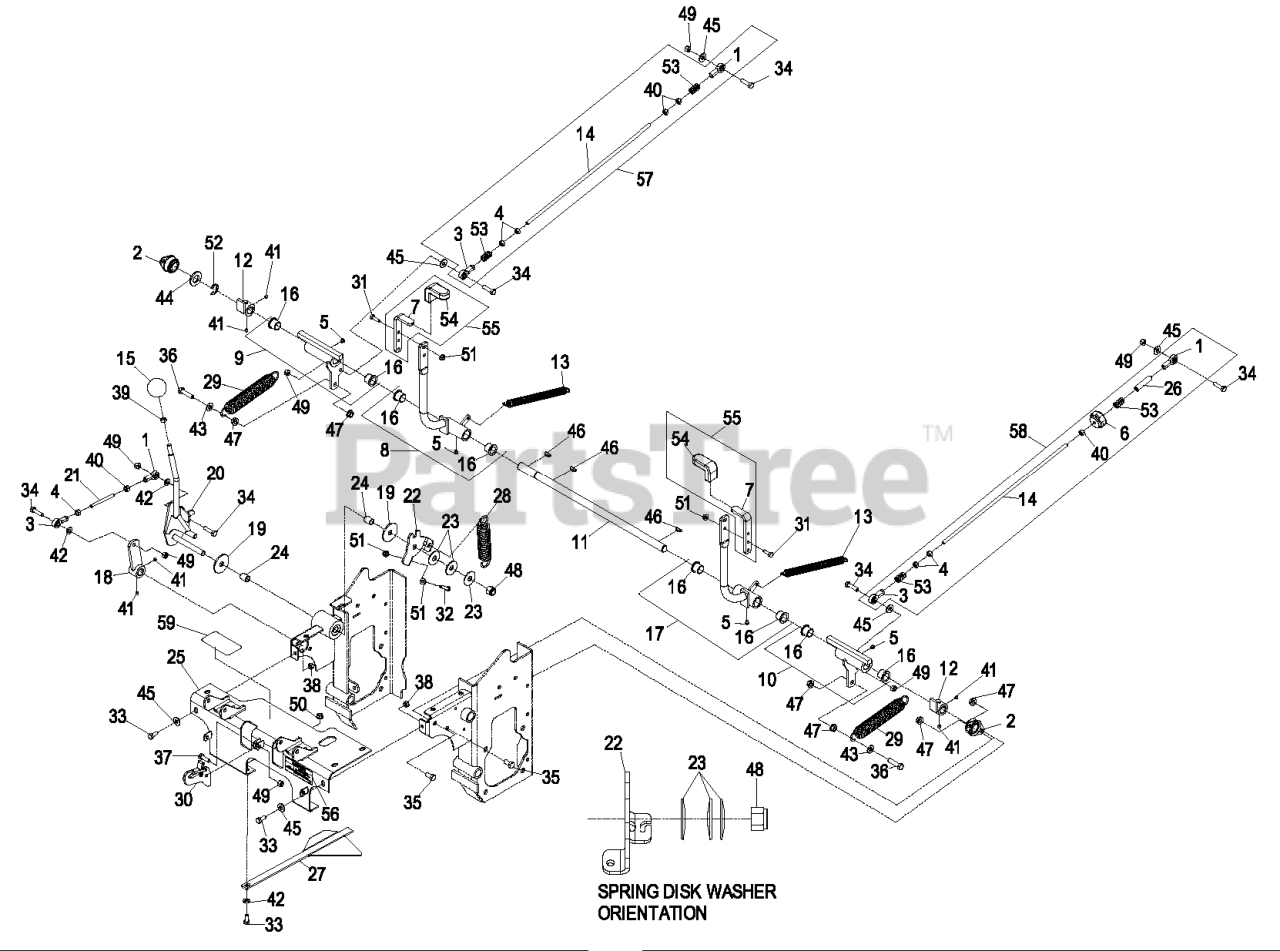

Speed Controls Group Parts Diagram

  • Title
1

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

2

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

3

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

$2.99

$

In Stock, only 2 left!

0

$5.49

$

In Stock, Qty 11

0

6

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

7

Exmark 103-9468

ASM,HANDLE W/GRIP

$59.99

$

Usually ships in 3-6 days

0

8

Exmark 103-9730

ASM,STEERING LEVER RH W/B

$259.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9731

ASM,ACTUATOR RH W/BEARING

$290.99

$

Usually ships in 3-6 days

0

10

Exmark 103-9732

ASM,ACTUATOR LH W/BEARING

$290.99

$

Usually ships in 3-6 days

0

11

Exmark 103-4278

SHAFT,SPEED CONTROL

$

$

Not available

12

Exmark 103-4342-03

WLD,HUB SPEED CONTROL

$

$

Not available

13

Exmark 103-4373

SPRING,EXTENSION

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4377

LINKAGE,ROD LH STEERING (

$42.99

$

Usually ships in 3-6 days

0

15

Exmark 103-4397

KNOB-BALL, SPEED CONTROL

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 103-4398

BEARING-FLANGE, IGLIDE

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 103-9733

ASM,STEERING LEVER LH W/B

$259.99

$

Usually ships in 3-6 days

0

18

Exmark 103-5008

WLD,CONTROL ARM (PLATED)

$83.99

$

Usually ships in 3-6 days

0

19

Exmark 103-5009

DISC-FRICTION

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 103-5013

WLD,SPEED CONTROL LEVER(P

$

$

Not available

21

Exmark 103-5016

ROD,THREADED CONTROL LINK

$25.99

$

Usually ships in 3-6 days

0

22

Exmark 103-5017

PLATE,SPEED CONTROL FRICT

$28.99

$

Usually ships in 3-6 days

0

23

Exmark 103-5018

WASHER-DISC, SPRING

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5064

BEARING,PLASTIC 1/2"

$

$

Not available

25

Exmark 109-5927

Asm, Console W/Decals

$

$

Currently unavailable

26

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 103-5993-03

GUIDE-PLENUM

$74.99

$

Usually ships in 3-6 days

0

28

Exmark 103-6078

SPRING,EXTENSION (PLATED)

$22.99

$

Usually ships in 3-6 days

0

29

Exmark 103-6532

SPRING-EXTENSION

$27.99

$

Usually ships in 3-6 days

0

30

$58.99

$

Usually ships in 3-6 days

0

31

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

34

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

36

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

39

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

40

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

41

Exmark 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

42

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

44

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

45

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

47

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

49

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

50

$1.49

$

In Stock, Qty 20+

0

51

$0.99

$

In Stock, Qty 6

0

52

$1.99

$

In Stock, Qty 14

0

53

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

54

Exmark 103-5994

GRIP-HANDLE, STEERING

$13.99

$

In Stock, only 3 left!

0

55

Exmark 103-9468

ASM,HANDLE W/GRIP

$59.99

$

Usually ships in 3-6 days

0

56

Exmark 103-8425

DECAL-DRIVELINE

$11.99

$

Usually ships in 3-6 days

0

57

Exmark 103-9493

ASM,RH PUMP LINKAGE

$213.99

$

Usually ships in 3-6 days

0

58

Exmark 103-9492

ASM,LH PUMP LINKAGE

$213.99

$

Usually ships in 3-6 days

0

59

Exmark 109-4273

DECAL,WHEEL MOTOR RELEASE

$

$

Not available
