NAV20KC - Exmark Navigator Front Mount Mower, 20hp Kohler (SN: 790000 - 849999) (2009) Jackshaft Group Parts Diagram

Navigator Front Mount Mower, 20hp Kohler

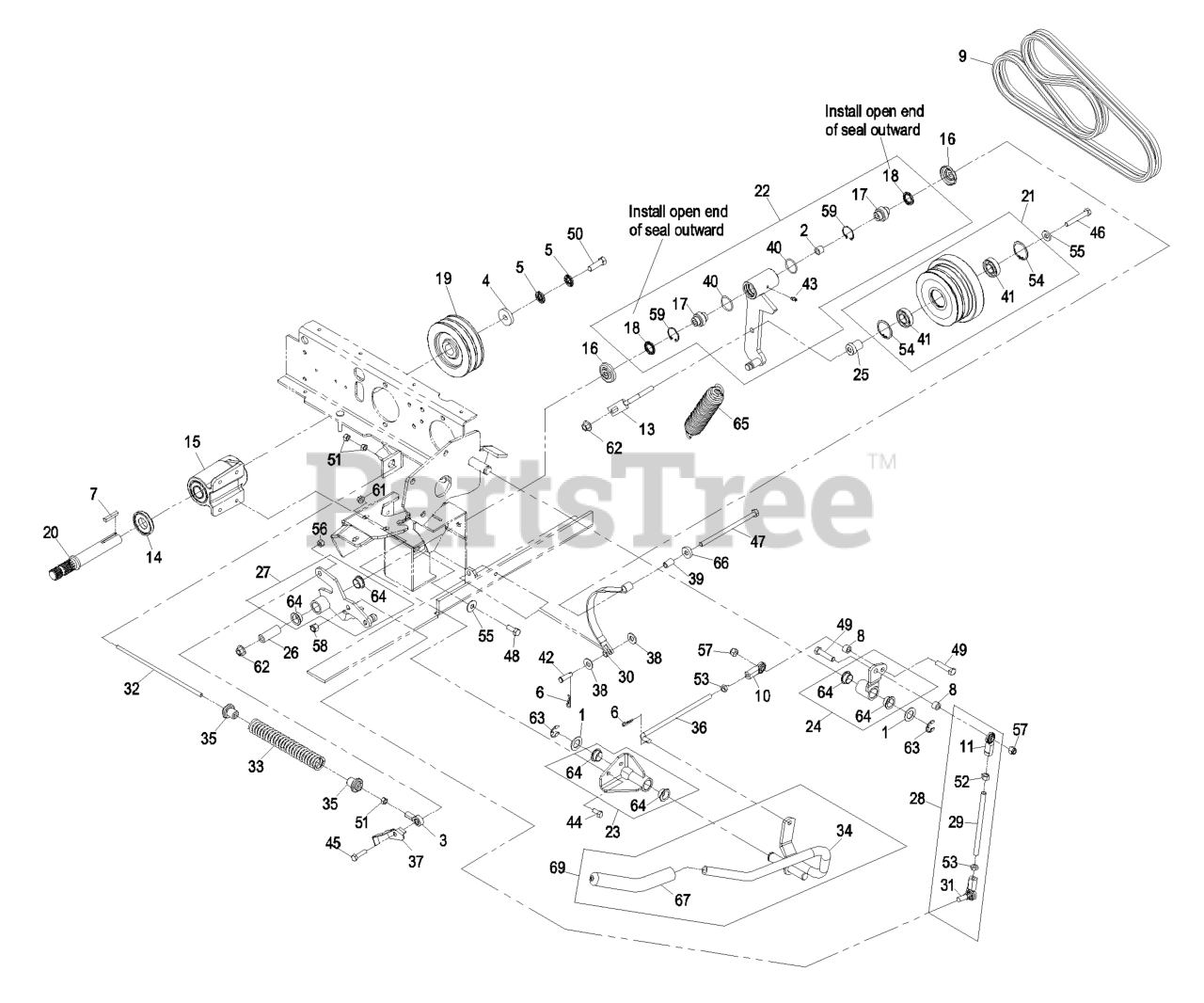

Jackshaft Group Parts Diagram

  • Title

1

Exmark 1-303007

WASHER

$5.49

$

In Stock, Qty 13

0

2

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

3

Exmark 1-543017

BALLJOINT-RH

Note: (RH)

$20.99

$

In Stock, only 4 left!

0

4

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

7

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

8

Exmark 92-9025

SPACER

$8.49

$

Usually ships in 3-6 days

0

9

Exmark 103-6737

BELTS-MATCHED PAIR
(Superseded to 103-6737-SL)

$158.99

$

In Stock, only 2 left!

0

10

Exmark 103-0608

JOINT-BALL, END

Note: (RH)

$33.99

$

In Stock, Qty 5

0

11

Exmark 103-1167

JOINT-BALL END, LH

Note: (LH)

$31.99

$

In Stock, Qty 10

0

12

Exmark 103-9486

PTO HANDLE ASM

$245.99

$

Usually ships in 3-6 days

0

13

Exmark 109-5491

GUIDE-BELT

$25.99

$

Usually ships in 3-6 days

0

14

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

15

Exmark 103-2544

103-9746
(Superseded to 103-9746)

$263.99

$

In Stock, only 1 left!

0

16

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

17

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

18

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

19

Exmark 103-6732

SHEAVE

$196.99

$

Usually ships in 3-6 days

0

20

Exmark 103-6735

SHAFT-JACK

$194.99

$

Usually ships in 3-6 days

0

21

Exmark 103-9439

IDLER SHEAVE ASM

$365.99

$

Usually ships in 3-6 days

0

22

Exmark 103-8253

IDLER PIVOT ASM

$231.99

$

Usually ships in 3-6 days

0

23

Exmark 103-9295

PIVOT ASM

$124.99

$

Usually ships in 3-6 days

0

24

Exmark 103-9297

ARM ASM

$116.99

$

Usually ships in 3-6 days

0

25

Exmark 103-7350

SPACER-IDLER

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 103-7382

BUSHING

$19.99

$

In Stock, only 1 left!

0

27

Exmark 103-9296

ARM ASM

$149.99

$

Usually ships in 3-6 days

0

28

Exmark 103-7392

CLUTCH LINK ASM

$127.99

$

Usually ships in 3-6 days

0

29

Exmark 103-7393

ROD-LINKAGE

$13.99

$

Usually ships in 3-6 days

0

30

Exmark 103-7697

BAND-BRAKE

$87.99

$

In Stock, only 1 left!

0

31

Exmark 103-7994

BALLJOINT-RH

Note: (RH)

$42.99

$

Usually ships in 3-6 days

0

32

Exmark 103-7996

LINKAGE-ROD, PTO BRAKE

$21.99

$

Usually ships in 3-6 days

0

33

Exmark 103-7997

SPRING-BRAKE

$44.99

$

Usually ships in 3-6 days

0

34

Exmark 103-9486

PTO HANDLE ASM

$245.99

$

Usually ships in 3-6 days

0

35

Exmark 103-8254

BUSHING-SPRING

$6.99

$

Usually ships in 3-6 days

0

36

Exmark 103-8277

LINK-HANDLE

$33.99

$

Usually ships in 3-6 days

0

37

Exmark 103-8716-03

SWITCH-FLAG

$12.99

$

Usually ships in 3-6 days

0

38

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

39

Exmark 103-9816

SPACER

$8.99

$

Usually ships in 3-6 days

0

40

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

41

Exmark 251-347

BEARING-BALL

$10.99

$

In Stock, only 4 left!

0

42

Exmark 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

43

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

44

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

45

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

46

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

47

Exmark 323-36

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

48

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

49

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on sheave bolt, item #50.

$2.49

$

In Stock, only 1 left!

0

51

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

52

Exmark 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

53

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

54

Exmark 32151-13

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

55

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

56

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

57

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

58

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

59

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

60

Exmark 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

61

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

62

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

63

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

64

Exmark 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

65

Exmark 109-0148

SPRING-EXTENSION

$38.99

$

Usually ships in 3-6 days

0

66

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0
