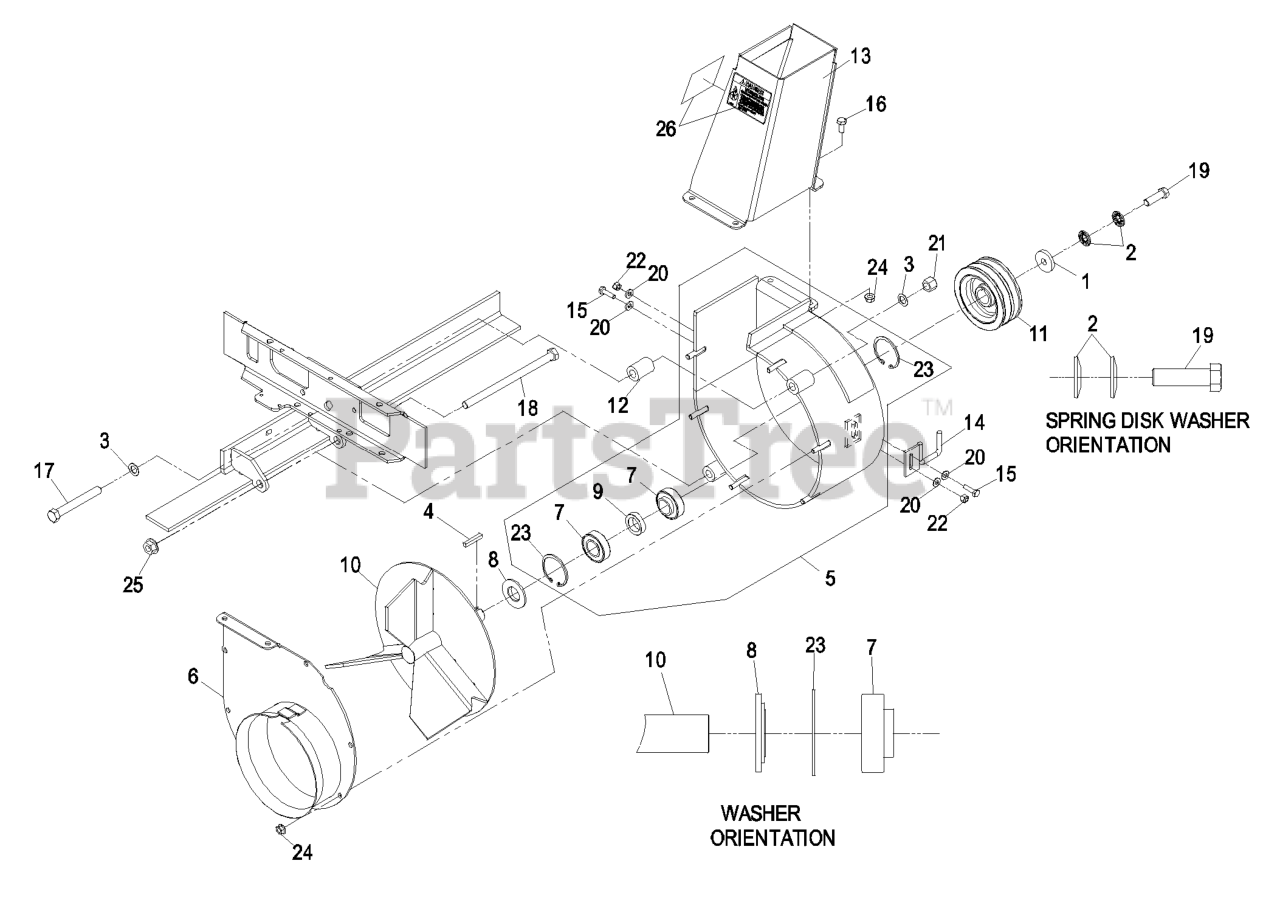

NAV20KC - Exmark Navigator Front Mount Mower, 20hp Kohler (SN: 720000 - 789999) (2008) Blower Group Parts Diagram

Navigator Front Mount Mower, 20hp Kohler

Blower Group Parts Diagram

  • Title

1

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

2

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

3

Exmark 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

4

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

5

Exmark 109-0183

ASM,HOUSING W/BEARINGS

$922.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3370-03

COVER-BLOWER

$338.99

$

Usually ships in 3-6 days

0

7

Exmark 103-3540

BEARING-BALL

$67.99

$

In Stock, only 2 left!

0

8

Exmark 103-3894

SPACER-BLOWER

$28.99

$

In Stock, only 1 left!

0

9

Exmark 103-4921

SPACER-BEARING

$15.99

$

In Stock, only 1 left!

0

10

Exmark 103-5194

IMPELLER-3 BLADE

$392.99

$

Usually ships in 3-6 days

0

11

Exmark 103-6733

SHEAVE

$196.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6999

SPACER-MOUNT

$19.99

$

Usually ships in 3-6 days

0

13

Exmark 103-9474

DISCHARGE CHUTE ASM

$277.99

$

Usually ships in 3-6 days

0

14

Exmark 103-9167-03

GUIDE

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

18

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

19

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5mltube) on screw, item #19.

$2.49

$

In Stock, only 1 left!

0

20

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

26

Exmark 109-7318

DECAL-DANGER IMPELLER

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 109-0184

ASM,BLOWER COMPLETE

Note: Complete blower assembly contains all items shown except items #11, #14, #20(4), #15(2) and # 22(2).

$1451.99

$

Usually ships in 3-6 days
