NAV20KC - Exmark Navigator Front Mount Mower, 20hp Kohler (SN: 600000 - 669999) (2006) Fuel Group Parts Diagram

Navigator Front Mount Mower, 20hp Kohler

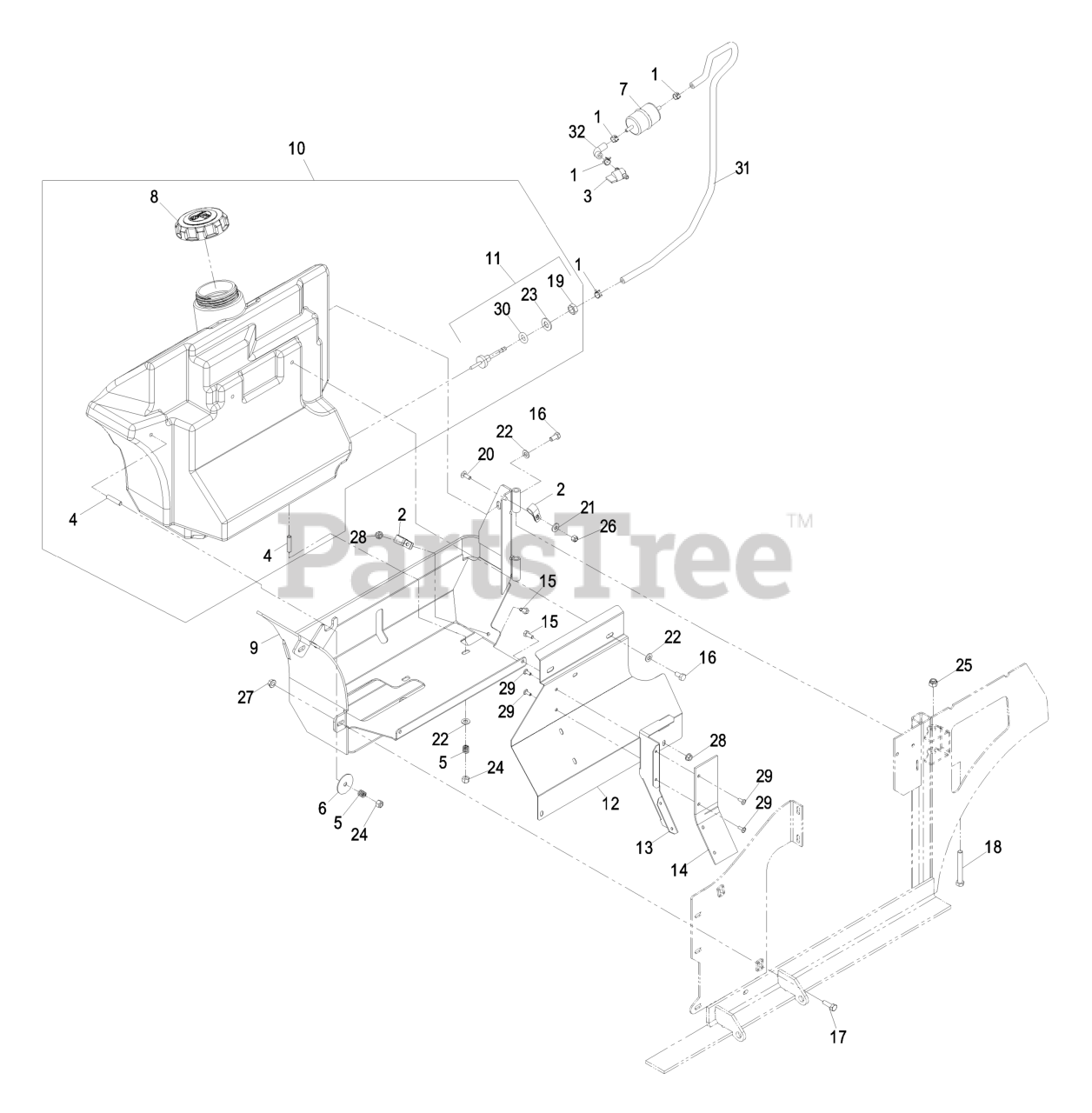

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

4

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #4 going into tank and on threads at the head of screw, item #17.

$6.49

$

In Stock, only 2 left!

0

5

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

6

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

7

Kohler Part No. 2405010 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

$

$

Not available

8

Exmark 103-3536

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, Qty 14

0

9

Exmark 103-5765-03

116-2848-03
(Superseded to 116-2848-03)

$348.99

$

Usually ships in 3-6 days

0

10

Exmark 103-9454

109-2957
(Superseded to 109-2957)

$

$

Not available

11

Exmark 103-6057

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #11.

$49.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6074-03

PANEL,TANK SHIELD

$

$

Not available

13

Exmark 103-7095-03

DEFLECTOR-AIR

$69.99

$

Usually ships in 3-6 days

0

14

Exmark 103-9658

FLAP-RUBBER

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

17

Exmark 322-5

SCREW-HH

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #4 going into tank and on threads at the head of screw, item #17.

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

20

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

31

Exmark 109-0284

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

32

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$21.99

$

In Stock, only 1 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0
