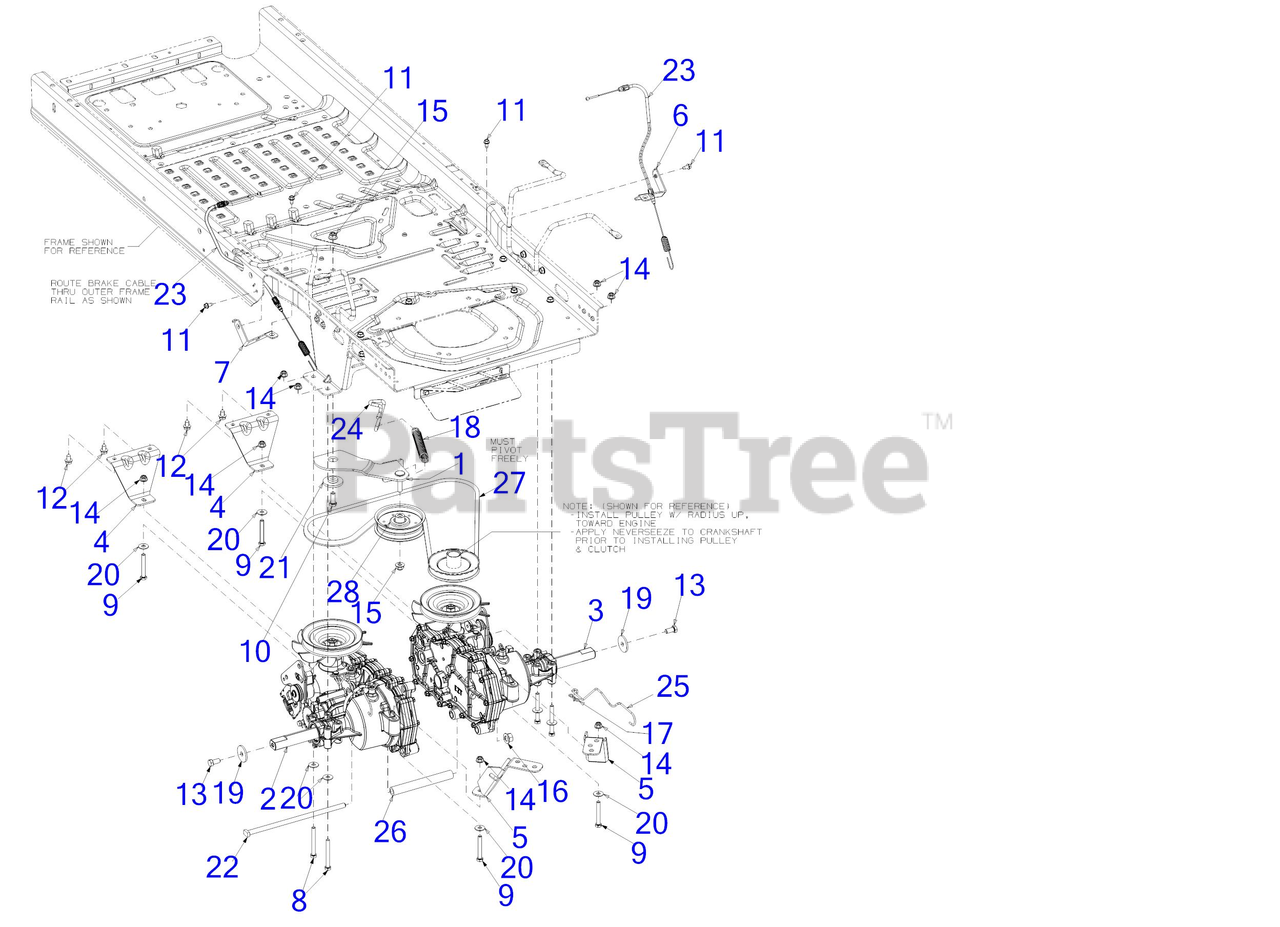

N-RZT 34 (17AQNAEU897) - Columbia 34" Zero-Turn Mower (2017) Drive Parts Diagram

34" Zero-Turn Mower

Drive Parts Diagram

  • Title

1

MTD 603Z05328A

IDLER BRACKET ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

2

MTD 918-05128A

HYDRO TRANSMISSION ASSEMBLY (LH)
(Superseded to 918-05128B)

Note: (See Separate Breakdown)

$1467.99

$

Usually ships in 3-6 days

0

3

MTD 918-05129A

HYDRO TRANSMISSION ASSEMBLY (RH)
(Superseded to 918-05129B)

Note: (See Separate Breakdown)

$1467.99

$

Usually ships in 3-6 days

0

4

MTD 703-08570-0637

TRANSMISSION MOUNTING BRACKET

$12.99

$

Usually ships in 3-6 days

0

5

MTD 703-10823A

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10823A-0637

BRKT-TRANSMSN MTG - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

6

MTD 703-10979A

BRAKE CABEL BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10979A-0637

BRKT-BRAKE CBL RH - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

7

MTD 703-10996A

BRAKE CABEL BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10996A-0637

BRKT-BRAKE CBL LH - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

8

MTD 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

10

MTD 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

17

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

MTD 732-05559

EXTENSION SPRING .75 DIA X 5.87

$14.99

$

In Stock, only 1 left!

0

19

MTD 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

20

MTD 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

21

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

22

MTD 738-05222

SUPPORT TUBE ROD

$14.99

$

Usually ships in 3-6 days

0

23

MTD 946-05331

PARK BRAKE CABLE

$43.99

$

Usually ships in 3-6 days

0

24

MTD 747-06074A

IDLER SPRING HOOK
(Superseded to 747-06074)

$23.99

$

In Stock, only 2 left!

0

25

MTD 747-06886

HYDRO BYPASS ROD

$10.99

$

Usually ships in 3-6 days

0

26

MTD 750-06607

SUPPORT TUBE

$15.99

$

Usually ships in 3-6 days

0

27

MTD 954-05336

DRIVE BELT A X 62.24

$52.99

$

In Stock, only 1 left!

0

28

MTD 956-04049A

FLAT IDLER PULLEY 4.0 DIA

$50.99

$

Usually ships in 3-6 days

0
