MZT 61 BF (967177010-00) - Husqvarna 61" Zero-Turn Mower (2014-02) ENGINE PLATE Parts Diagram

61" Zero-Turn Mower

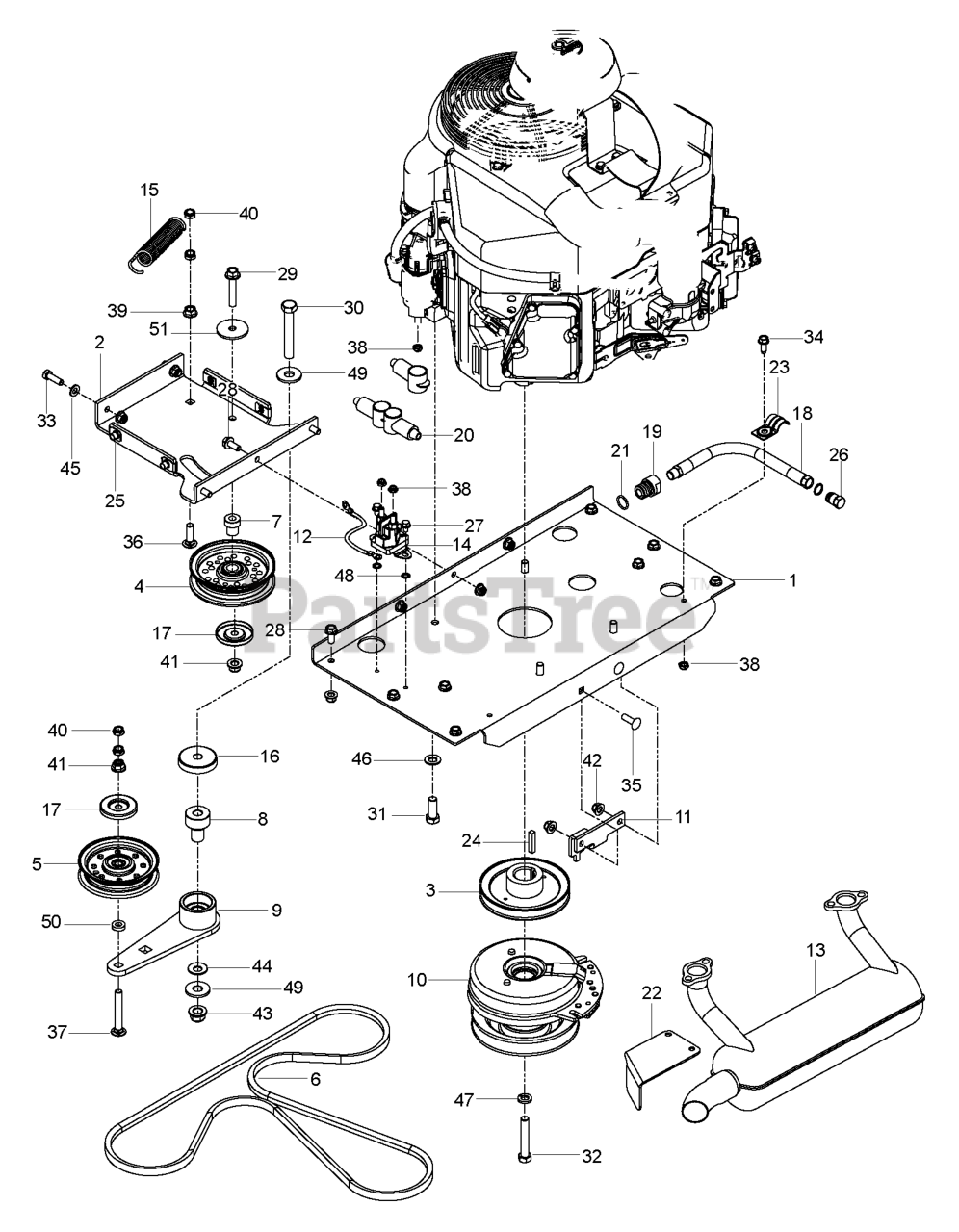

ENGINE PLATE Parts Diagram

  • Title

4

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

22

Husqvarna 579150901

SHIELD MUFFLER

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

45

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 574846402

PLATE, IDLER, BLK

$102.99

$

In Stock, only 2 left!

0

43

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 574846302

PLATE, ENGINE, BLK
(Superseded to 575608801)

$265.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

44

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539109618

O-RING

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574870901

BELT, HYDRO, 3400

$39.99

$

In Stock, Qty 20+

0

36

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 17

0

9

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$62.99

$

In Stock, Qty 5

0

49

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

39

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 575017302

STOP, CLUTCH, BLACK
(Superseded to 575017305)

$20.99

$

In Stock, only 1 left!

0

10

Husqvarna 574607001

CLUTCH 200 FT LB

$569.99

$

In Stock, only 1 left!

0

23

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

Husqvarna 575018301

PIGTAIL, KAWASAKI ZT

Note: NOT SHOWN

$28.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

12

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 12

0

37

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

3

Husqvarna 574811001

PULLEY, V, 1.125 BORE

$62.99

$

In Stock, Qty 11

0

8

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, Qty 9

0

41

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

5

Husqvarna 539107620

FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

19

Husqvarna 539119680

ADAPTER, OIL DRAIN

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

14

Husqvarna 539101714

SOLENOID

$28.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510254501

DUST SHIELD

$

$

Not available

7

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 510254401

SPRING, PUMP

$

$

Not available

46

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

40

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

31

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525750201

MUFFLER.26HP.KAW.FX651V-730V

$262.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

35

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0
