MZT 61 (967177010-01) - Husqvarna 61" Zero-Turn Mower (2019-02) MOWER DECK / CUTTING DECK Parts Diagram

61" Zero-Turn Mower

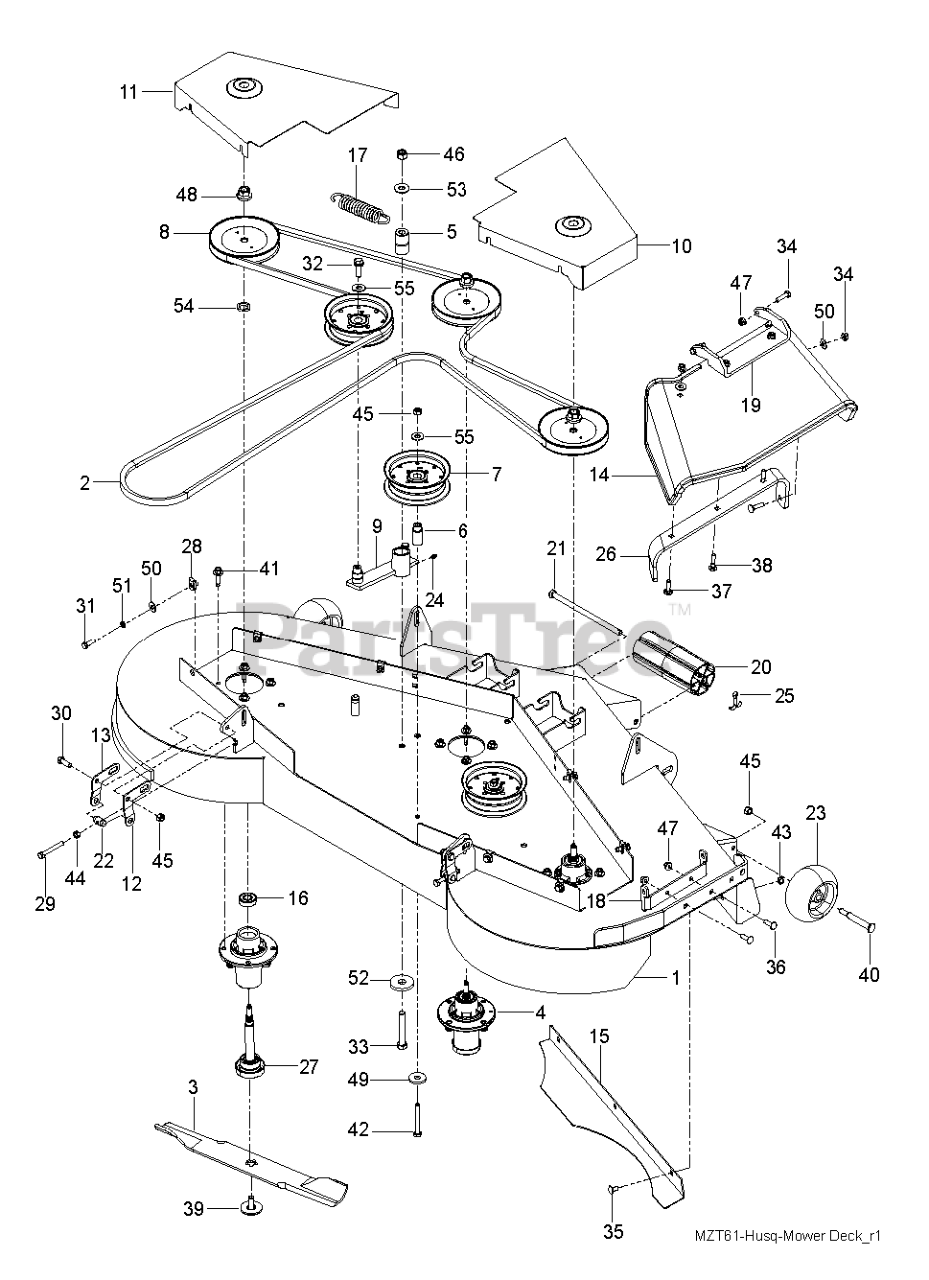

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 539113321

BELT SHIELD.RH.ORANGE
(Superseded to 539113319)

$133.99

$

In Stock, only 1 left!

0

20

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

14

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

38

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

40

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 581606102

BRACKET.M-ZT.CHUTE(ORG)
(Superseded to 581606104)

$17.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

27

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 10

0

45

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

54

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 9

0

25

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

7

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, only 1 left!

0

47

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

19

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

42

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 581505401

DECK SVC MZT 61 W/DECALS ORG

$2165.99

$

Usually ships in 3-10 days

0

34

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539113324

BELT SHIELD.LH. ORANGE
(Superseded to 584385601)

$109.99

$

Usually ships in 3-10 days

0

53

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

51

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

4

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 12

0

15

Husqvarna 539113317

CONFINEMENT PLATE 61

$66.99

$

In Stock, only 1 left!

0

50

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539113312

BLADE, 21"

$30.99

$

In Stock, Qty 10

0

35

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

8

Husqvarna 539113300

PULLEY

$26.99

$

In Stock, Qty 5

0

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

36

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

26

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

12

Husqvarna 584859402

BRACKET.RT.PNT.MS431

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 584859404

BRACKET.LH.PNT.MS431

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

46

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

37

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

55

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0
