MZT 61 (967177002-00) - Husqvarna 61" Zero-Turn Mower (2013-05) FRAME Parts Diagram

61" Zero-Turn Mower

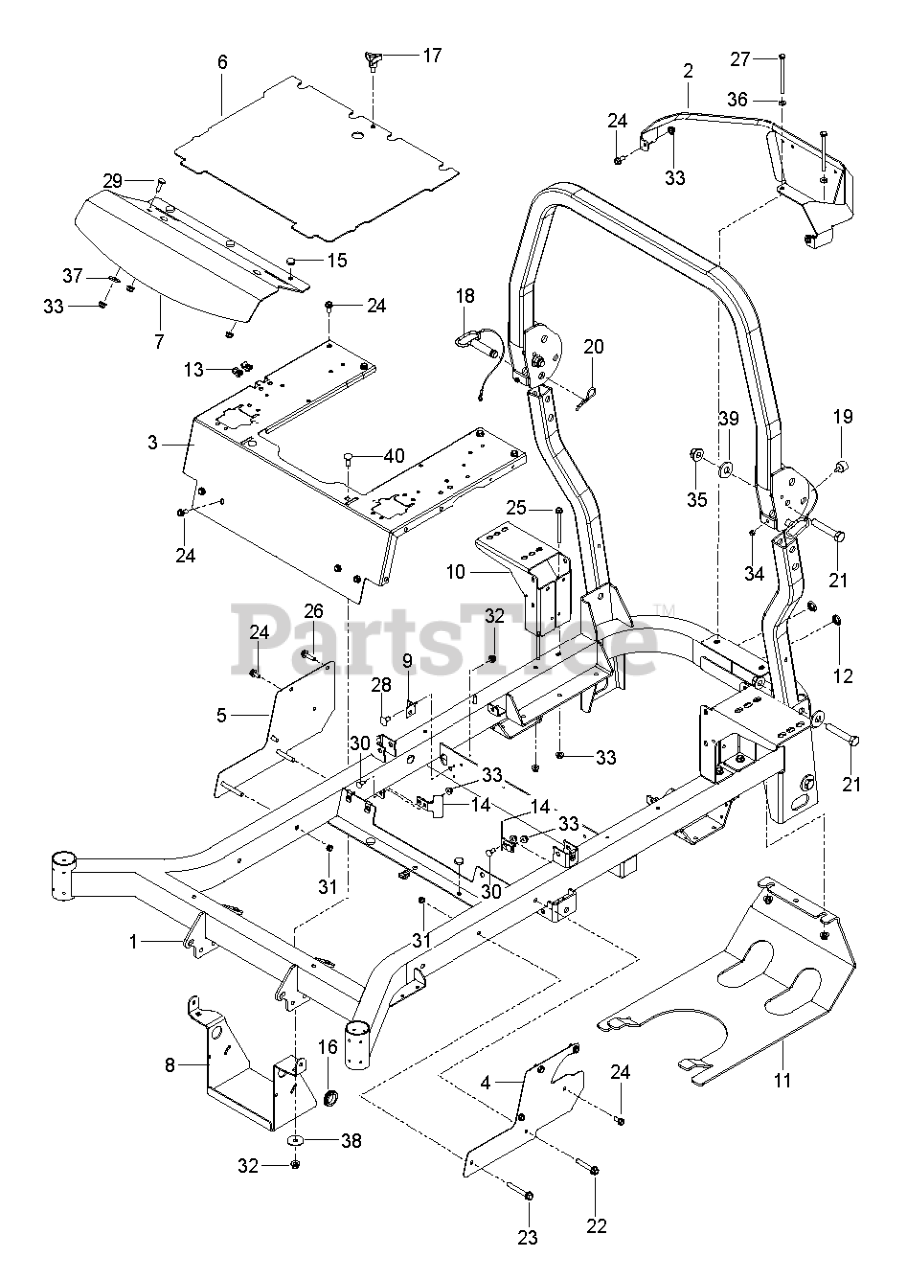

FRAME Parts Diagram

  • Title

15

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

36

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 586893002

GUARD.PNT.REAR.MZ.GRAY
(Superseded to 582693702)

Note: GRY

$85.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132744

PLATE, FLOOR W/DECALS

Note: ORG

$241.99

$

In Stock, only 1 left!

0

38

Husqvarna 819132416

WASHER.13/32X1-1/2X16GA

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna TBD

Note: 593 79 55-05 Guard, Skid Gray

$

$

Not available

7

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 593634302

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 594037402

BRACKET BATTERY BLACK MS-431

Note: BLK

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 575533602

MOUNT, TANK, ZT BLK

Note: BLK

$74.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

18

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501656001

KIT.FRAME.W/DECALS.X668

Note: W/ SFTY DECALS

$2051.99

$

Usually ships in 3-10 days

0

26

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

39

Husqvarna 539102653

WASHER, 5/8 FLAT

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 586560101

BRACKET SIDE, LT ORANGE

Note: BLK

$

$

Not available

24

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

3

Husqvarna 586867702

SUPPORT.PNT.SEAT.CONTROL.ORNG
(Superseded to 598704902)

$79.99

$

Usually ships in 3-10 days

0

34

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

16

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

40

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

31

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

19

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

20

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

12

Husqvarna 587990501

CAP.PLUG.BP-1.BLACK

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 586560201

BRACKET SIDE, RT ORANGE

Note: BLK

$13.99

$

Usually ships in 3-10 days

0
