MZT 52 - Husqvarna 52" Zero-Turn Mower MOWER LIFT / DECK LIFT Parts Diagram

52" Zero-Turn Mower

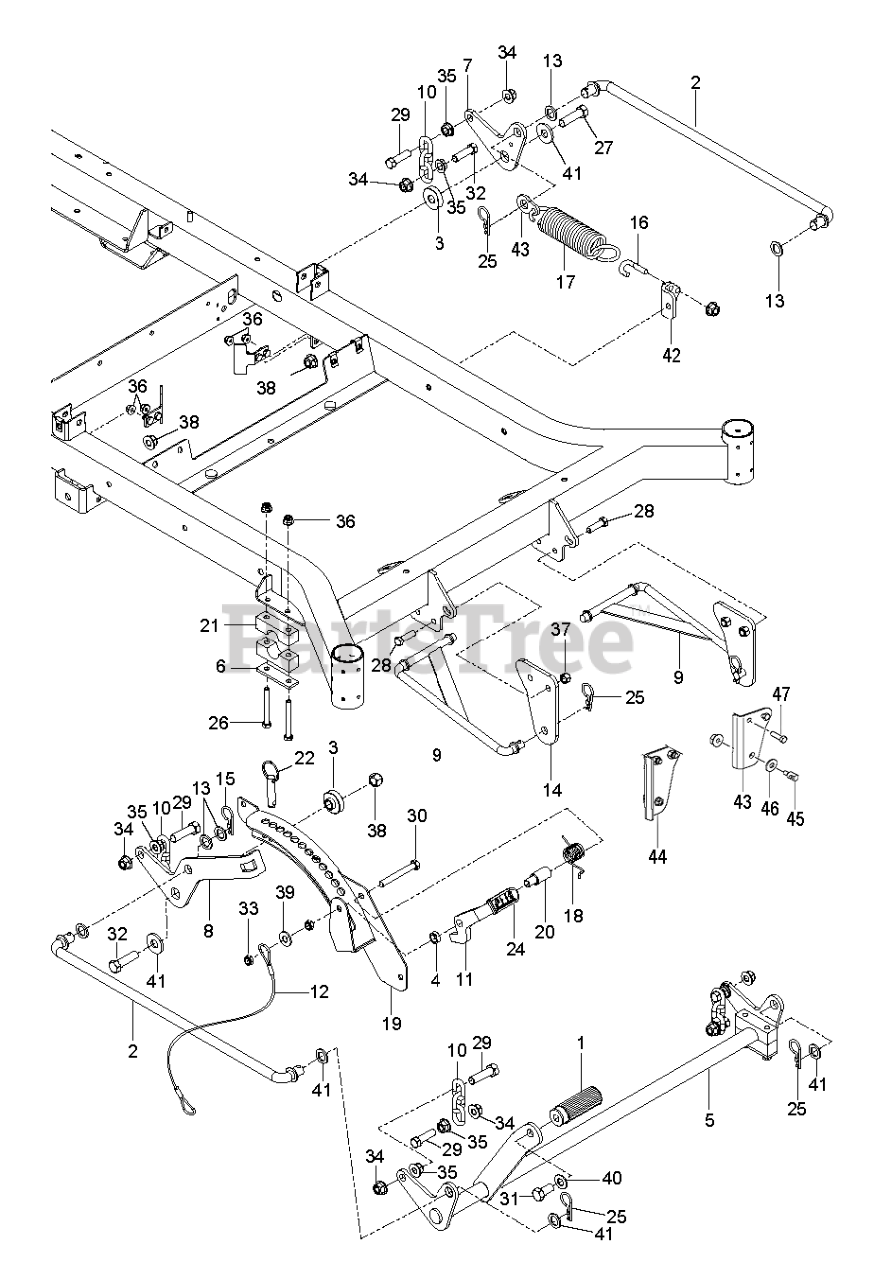

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

18

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

1

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

41

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

Note: For 967177006-01, 967177011-00, 967177005-00, 967177006-00

$

$

Not available

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00, 967177006-00

$

$

Not available

10

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539101721

HCS 5/16C X 2-3/4

Note: For 967177001-00, 967177005-01

$4.99

$

In Stock, Qty 7

0

41

Husqvarna 539109554

WASH USS FLAT 1/2

Note: For 967844001-00, 967177001-00, 967177005-01

$

$

Not available

22

Husqvarna 539132182

PIN, 1/2 X 1 1/2, DETENT RING

$

$

Not available

14

Husqvarna 539132017

MOUNT, STRUT

$31.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108181

HCS 1/2-13 X 1 3/4 GR 8

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 819191912

WASHER.CLEAR.ZINC

Note: For 967844001-00

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 539131853

BELLCRANK, RR, RT

Note: For 967177001-00, 967177005-01

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102582

NUT 7/16C WHIZ

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$

$

Not available

21

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539131566

LATCH, TRANSPORT

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539991043

BUSHING

Note: For 967844001-00, 967177001-00

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 586928702

LIFT.PNT.MZ.DECK.WELD.E-DIP

$56.99

$

Usually ships in 3-10 days

0

44

Husqvarna 588812002

BRACKET.PNT.SUSP.CHAS.FR.RH.OR
(Superseded to 592978502)

Note: For 967844001-00

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539115528

CONTACT BELLSPR 1/2

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

Note: For 967844001-00

$

$

Not available

30

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$

$

Not available

34

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$7.49

$

In Stock, Qty 12

0

24

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

Note: For 967844001-00

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112896

J-BOLT

$

$

Not available

13

Husqvarna 819211616

WASHER LT

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 874780544

BOLT HEX

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$

$

Not available

35

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

Note: For 967177005-01

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$84.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 539131861

SPACER, .3

$8.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT

$24.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539115501

PIN, COTTER 1 3/4

Note: For 967177006-01, 967177011-00, 967177005-00, 967177006-00

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 584392702

REINFORCEMENT.PLATEX431

$13.99

$

In Stock, only 4 left!

0

9

Husqvarna 539112223

STRUT LINKAGE

$37.99

$

In Stock, Qty 5

0

39

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

32

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8C X 3

Note: For 967177001-00, 967177005-01

$5.99

$

In Stock, Qty 12

0

43

Husqvarna 588812102

BRACKET.PNT.SUSP.CHAS.FR.LH.OR

Note: For 967844001-00

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

Note: For 967177001-00, 967177005-01

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539118937

IDLER SPACER

Note: For 967177001-00

$13.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539131790

NEEDS DESCRIPTION

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$

$

Currently unavailable

38

Husqvarna 539102582

NUT 7/16C WHIZ

Note: For 967177001-00, 967177005-01

$

$

Not available

25

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

Note: For 967844001-00

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 592877702

BELLCRANK REAR.RT BLACK X431

Note: For 967844001-00, 967177006-01, 967177011-00, 967177005-00, 967177006-00

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

Note: For 967177001-00, 967177005-01

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539102642

SPRING

Note: For 967177001-00, 967177005-01

$31.99

$

In Stock, only 1 left!

0
