MZT 52 BF (967177003) - Husqvarna 52" Zero-Turn Mower (2013-01) MOWER DECK / CUTTING DECK Parts Diagram

52" Zero-Turn Mower

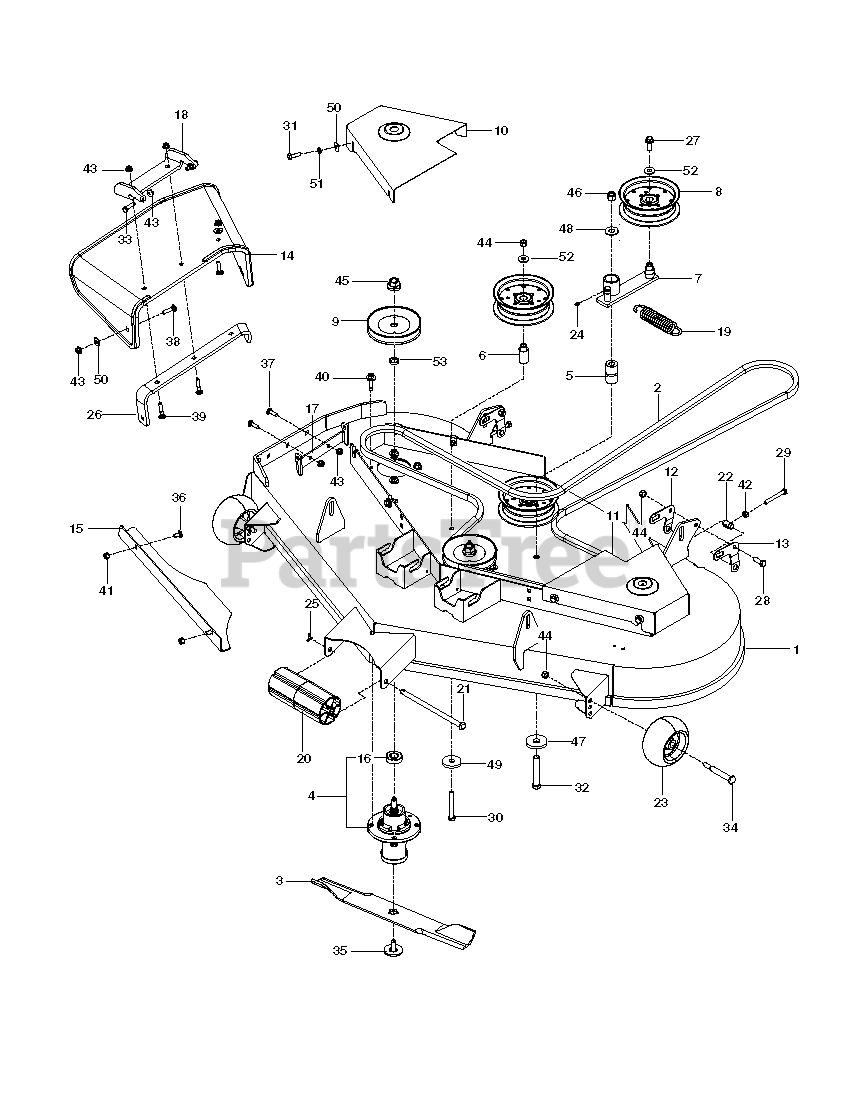

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 581505301

DECK MZT 52 W/SFTY DECALS.ORNG

Note: W / SAFTY DECALS

$

$

Not available

2

Husqvarna 522811301

BELT, B, 148.5

$97.99

$

In Stock, only 2 left!

0

3

Husqvarna 539112079

BLADE, 18"

$26.99

$

In Stock, Qty 20+

0

4

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

7

$121.99

$

In Stock, only 2 left!

0

8

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

10

Husqvarna 539112242

BELT SHIELD, RIGHT 52, ORG

Note: ORG

$72.99

$

In Stock, only 1 left!

0

11

Husqvarna 539112244

BELT SHIELD, LEFT 52, ORG

Note: ORG

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539131857

PITCH, ADJUST, RT

Note: RT

$48.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131858

PITCH, ADJUST, LT

Note: LT

$48.99

$

In Stock, only 2 left!

0

14

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 581606002

BRACKET MZ CHUTE

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 18

0

21

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

23

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

28

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

30

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

33

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

38

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

40

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

46

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

48

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

50

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

52

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0
