MZT 52 BF (967177003-00) - Husqvarna 52" Zero-Turn Mower (2013-01) SEAT Parts Diagram

52" Zero-Turn Mower

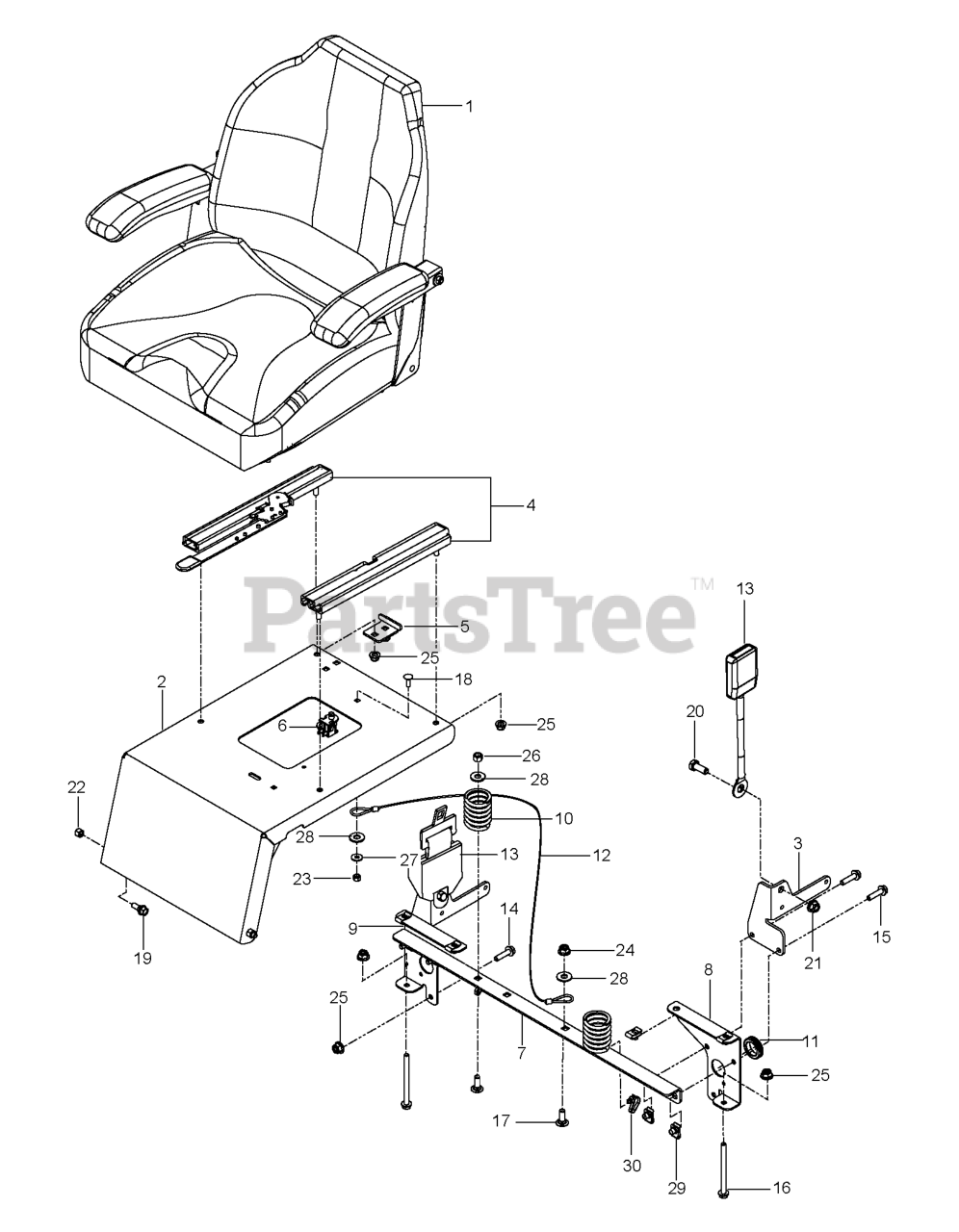

SEAT Parts Diagram

  • Title
15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

6

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 575017402

MOUNT, SEAT BELT, BLACK

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

19

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

12

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

14

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575224102

SUPPORT, LT, BLK

$36.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576702004

4"SINGLE LOCK TRACK SET W/HDWR

$159.99

$

In Stock, only 1 left!

0

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 539131656

SUPPORT, SEAT

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575224002

SUPPORT, RT, BLK

$42.99

$

Usually ships in 3-10 days

0

1

Husqvarna 576702001

SEAT.907.VINYL.HUSQVARNA
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

29

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

20

Husqvarna 539124775

SCREW 7/16-20 X 1 HHB GR5

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575608601

KIT.SEAT.MOUNT.W/DECAL

$182.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

10

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0
