MZT 52 (967177006) - Husqvarna 52" Zero-Turn Mower (2013-08) MOWER DECK / CUTTING DECK Parts Diagram

52" Zero-Turn Mower

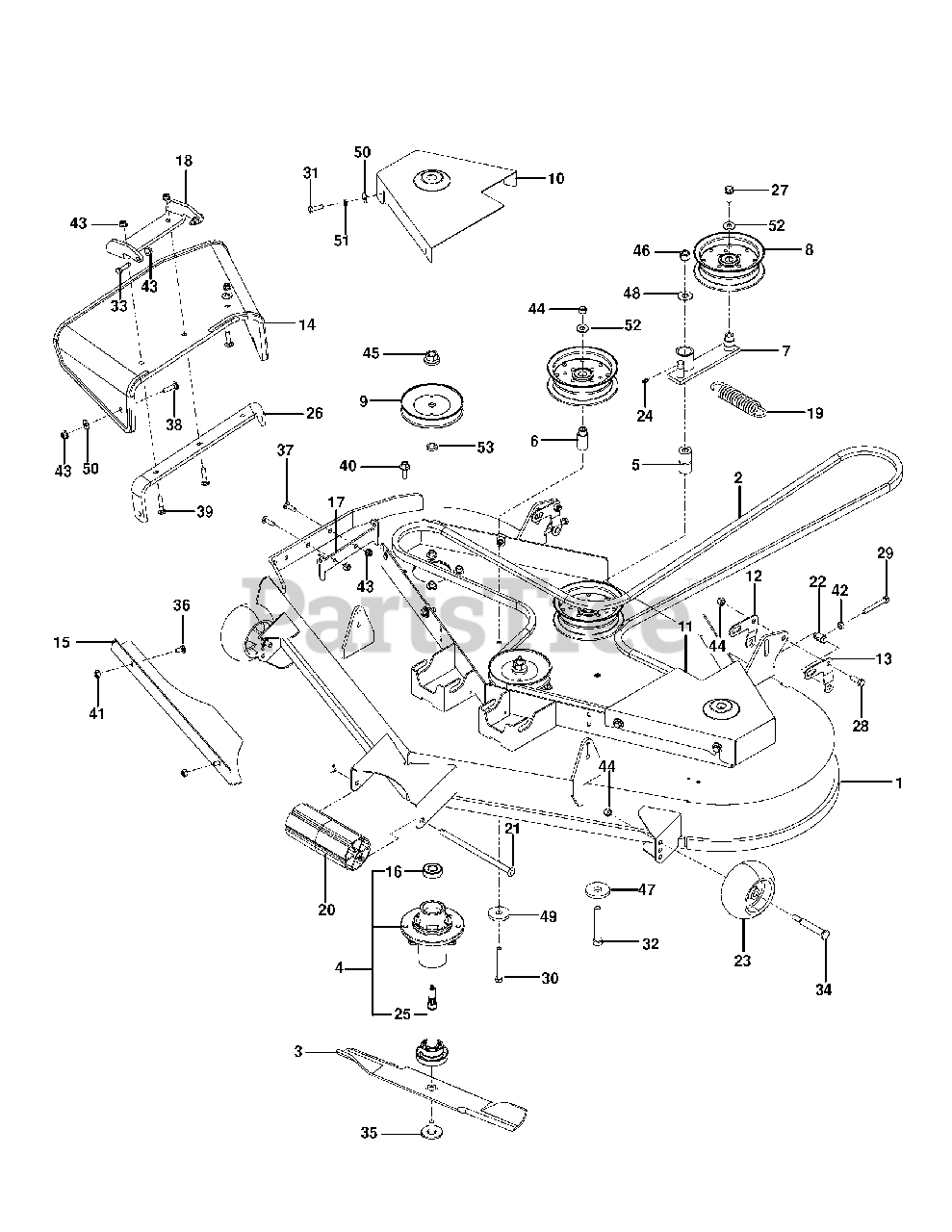

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 581505301

DECK MZT 52 W/SFTY DECALS.ORNG

$

$

Not available

2

Husqvarna 522811301

BELT, B, 148.5

$97.99

$

In Stock, only 2 left!

0

3

Husqvarna 539112079

BLADE, 18"

$26.99

$

In Stock, Qty 20+

0

4

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

7

$121.99

$

In Stock, only 2 left!

0

8

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

10

Husqvarna 539112242

BELT SHIELD, RIGHT 52, ORG

$72.99

$

In Stock, only 1 left!

0

11

Husqvarna 539112244

BELT SHIELD, LEFT 52, ORG

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584859402

BRACKET.RT.PNT.MS431

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 584859404

BRACKET.LH.PNT.MS431

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

16

$13.99

$

In Stock, Qty 11

0

17

Husqvarna 581606102

BRACKET.M-ZT.CHUTE(BLK ONLY)RP
(Superseded to 581606104)

$17.99

$

In Stock, only 1 left!

0

18

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

$12.99

$

In Stock, Qty 6

0

20

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 18

0

21

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

23

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 18

0

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, only 4 left!

0

26

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

31

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

33

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

37

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 872140512

BOLT
(Superseded to 582736101)

$

$

Not available

40

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

46

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

48

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

50

Husqvarna 819121414

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

52

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0
