MZM 5203M (7084917) - Snapper 52" Mower Deck Assembly Deck Lift System Parts Diagram

52" Mower Deck Assembly

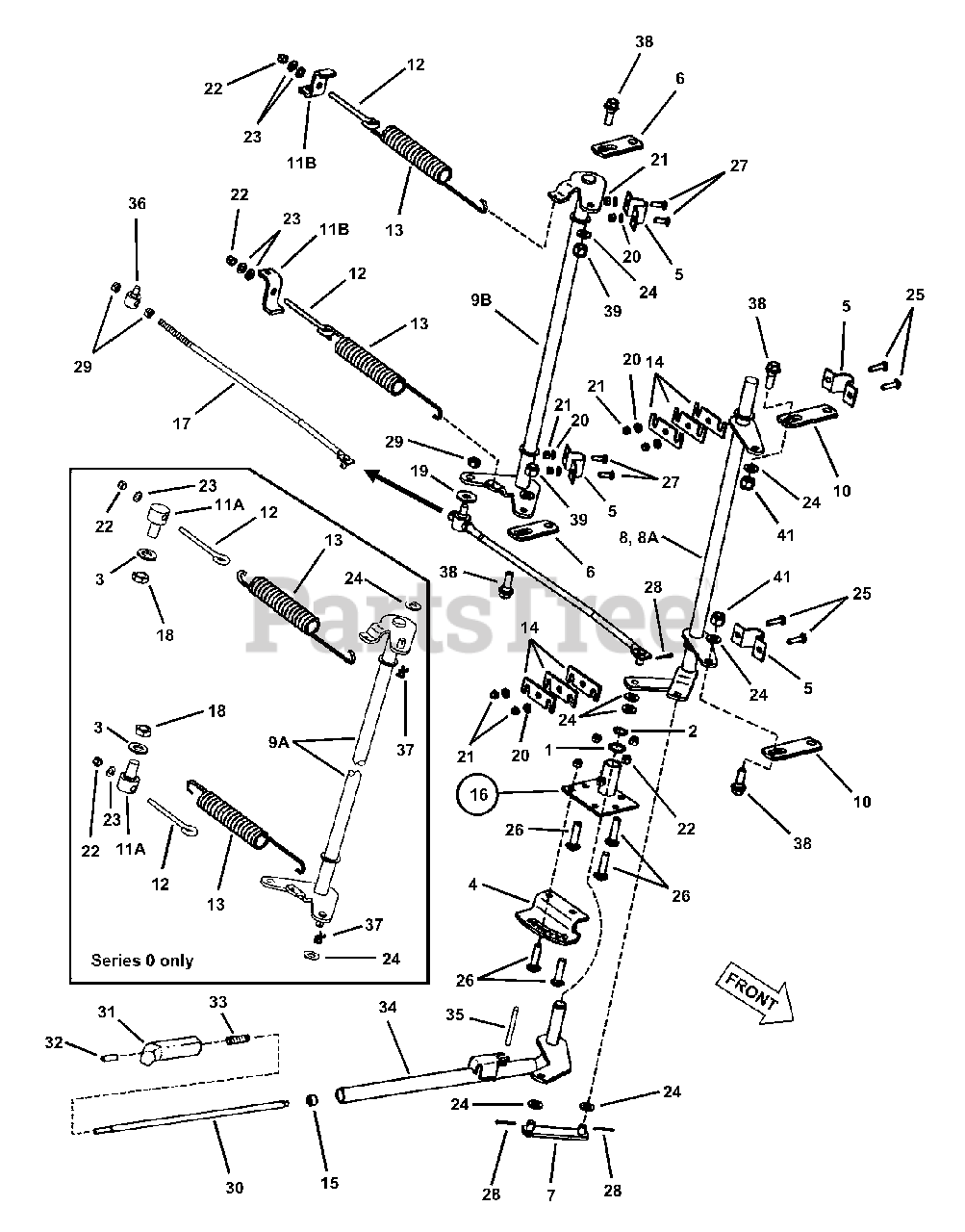

Deck Lift System Parts Diagram

  • Title

1

Snapper Pro 7014354

WASHER, 29/32" I.D. x 1-1/4" O.D.
(Superseded to 7014354YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 7015020

RING, 7/8" External Retaining
(Superseded to 7015020YP)

$

$

Not available

3

Snapper Pro 7034453

WASHER, 25/32" x 1-1/2" Flat (ZM Series 0 Models Only)
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7043801

BRACKET, Deck Height Quadrant
(Superseded to 7043801YP)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7043803

BRACKET, Deck Support
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7072360

PLATE, Rear Link (4.95" long) (ZM Series 0 Models Only)
(Superseded to 7072360YP)

Note: Was 43819

$15.99

$

Usually ships in 2-12 days

0

Snapper Pro 7072422

PLATE, Rear Link (4.33" long) (ZMT, MZM & ZM Series 1 & 2 Models)

$

$

Not available

7

Snapper Pro 7043823

WELDMENT, Lift Handle Link
(Superseded to 7043823YP)

$69.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7058741

LIFT, Front Deck (ZM Series 0 Models Only)
(Superseded to 7058741YP)

Note: Was 43827

$168.99

$

Usually ships in 2-12 days

0

8A

Snapper Pro 7058741

LIFT, Front Deck (ZMT, MZM & ZM Series 1 Models)
(Superseded to 7058741YP)

$168.99

$

Usually ships in 2-12 days

0

9A

Snapper Pro 7046404

WELDMENT, Shaft Deck Lift (ZM Series 0 Models Only)

$

$

Not available

9B

Snapper Pro 7058225

WELDMENT, Shaft Deck Lift (ZMT, MZM & ZM Series 1 & 2 Models)
(Superseded to 7058225YP)

$153.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7073196

PLATE, Front Link (5.45" long) (ZM Series 0, 1 & 2 & ZMT Models)

$

$

Not available

Snapper Pro 7073197

PLATE, Front Link (5.20" long) (MZM Model Only)
(Superseded to 7073197YP)

$11.99

$

Usually ships in 2-12 days

0

11A

Snapper Pro 7044859

SWIVEL, Spring Anchor (ZM Series 0 Models Only)

$

$

Currently unavailable

11B

Snapper Pro 7046412

BRACKET, Spring Adjustment (ZMT, MZM & ZM Series 1 & 2 Models)
(Superseded to 7046412YP)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7044860

EYEBOLT, 5/16-18 x 3"
(Superseded to 7044860YP)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 7072225

SPRING, Extension Lift Assist

$

$

Not available

14

Snapper Pro 7044870

PLATE, Shim
(Superseded to 7044870YP)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7015019

PLUG, Rod
(Superseded to 7015019YP)

$

$

Not available

16

Snapper Pro 7054543

ASSEMBLY, Pivot Plate
(Superseded to 7054543YP)

Note: (Includes 4-3804 Weldment, 1-3864 Lube Fitting and two 1-8289 Sleeve Bearings)

$77.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7044857

WELDMENT, Timing Rod
(Superseded to 7044857YP)

$55.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7090820

NUT, 3/4-16 Hex Jam Lock
(Superseded to 7090820YP)

Note: (Used on ZM Series 0 Only)

$5.99

$

In Stock, only 1 left!

0

19

Snapper Pro 7091194

WASHER, 17/32" x 1-1/2"
(Superseded to 7091194YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 7090188

WASHER, 11/32" x 11/16" Flat

$

$

Not available

21

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

23

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

24

Snapper Pro 7091587

WASHER, 17/32" x 1-1/16"

$

$

Not available

25

Snapper Pro 7091612

BOLT, 5/16-18 x 1-1/2" Carriage Grade 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

26

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

27

Snapper Pro 7091714

BOLT, 5/16-18 x 1-1/2" Carriage Grade 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

28

Snapper Pro 7091809

PIN, 1/8" x 1-1/4" Cotter
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

30

Snapper Pro 7044833

ROD, Lift Lever
(Superseded to 7044833YP)

$51.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 7019363

GRIP, Lift Lever Handle
(Superseded to 7019363YP)

$8.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 7014361

CAP, Lift Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 7014432

SPRING

$6.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 7043833

WELDMENT, Deck Lift Lever
(Superseded to 7043833YP)

$159.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7014437

PIN, 1/4" x 2-1/4" Groove
(Superseded to 7014437YP)

$4.49

$

In Stock, only 1 left!

0

36

Snapper Pro 7044858

SWIVEL, Timing Rod
(Superseded to 7044858SM)

$55.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 7091947

PIN, 1/8 x 1/2" Hair

Note: (Used on ZM Series 0 Only)

$2.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 7092017

BOLT, 1/2-20 Shoulder (ZMT, ZM & MZM Series 1 & 2 Models)
(Superseded to 7092017YP)

$7.99

$

In Stock, only 2 left!

0

39

Snapper Pro 7090559

NUT, 1/2-20 Hex Jam (ZMT & ZM Series 1 Models)
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

?40

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Carriage, Gr. 5 (ZMT & ZM Series 1 & 2 Models)

$

$

Not available

41

Snapper Pro 7090393

NUT, 1/2-20 Hex Nyloc
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0
