MZM 5203M (7084917) - Snapper 52" Mower Deck Assembly Deck, Idlers, Rollers (Part 2) Parts Diagram

52" Mower Deck Assembly

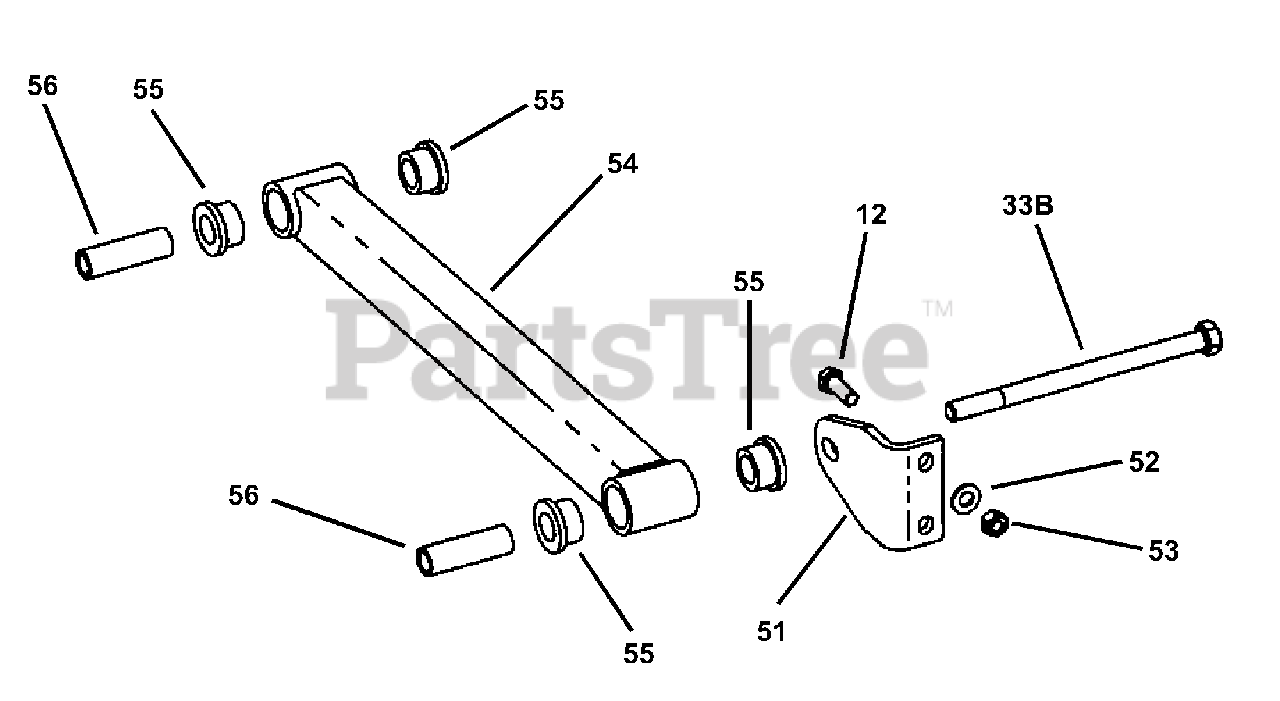

Deck, Idlers, Rollers (Part 2) Parts Diagram

  • Title
12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

33B

Snapper Pro 5025017X60

BOLT, 1/2-13 X 7-1/2" GD5 YZ
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

51

Snapper Pro 7074155

L-BRK'T, Deck Stabilizer Bar
(Superseded to 7074155YP)

$23.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

53

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

54

Snapper Pro 7059184

STRUCTURE, 52" Stabilizer Bar
(Superseded to 7059184YP)

$84.99

$

In Stock, only 1 left!

0

55

Snapper Pro 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

56

Snapper Pro 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0
