MZM 5203M (7084917) - Snapper 52" Mower Deck Assembly Deck, Idlers, Rollers (Part 1) Parts Diagram

52" Mower Deck Assembly

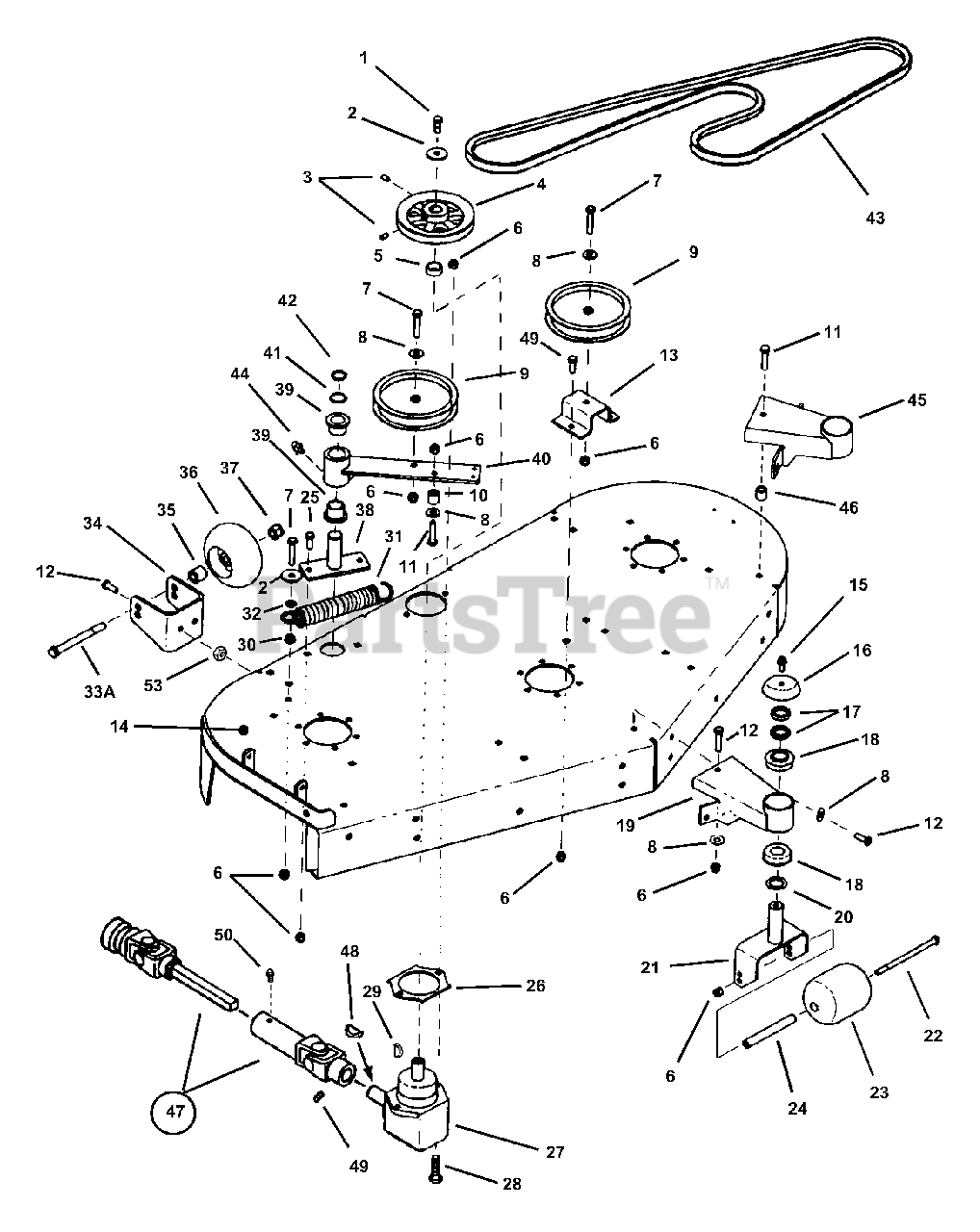

Deck, Idlers, Rollers (Part 1) Parts Diagram

  • Title

1

Snapper Pro 5025442X8

BOLT, 3/8-24 X 1" GD8 YZ

$

$

Currently unavailable

2

Snapper Pro 7091331

WASHER, 13/32" Flat

$

$

Not available

3

Snapper Pro 7091802

SET-SCREW, 5/16" x 5/8" Socket Head
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

4

Snapper Pro 7042867

PULLEY, Cast 5-3/4" O.D.
(Superseded to 7042867YP)

$112.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7035668

SPACER
(Superseded to 7035668YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

8

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7035789

PULLEY, 5-1/2 Idler
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

10

Snapper Pro 7035858

SPACER, 3/4" Outside Diameter

$29.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap Grade 5

$

$

Not available

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

13

Snapper Pro 7036449

STAND, Fixed Idler
(Superseded to 7036449YP)

$18.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7044784

WELDMENT, Deck, 52"
(Superseded to 7044784YP)

$2108.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self Tap

$

$

Not available

16

Snapper Pro 7036578

CAP, Caster Shaft
(Superseded to 7036578YP)

Note: Was 44839

$30.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

18

Snapper Pro 7044892

BEARING, Radial Flanged
(Superseded to 7044892YP)

$56.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7044643

WELDMENT, Gauge Wheel Bracket
(Superseded to 7044643YP)

$112.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

21

Snapper Pro 7044646

WELDMENT, Gauge Wheel Caster
(Superseded to 7044646YP)

$173.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

23

Snapper Pro 7079868

ROLLER, 3-3/4" x 4-13/16" Nylon
(Superseded to 7079868YP)

$63.99

$

In Stock, only 3 left!

0

24

Snapper Pro 7079882

TUBE, Axle
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

26

Snapper Pro 7036455

GEARBOX, Shim
(Superseded to 7036455YP)

$31.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7058342

GEARBOX, Right Angle (Peerless Series 1000-52)
(Superseded to 7058342YP)

$512.99

$

In Stock, only 4 left!

0

28

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

29

Snapper Pro 7010008

KEY, #6 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

Note: Was 90613

$3.49

$

In Stock, only 2 left!

0

31

Snapper Pro 7035667

SPRING, Extension
(Superseded to 7035667YP)

$32.99

$

In Stock, only 1 left!

0

32

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

33A

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

34

Snapper Pro 7036457

FORK, Gauge Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7036456

SPACER, Gauge Wheel

$

$

Not available

36

Snapper Pro 7029264

WHEEL, Gauge
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

37

Snapper Pro 7091325

NUT, 1/2-13 Hex Nylock
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

38

Snapper Pro 7042976

WELDMENT, Idler Pivot
(Superseded to 7042976YP)

$59.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

40

Snapper Pro 7042619

WELDMENT, Idler Arm
(Superseded to 7042619YP)

$253.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 7032031

WASHER, 1-1/32" Flat

$5.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 11

0

43

Snapper Pro 7042776

BELT, 52" HB (122")
(Superseded to 7042776YP)

$

$

Not available

44

Snapper Pro 7076998

ZERK, 1/4-28 Self Tapping
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

45

Snapper Pro 7041821

WELDMENT, Gauge Wheel
(Superseded to 7041821YP)

$116.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 7044752

SPACER, 3/8" Inside Dia.
(Superseded to 7044752YP)

$23.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 7063327

DRIVESHAFT, Telescoping
(Superseded to 7063327YP)

Note: Was 58494 (Includes 48-50)

$

$

Not available

48

Snapper Pro 7010211

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

49

Snapper Pro 7090132

SET SCREW, 3/8-16 x 3/8" Hex Recess
(Superseded to 7090132YP)

$3.49

$

In Stock, only 2 left!

0

50

Snapper Pro 7076998

FITTING, 1/4-28 Lube
(Superseded to 703153)

Note: Was 12700

$3.99

$

In Stock, Qty 12

0

53

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0
