MZM 2300 KH (7084606) - Snapper Zero-Turn Mower, 23hp Kohler Hydro Reservoir Assembly (Left Hand) Parts Diagram

Zero-Turn Mower, 23hp Kohler

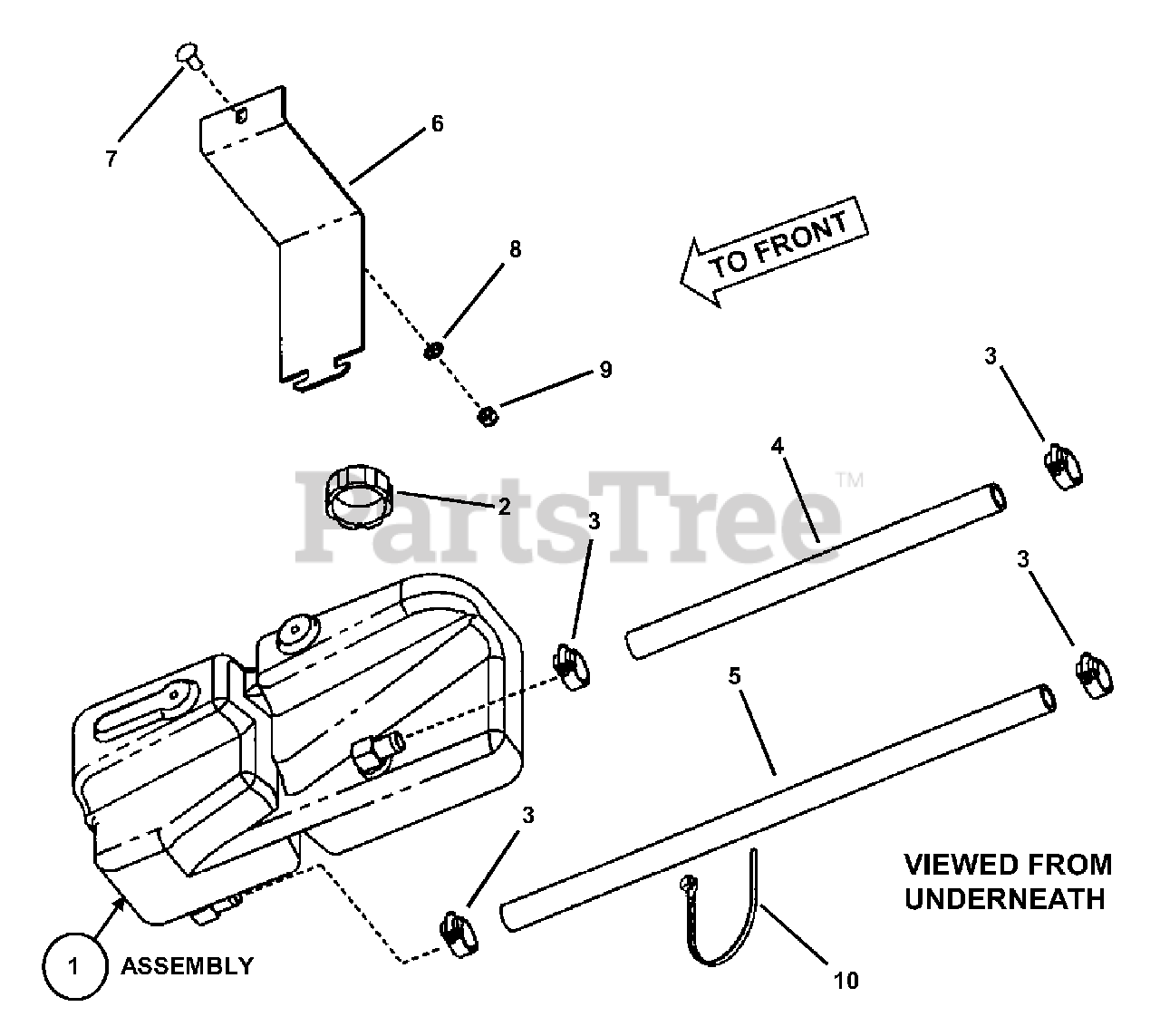

Hydro Reservoir Assembly (Left Hand) Parts Diagram

  • Title
1

Snapper Pro 7054103

RESERVOIR, L. H. Hydro

Note: (Includes cap, item 2)

$

$

Not available

2

Snapper Pro 7035512

CAP, Reservoir

$

$

Not available

3

Snapper Pro 7016130

CLAMP,
(Superseded to 7016130YP)

Note: for 13/16" Hose

$3.49

$

In Stock, only 1 left!

0

4

Snapper Pro 7035514

HOSE, Rubber 5/8 I.D. x 13-1/2" long
(Superseded to 7035514YP)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7044788

HOSE, Rubber 5/8" I.D. x 20" long
(Superseded to 7044788YP)

$30.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7044790

BRACKET, Tank L. H.
(Superseded to 7044790YP)

$29.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5

$

$

Not available

8

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7012080

CABLE TIE, 7" long
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
