MZM 2200 KH (7084412) - Snapper Zero-Turn Mower, 22hp Kohler Seat Support Assembly (Part 1) Parts Diagram

Zero-Turn Mower, 22hp Kohler

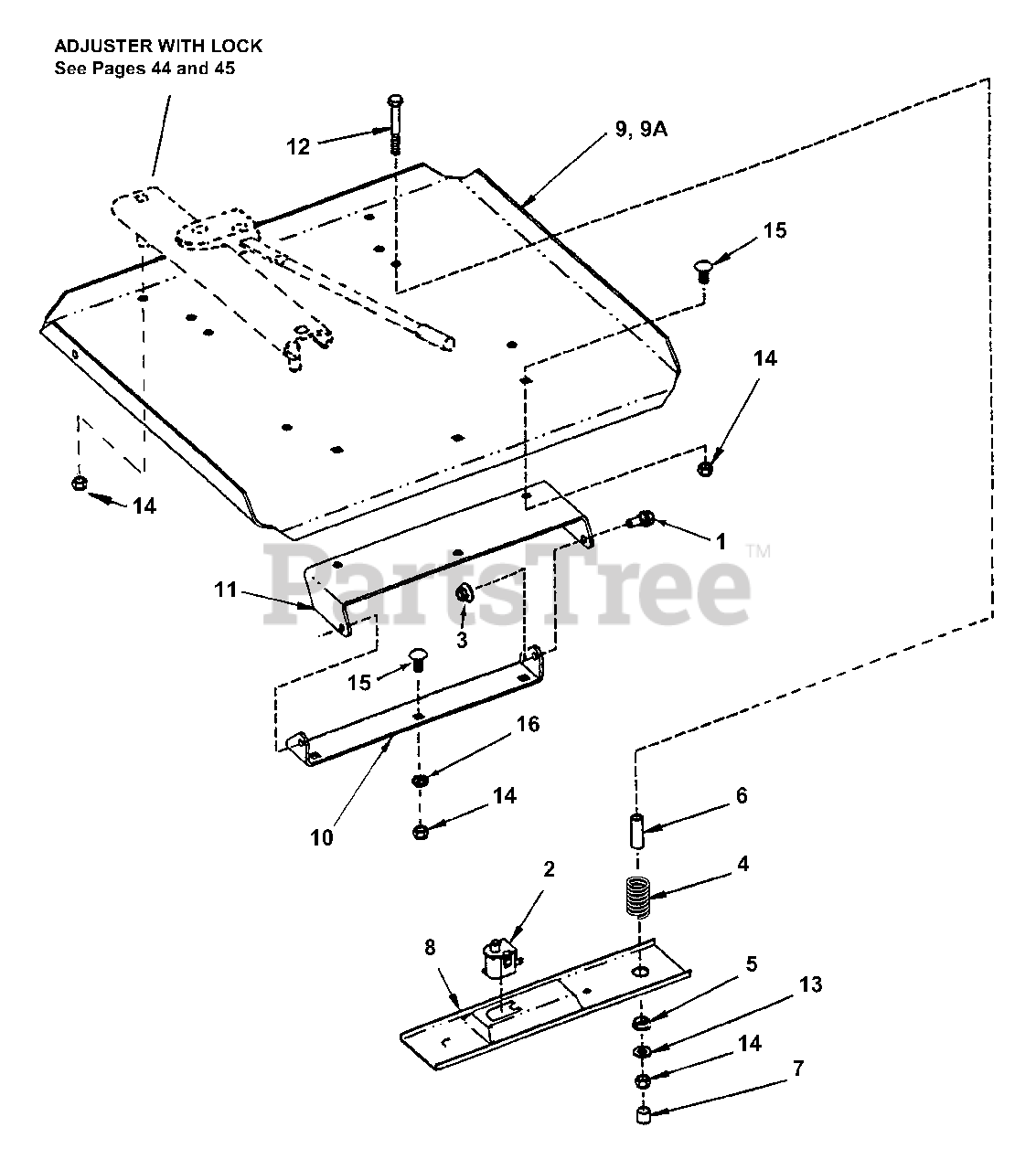

Seat Support Assembly (Part 1) Parts Diagram

  • Title

1

Snapper Pro 7015761

BOLT, 5/16-18 x 3/4" Shoulder

$5.49

$

In Stock, only 2 left!

0

2

Snapper Pro 7023354

SWITCH, Seat (Normally Closed)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

3

Snapper Pro 7090951

NUT, 5/16-18 Hex Flange Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

4

Snapper Pro 7036492

SPRING
(Superseded to 7036492YP)

$7.49

$

Usually ships in 2-12 days

0

Snapper Pro 7092007

SPRING (Models MZM2200KH, MZM2300K & ZMT2500KH Only)

$

$

Currently unavailable

5

Snapper Pro 7022793

BUSHING, Molded Seat, 1/2 I.D. x 5/8" O.D.
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7022794

SPACER, 5/16 I.D. x 1-3/8" Long

$

$

Currently unavailable

7

Snapper Pro 7023606

CAP, Vinyl
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

8

Snapper Pro 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7035827

PLATE, Seat Support
(Superseded to 7035827YP)

$159.99

$

Usually ships in 2-12 days

0

9A

Snapper Pro 7046960

PLATE, Seat Support (Models MZM2200K & MZM2300K Only)
(Superseded to 7046960YP)

$153.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7072210

HINGE, Seat Support
(Superseded to 7072210YP)

$21.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035839

BRACKET, Upper Seat Support Hinge

Note: (Used on all but ZMT2500KH)

$

$

Not available

12

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 7090188

WASHER, 5/16 x 11/16 O.D. Flat

Note: Was 91296

$

$

Not available

14

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4 Carriage Grade 5

$

$

Not available

16

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
