MZ (MZ Magnum) - Bad Boy Zero-Turn Mower (2019) FRONT FORK ASSEMBLY Parts Diagram

Zero-Turn Mower

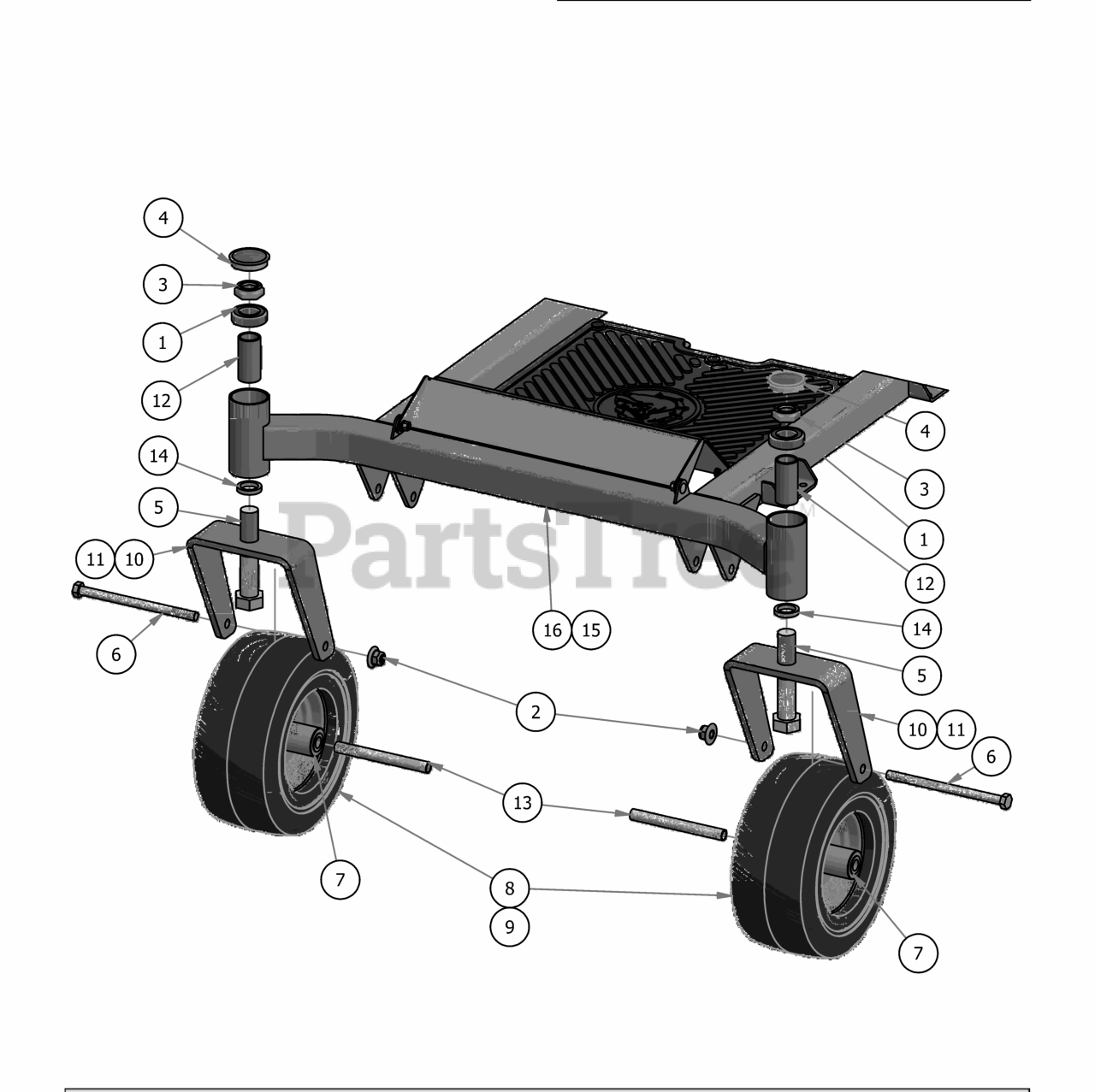

FRONT FORK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

4

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

5

Bad Boy 018-0005-00

1-14 x 5 Hex Bolt Grade 8 Zinc Yellow

$7.99

$

In Stock, only 4 left!

0

6

Bad Boy 018-0035-00

1/2 -13 x 7.5 Hex Bolt Grade 5

$5.49

$

In Stock, Qty 12

0

7

Bad Boy 022-7009-00

Front Wheel Bearing

$14.99

$

In Stock, Qty 20+

0

8

Bad Boy 022-8049-00

11x6-5 front tire & wheel assembly

$105.99

$

In Stock, Qty 14

0

9

Bad Boy 022-8051-00

11x4-5 MZ Front Tire Assembly (42" MZ Only)

$81.99

$

In Stock, only 2 left!

0

10

Bad Boy 023-0002-00

2017 MZ Front fork

$33.99

$

In Stock, only 2 left!

0

11

Bad Boy 023-0005-00

MZ 8mm Front Fork (42" MZ Only)

$45.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

13

Bad Boy 025-0008-00

Front Wheel Spanner

$16.99

$

In Stock, Qty 20+

0

14

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

15

Bad Boy 070-5420-00

2017 MZ/ZT 54"-60" Frame

$

$

Not available

16

Bad Boy 070-5810-00

2017 MZ/ZT 42"-48" Frame

$

$

Not available
