MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2025) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

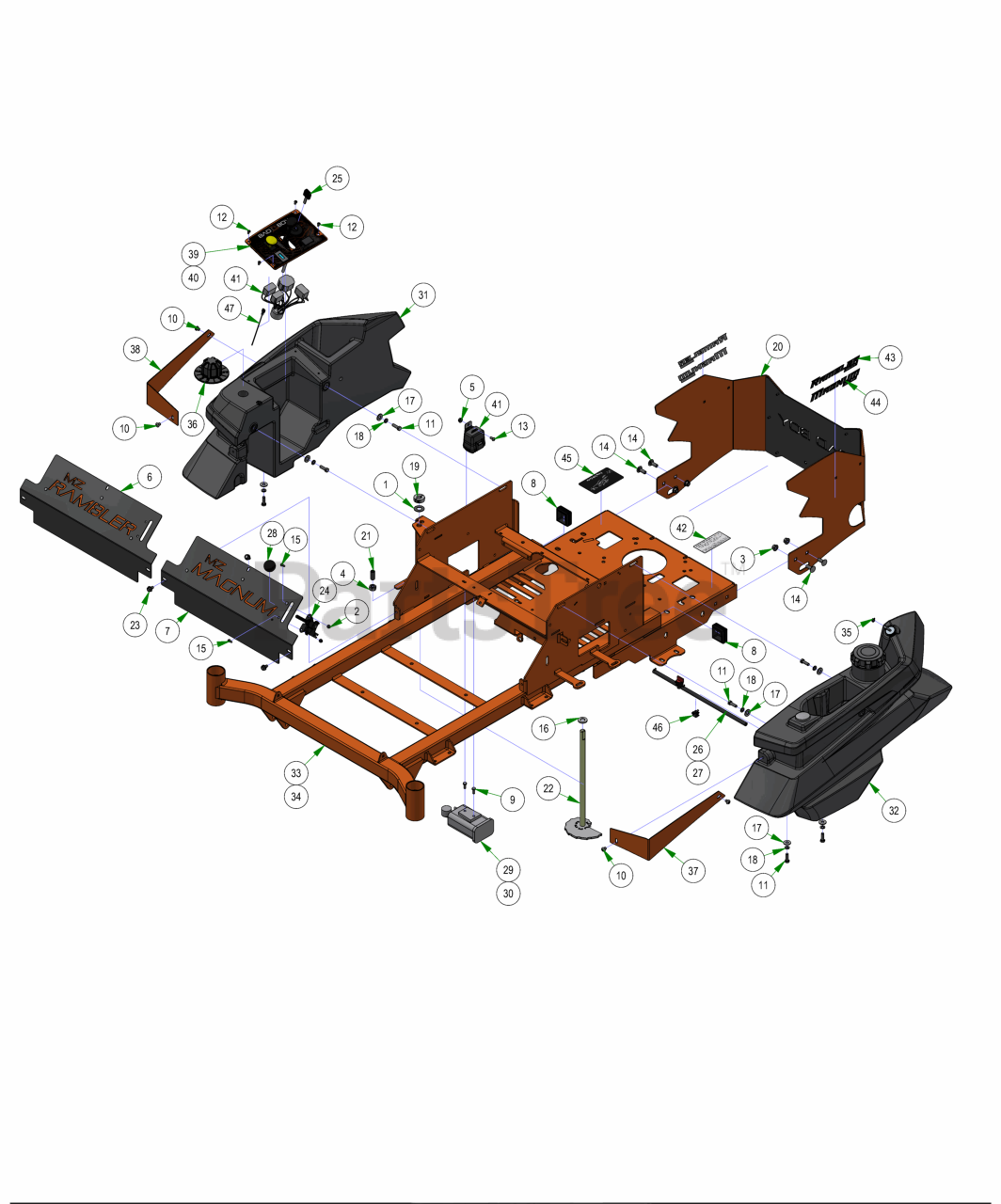

FUEL TANK & REAR COVER Parts Diagram

  • Title

1

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 014-3317-23

2023 MZ Rambler Cooler Cover Assembly

$79.99

$

Usually ships in 4-7 days

0

7

Bad Boy 014-3318-23

2023 MZ Magnum Cooler Cover Assembly

$79.99

$

Usually ships in 4-7 days

0

8

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

10

Bad Boy 018-0116-00

5/16-18 x 3/8 Button SOC CAP BLACK

$0.99

$

Usually ships in 0 days

0

11

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

12

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 9

0

13

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

18

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

19

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

20

Bad Boy 026-0400-25

MZ Rear Cover Assembly

$

$

Currently unavailable

21

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

22

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

23

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

24

Bad Boy 039-0035-22

MZ Brake Plate Assembly w/ Brake Cable

$56.99

$

Usually ships in 4-7 days

0

25

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

26

Bad Boy 051-0001-23

15" Fuel Line Assembly

$

$

Currently unavailable

27

Bad Boy 051-2014-31

31" Fuel Line Assembly

$

$

Currently unavailable

28

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

29

Bad Boy 067-0015-01

MZ Kohler 42" EPA Canister Assembly

$45.99

$

Usually ships in 0 days

0

30

Bad Boy 067-0015-02

MZ Kohler EPA Canister Assembly

$60.99

$

Usually ships in 4-7 days

0

31

Bad Boy 067-2025-00

2025 Aven, Magnum & Rambler RH Consol Tank

$

$

Currently unavailable

32

Bad Boy 067-2026-00

2025 Aven, Magnum & Rambler LH Fuel Tank

$

$

Currently unavailable

33

Bad Boy 070-2500-00

2025 MZ 42-48 Frame

$1025.99

$

Usually ships in 0 days

0

34

Bad Boy 070-2501-00

2025 MZ-Avenger 54-60 Frame

$1025.99

$

Usually ships in 0 days

0

35

Bad Boy 072-8070-00

MZ Tank Hose Clamp 1/4 Vinyl

$1.99

$

Usually ships in 4-7 days

0

36

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

37

Bad Boy 079-3292-00

2025 Metal tank insert - Right

$

$

Currently unavailable

38

Bad Boy 079-3293-00

2025 Metal Tank insert - left

$

$

Currently unavailable

39

Bad Boy 079-3560-25

2025 Small Mower Control Panel Assembly

$

$

Currently unavailable

40

Bad Boy 079-3562-25

2023 Rambler Control Panel Assembly

$

$

Currently unavailable

41

Bad Boy 086-3600-25

2025 Wiring Harness with Clips and Lights

$

$

Not available

42

Bad Boy 091-0015-25

2025 EPA Build Date Punch Decal

$

$

Currently unavailable

43

Bad Boy 091-0508-00

Rambler Back Plate Decal

$11.99

$

Usually ships in 4-7 days

0

44

Bad Boy 091-0509-00

Magnum Back Plate Decal

$11.99

$

Usually ships in 4-7 days

0

45

Bad Boy 091-3017-00

Pump Belt Route Decal-Pump Plate

$5.49

$

Usually ships in 4-7 days

0

46

Bad Boy 214-1008-00

Edge Clip With Ziptie

$

$

Currently unavailable

47

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0
