MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2025) FRAME SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

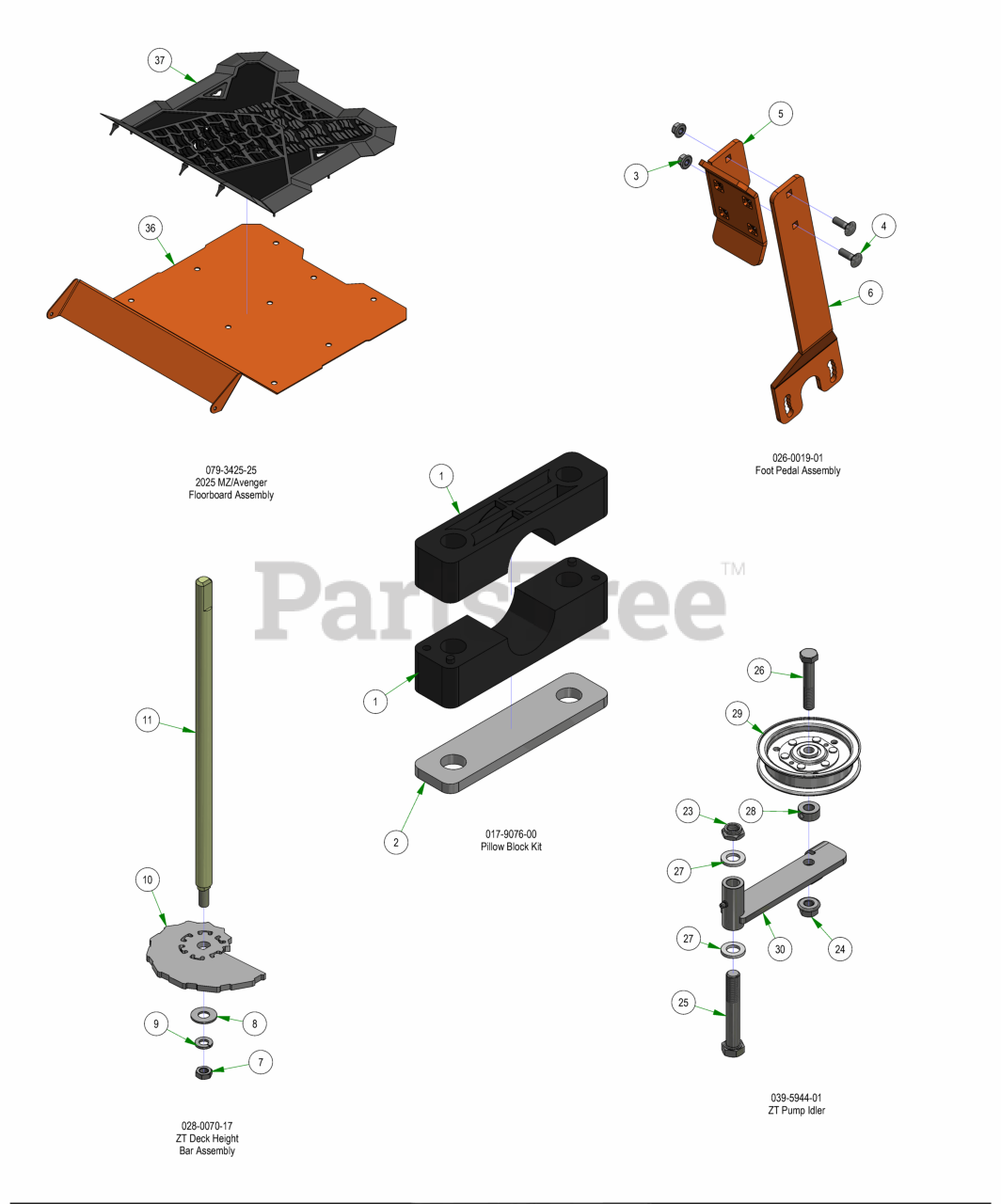

FRAME SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

2

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

5

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

6

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

10

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

11

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

15

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

17

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

20

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

22

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

23

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

24

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

26

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

27

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

28

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

29

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

30

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, only 3 left!

0

31

Bad Boy 071-1001-00

Seat Cover for 071-1000-00

$136.99

$

Usually ships in 4-7 days

0

32

Bad Boy 071-1002-00

Seat Foam for 071-1000-00

$90.99

$

Usually ships in 0 days

0

33

Bad Boy 071-1004-00

SeatSwitch for 071-1000-00/071-1000-22/071-2100-22

$

$

Not available

34

Bad Boy 071-2108-00

Avenger Seat Cover

$136.99

$

Usually ships in 4-7 days

0

35

Bad Boy 071-2110-00

Water Proofing Protection

$

$

Currently unavailable

36

Bad Boy 079-3425-00

2025 MZ Avenger Floorboard

$

$

Currently unavailable

37

Bad Boy 081-4002-00

25 Mav Floor Mat. V4

$

$

Currently unavailable

38

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

39

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

40

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

42

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

43

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

44

Bad Boy 077-8078-00

4-Way Key Switch

$12.99

$

Usually ships in 0 days

0

45

Bad Boy 079-3462-00

2025 Control Panel

$

$

Currently unavailable

46

Bad Boy 091-4082-00

2025 Reaper Control Panel Decal

$

$

Currently unavailable

47

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

48

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0
