MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2025) DECK SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

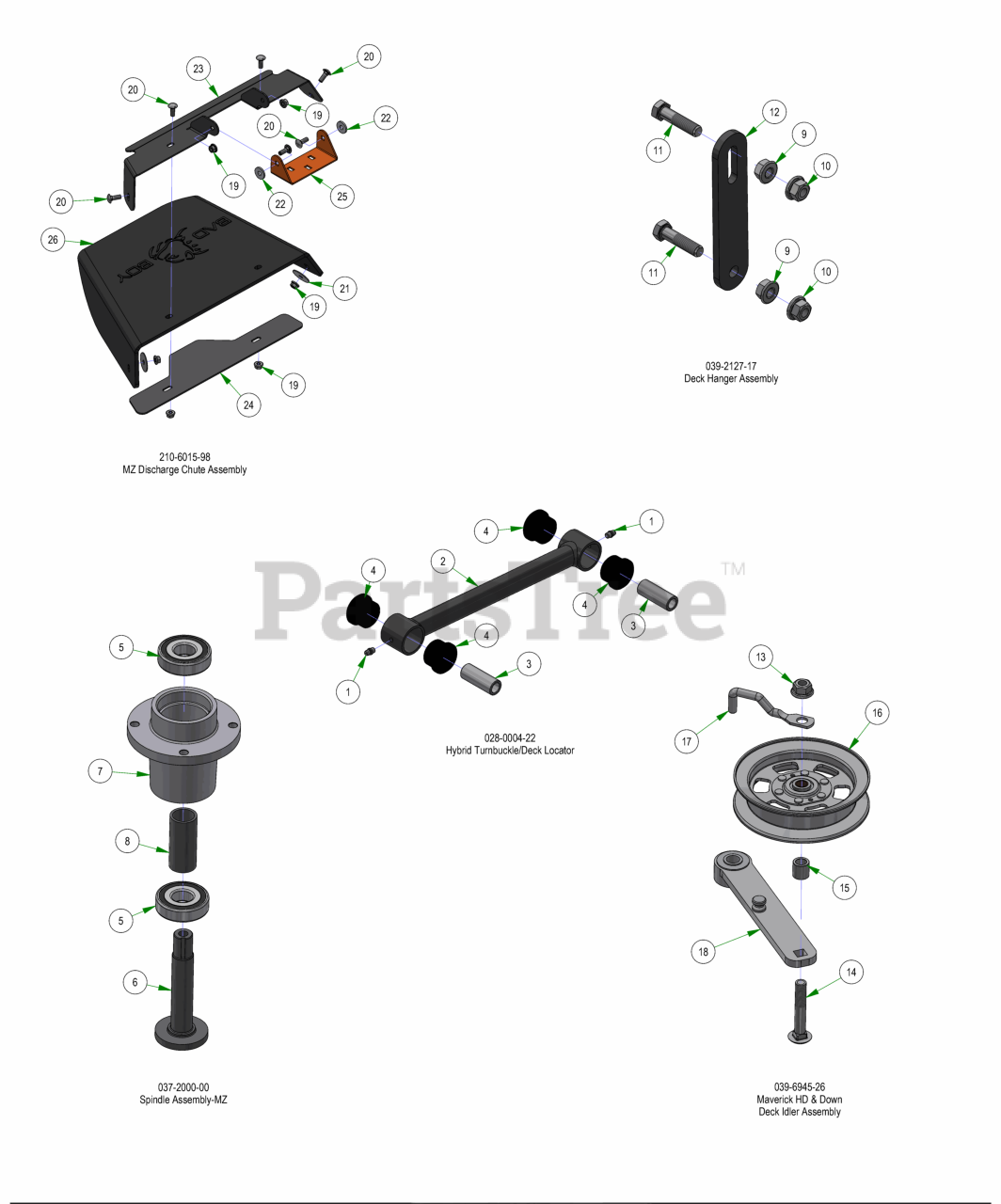

DECK SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 028-0004-03

2022 Isolator Turnbuckle Body

$

$

Currently unavailable

3

Bad Boy 048-6004-00

2018 Maverick Bushing Sleeve

$12.99

$

Usually ships in 4-7 days

0

4

Bad Boy 048-6005-00

2018 Maverick Bushing

$34.99

$

Usually ships in 4-7 days

0

5

Bad Boy 037-6024-00

Spindle Bearing

$36.99

$

In Stock, Qty 20+

0

6

Bad Boy 037-6025-00

Spindle Shaft

$64.99

$

In Stock, Qty 5

0

7

Bad Boy 037-6027-00

Spindle Housing

$105.99

$

Usually ships in 4-7 days

0

8

Bad Boy 037-6028-00

Spindle Spacer-Component

$15.99

$

Usually ships in 4-7 days

0

9

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 039-2127-00

2017 MZ/ZT Deck Hanger

$11.99

$

Usually ships in 0 days

0

13

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 018-0067-00

1/2-13 x 3 Carriage Bolt Grade 5

$

$

Currently unavailable

15

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 17

0

16

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

17

Bad Boy 039-0401-00

2025 R-Series Belt Retainer

$5.99

$

Usually ships in 0 days

0

18

Bad Boy 039-7002-00

2025 Tensioner Arm With Bearings

$23.99

$

Usually ships in 0 days

0

19

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

21

Bad Boy 019-0002-00

5/16 FENDER WASHER (1-1/2 OD) ZINC

$

$

Not available

22

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

23

Bad Boy 039-4891-00

Discharge Chute Bracket 48 MZ (Upper)

$37.99

$

Usually ships in 4-7 days

0

24

Bad Boy 039-4892-00

2017 MZ Discharge Chute Bracket-Lower

$

$

Not available

25

Bad Boy 206-6020-00

Chute Hanger 48 MZ

$30.99

$

Usually ships in 4-7 days

0

26

Bad Boy 210-6014-00

Rubber Discharge Chute MZ (Component)

$56.99

$

In Stock, only 2 left!

0
