MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2025) 42" DECK Parts Diagram

Zero-Turn Mower

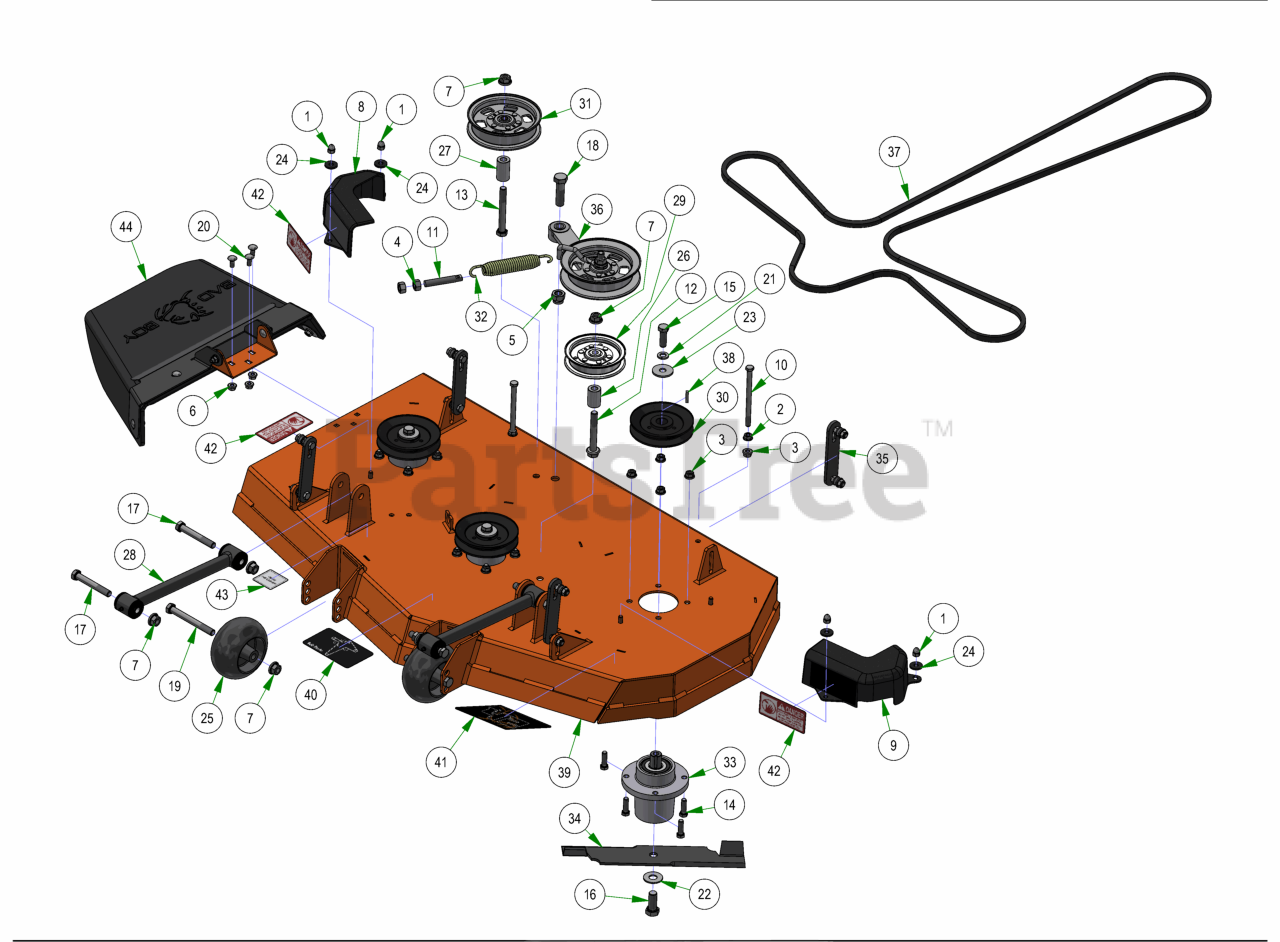

42" DECK Parts Diagram

  • Title

1

Bad Boy 013-0004-00

5/16-18 ACORN NUT HIGH-CROWN ZC

$3.49

$

In Stock, Qty 8

0

2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

7

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 014-4025-00

Pulley Cover Chute Side

$19.99

$

Usually ships in 4-7 days

0

9

Bad Boy 014-4026-00

Pulley Cover Non-Chute Side

$19.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-0065-00

3/8-16 X 5-1/4 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

12

Bad Boy 018-2018-00

1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC

$3.99

$

In Stock, Qty 6

0

13

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

14

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

15

Bad Boy 018-6019-00

1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

0

16

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 1 left!

0

18

Bad Boy 018-6058-00

5/8-11 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Currently unavailable

19

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 13

0

20

Bad Boy 018-8062-00

5/16-18 x 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

24

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

25

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

0

26

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

27

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

28

Bad Boy 028-0004-22

Hybrid Turnbuckle/Deck Locator

$49.99

$

In Stock, Qty 20+

0

29

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

30

Bad Boy 033-6002-00

42" MZ Spindle Pulley

$23.99

$

In Stock, only 4 left!

0

31

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

32

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

33

Bad Boy 037-2000-00

Spindle Assembly-MZ

$232.99

$

In Stock, Qty 20+

0

34

Bad Boy 038-4221-00

42" High Lift Fusion Blade-MZ

$24.99

$

In Stock, Qty 20+

0

35

Bad Boy 039-2127-17

Deck Hanger Assembly

$16.99

$

In Stock, only 3 left!

0

36

Bad Boy 039-6945-26

Maverick HD & Down Deck Idler Assembly

$

$

Currently unavailable

37

Bad Boy 041-4023-00

2023 42" Deck Belt

$83.99

$

In Stock, Qty 20+

0

38

Bad Boy 042-0010-00

3/16 X 1 SQ MACHINERY KEY 1018 STL ZINC

$4.99

$

In Stock, Qty 19

0

39

Bad Boy 060-2508-00

2025 42" x 4" Deck

$

$

Currently unavailable

40

Bad Boy 091-0393-00

2017 MZ Magnum 48"/42" Deck Route Decal

$12.99

$

Usually ships in 4-7 days

0

41

Bad Boy 091-0531-00

42" Grip Deck Decal

$

$

Currently unavailable

42

Bad Boy 091-3012-00

Danger Decal-Spindle/Discharge

$3.49

$

In Stock, only 2 left!

0

43

Bad Boy 091-8001-00

Deck Impact Patent Decal 9591803

$0.99

$

Usually ships in 4-7 days

0

44

Bad Boy 210-6015-98

MZ Discharge Chute Assembly

$166.99

$

In Stock, only 4 left!

0
