MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2024) FRONT FORK Parts Diagram

Zero-Turn Mower

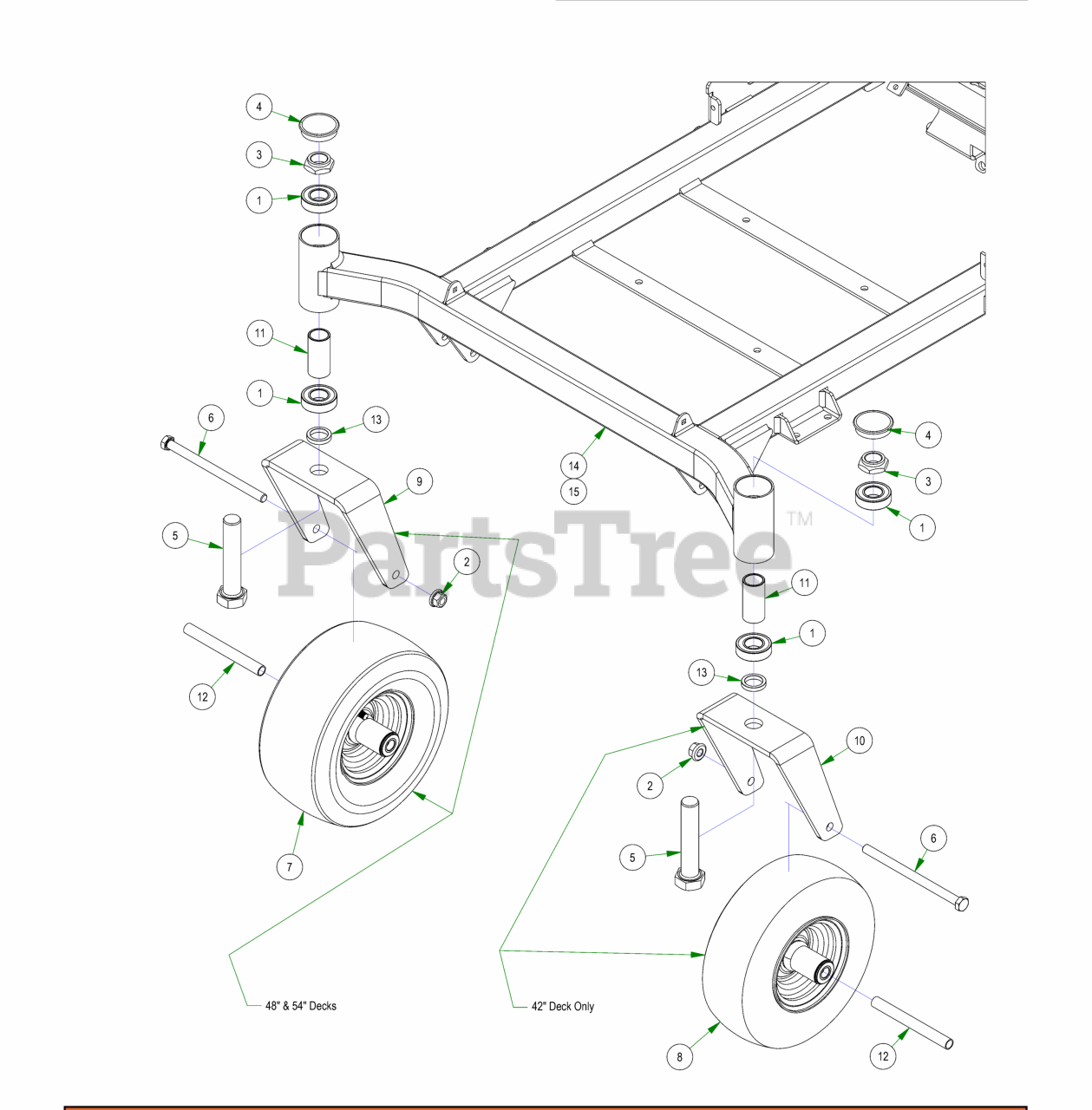

FRONT FORK Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

4

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

5

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

6

Bad Boy 018-0035-00

1/2-13 X 7-1/2 HEX CAP SCREW (GR.5) ZINC

$5.49

$

In Stock, Qty 12

0

7

Bad Boy 022-8049-22

11x6.00-5 Front Assembly - Black Wheel

$105.99

$

In Stock, only 4 left!

0

8

Bad Boy 022-8051-22

11 x 4.00 - 5 Front Tire Assembly (Black)

$61.99

$

In Stock, only 3 left!

0

9

Bad Boy 023-0002-00

2017 MZ Front fork

$33.99

$

In Stock, only 2 left!

0

10

Bad Boy 023-0005-00

MZ Front Fork (42" ONLY)

$45.99

$

Usually ships in 4-7 days

0

11

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

12

Bad Boy 025-0008-00

Front Wheel Spanner

$16.99

$

In Stock, Qty 20+

0

13

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 9

0

14

Bad Boy 070-2400-00

2024 MZ 42-48 Frame

$

$

Not available

15

Bad Boy 070-2401-00

2024 MZ-Avenger 54-60 Frame

$

$

Currently unavailable
