MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2024) DRIVE ARM SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

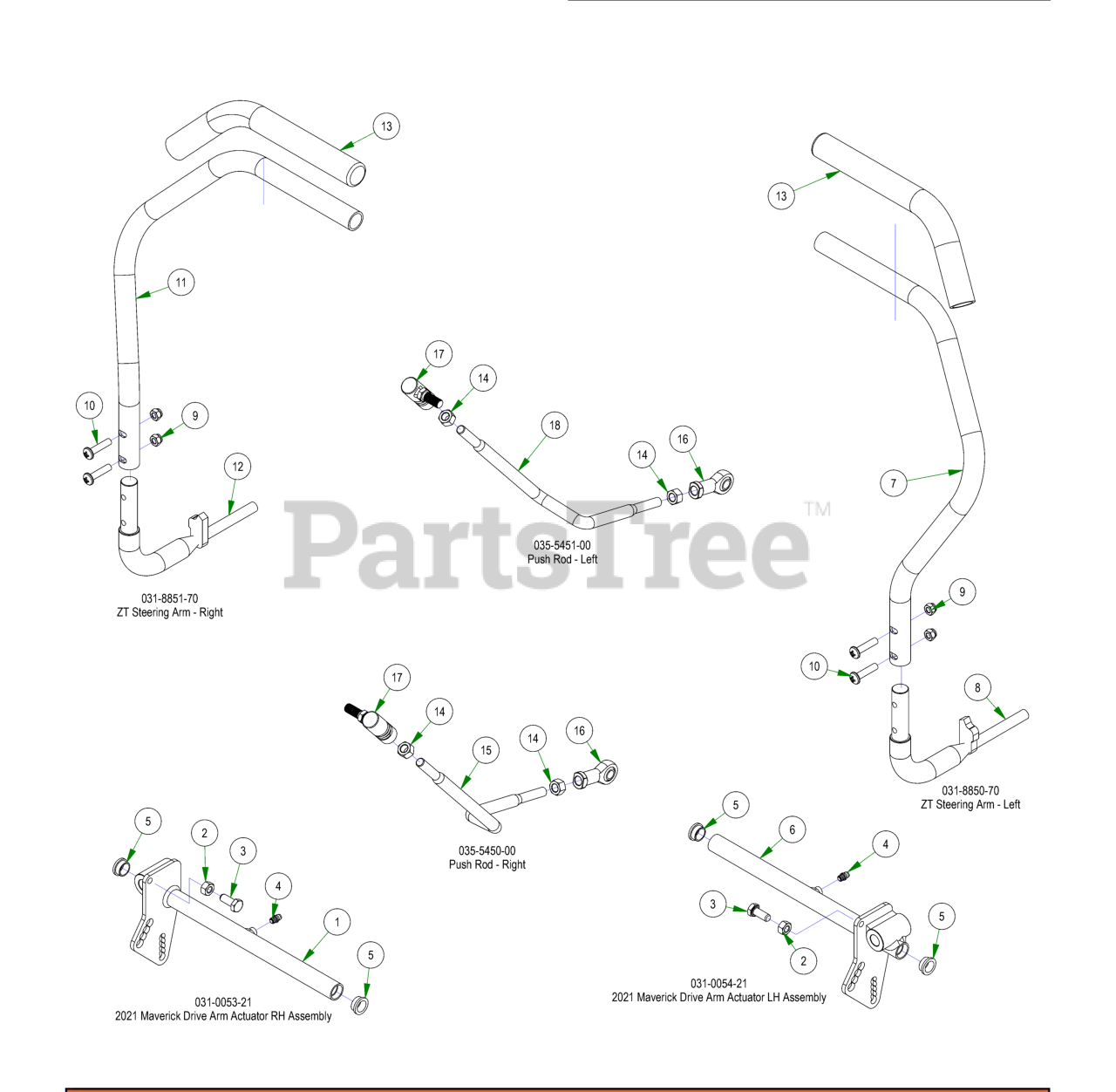

DRIVE ARM SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 031-0053-00

2021 Drive Actuator RH Weldment

$

$

Not available

2

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

3

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

6

Bad Boy 031-0054-00

2021 Drive Actuator LH Weldment

$

$

Not available

7

Bad Boy 031-8850-02

ZT Direction Steering Arm (Left)

$90.99

$

Usually ships in 4-7 days

0

8

Bad Boy 031-9020-70

Steering Arm Elbow (Left)

$90.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

11

Bad Boy 031-8851-02

ZT Direction Steering Arm (Right)

$90.99

$

Usually ships in 4-7 days

0

12

Bad Boy 031-9025-70

Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

13

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

14

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 035-5450-01

Push Rod - Right (Rod Only)

$

$

Currently unavailable

16

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

17

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

18

Bad Boy 035-5451-01

Push Rod LH (Rod Only)

$

$

Currently unavailable
