MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2023) TRANSAXLES Parts Diagram

Zero-Turn Mower

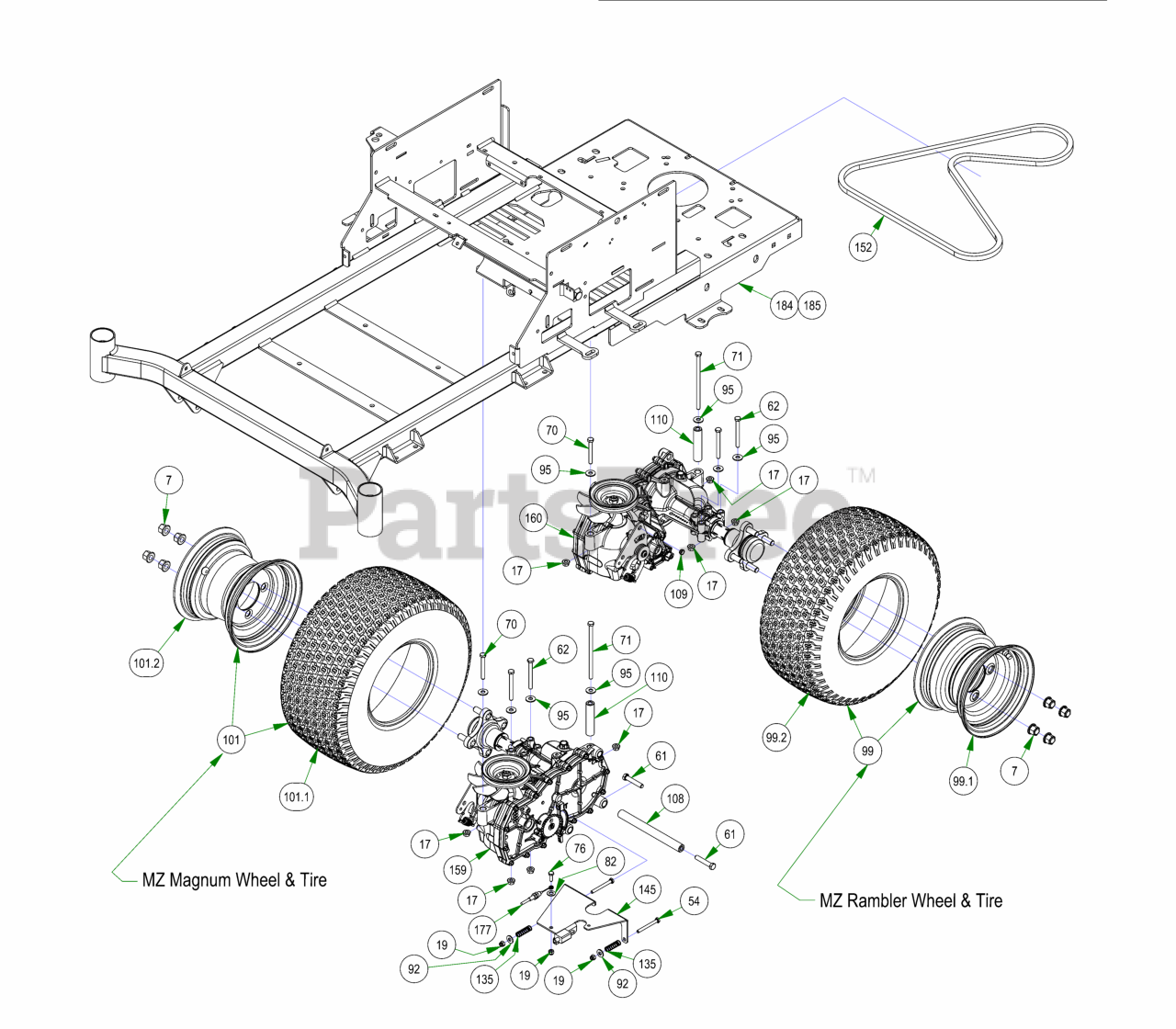

TRANSAXLES Parts Diagram

  • Title

7

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

19

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

54

Bad Boy 018-1076-00

1/4-20 X 2-1/2 HEX CAP SCREW (GR.2) ZINC

$0.99

$

In Stock, only 2 left!

0

61

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

62

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

70

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

71

Bad Boy 018-5355-00

5/16-18 X 6 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 3 left!

0

76

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

82

Bad Boy 019-2003-00

.390 ID X .750 OD X .062 THK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

92

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

95

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

99

Bad Boy 022-2050-22

18x8.50-8 x/*" Tire & Wheel (Black)

$227.99

$

Usually ships in 4-7 days

0

101

Bad Boy 022-8050-22

18x9.50-8 Tire and Wheel - Black Wheel

$175.99

$

Usually ships in 4-7 days

0

108

Bad Boy 025-0016-00

2017 Transaxle Spacer-MZ

$14.99

$

In Stock, only 3 left!

0

109

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

110

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

135

Bad Boy 034-3050-00

Brake Spring

$1.49

$

In Stock, only 3 left!

0

145

Bad Boy 039-0035-01

2017 MZ/Magnum Brake Plate Assembly

$19.99

$

Usually ships in 4-7 days

0

152

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

159

Bad Boy 050-4070-00

2017 EZT -Right -MZ Models

$683.99

$

Usually ships in 4-7 days

0

160

Bad Boy 050-4071-00

2017 EZT -Left -MZ Models

$683.99

$

Usually ships in 4-7 days

0

177

Bad Boy 064-8057-17

MZ Brake Cable

$27.99

$

In Stock, Qty 20+

0

184

Bad Boy 070-2300-00

2023 MZ 42-48 Frame - Painted

$

$

Not available

185

Bad Boy 070-2301-00

2023 MZ-Avenger 54-60 Frame - Painted

$

$

Currently unavailable

99.1

Bad Boy 022-2051-22

Rim for 022-2050-22

$102.99

$

Usually ships in 4-7 days

0

99.2

Bad Boy 022-2052-22

Tire for 022-2050-22

$182.99

$

Usually ships in 4-7 days

0

101.1

Bad Boy 022-8025-00

18x9.50-8 Rear Tire Only 48 MZ

$191.99

$

Usually ships in 4-7 days

0

101.2

Bad Boy 022-8026-22

Black Rear Wheel 48in MZ

$62.99

$

Usually ships in 4-7 days

0
