MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2023) FRAME SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

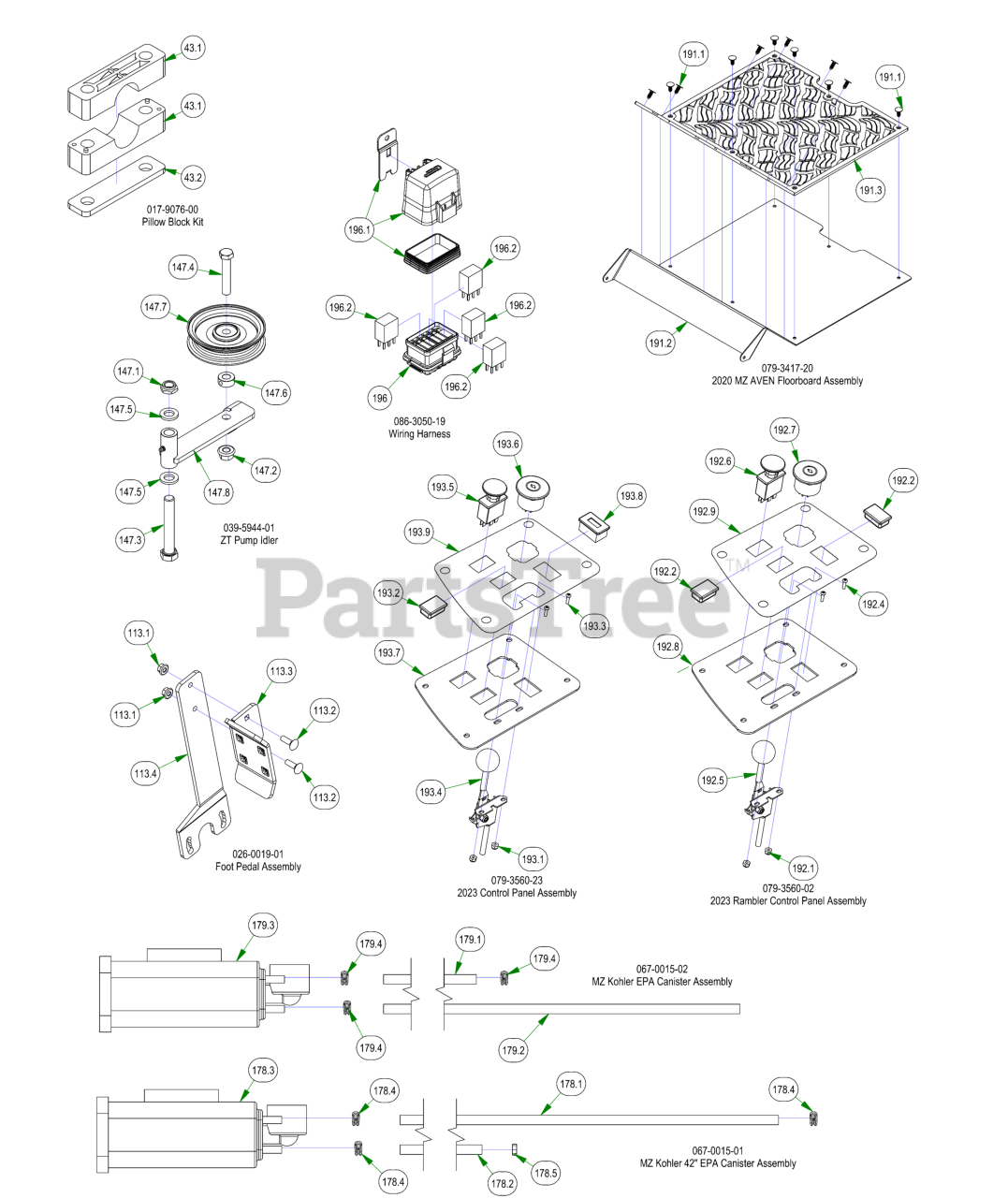

FRAME SUB ASSEMBLIES Parts Diagram

  • Title

43

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

113

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

147

Bad Boy 039-5944-01

ZT Pump Idler

$66.99

$

In Stock, only 2 left!

0

178

Bad Boy 067-0015-01

MZ Kohler 42" EPA Canister Assembly

$45.99

$

Usually ships in 0 days

0

179

Bad Boy 067-0015-02

MZ Kohler EPA Canister Assembly

$60.99

$

Usually ships in 4-7 days

0

191

Bad Boy 079-3417-20

2020 MZ AVEN Floorboard Assembly

$

$

Not available

192

Bad Boy 079-3560-02

2023 Rambler Control Panel Assembly

$

$

Currently unavailable

193

Bad Boy 079-3560-23

2023 Control Panel Assembly

$

$

Currently unavailable

196

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

43.1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

43.2

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

113.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

113.2

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

113.3

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

113.4

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

147.1

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

147.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

147.3

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

147.4

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

147.5

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

147.6

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

147.7

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

178.1

Bad Boy 051-2023-01

3/16 Vinyl Tubing, 53"

$10.99

$

Usually ships in 4-7 days

0

178.2

Bad Boy 051-2027-01

3/16" Clear Vinyl Tubing, 44"

$7.99

$

Usually ships in 4-7 days

0

178.3

Bad Boy 067-0015-00

Carbon Canister for Magnum/MZ

$49.99

$

Usually ships in 4-7 days

0

178.4

Bad Boy 072-0002-00

8.6mm Hose Clamp

$2.99

$

Usually ships in 4-7 days

0

178.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

179.1

Bad Boy 051-2023-02

3/16 Vinyl Tubing, 44"

$13.99

$

Usually ships in 4-7 days

0

179.2

Bad Boy 051-2027-02

3/16" Clear Vinyl Tubing, 52"

$7.99

$

Usually ships in 4-7 days

0

179.3

Bad Boy 067-0015-00

Carbon Canister for Magnum/MZ

$49.99

$

Usually ships in 4-7 days

0

179.4

Bad Boy 072-0002-00

8.6mm Hose Clamp

$2.99

$

Usually ships in 4-7 days

0

191.1

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

191.2

Bad Boy 079-3417-00

MZ/ZT 2017 Floorboard

$166.99

$

Usually ships in 4-7 days

0

191.3

Bad Boy 081-4001-00

2021 Maverick Floor Mat W/ Reaper Tread

$56.99

$

Usually ships in 4-7 days

0

192.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

192.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

192.4

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

192.5

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

192.6

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

192.7

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

192.8

Bad Boy 079-3461-00

2022 Maverick HD control panel

$25.99

$

Usually ships in 4-7 days

0

192.9

Bad Boy 091-4072-00

2023 MZ/Magnum/ZT/Maverick Control Panel Decal

$10.99

$

Usually ships in 4-7 days

0

193.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

193.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

193.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

193.4

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

193.5

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

193.6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

193.7

Bad Boy 079-3461-00

2022 Maverick HD control panel

$25.99

$

Usually ships in 4-7 days

0

193.8

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

193.9

Bad Boy 091-4072-00

2023 MZ/Magnum/ZT/Maverick Control Panel Decal

$10.99

$

Usually ships in 4-7 days

0

196.1

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

196.2

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0
