MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2023) ENGINE - KOHLER KT725 & KT740 Parts Diagram

Zero-Turn Mower

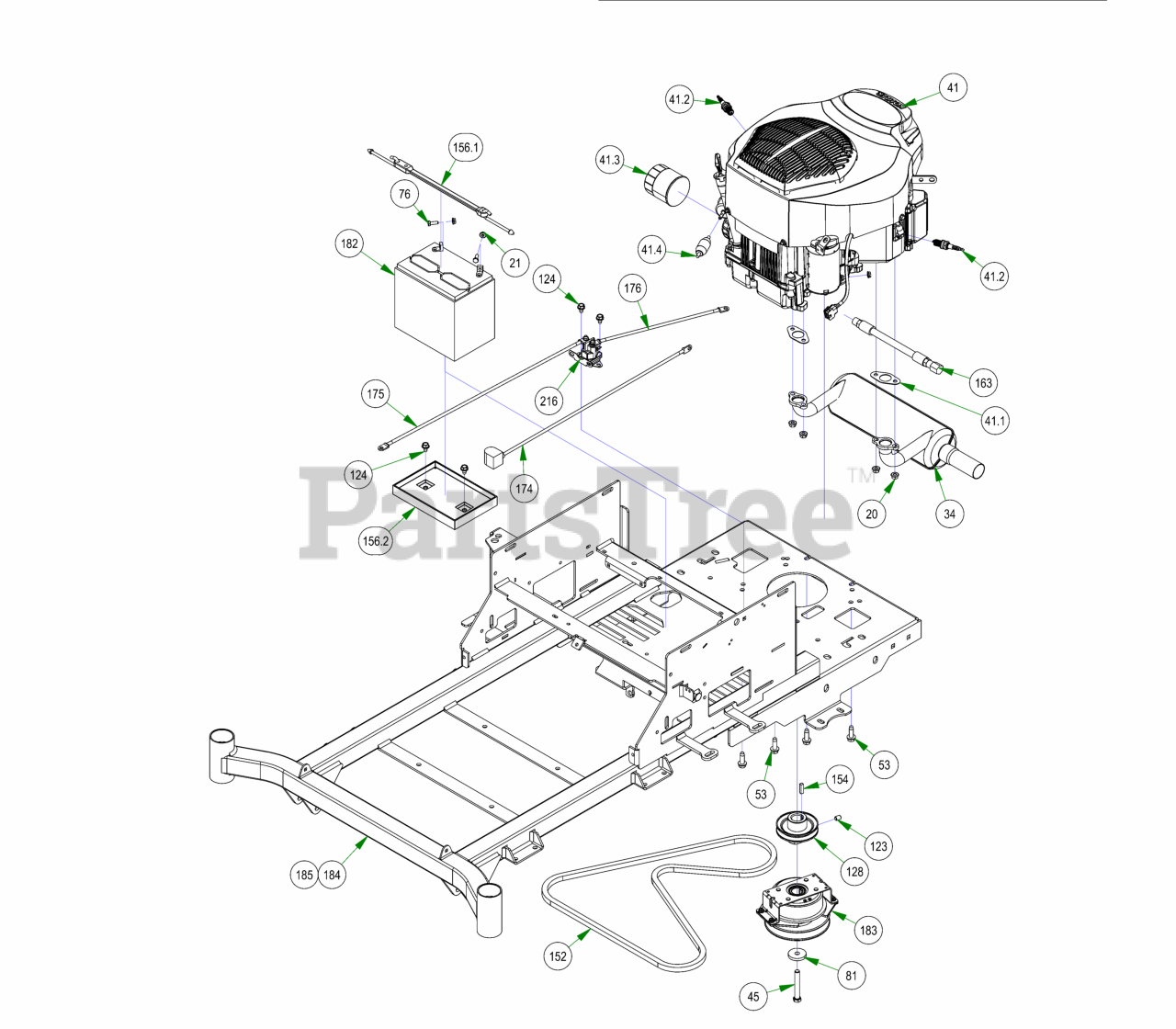

ENGINE - KOHLER KT725 & KT740 Parts Diagram

  • Title

20

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

21

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

34

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 1 left!

0

41

Bad Boy 015-2014-00

25hp Kohler 2014 MZ-KT740-3048

$

$

Not available

45

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

53

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

76

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

81

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

123

Bad Boy 030-6029-00

3/8-16 X 1/2 SOCKET SET SCREW (CUP PT) PLAIN

$0.99

$

In Stock, only 2 left!

0

124

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

128

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 4 left!

0

152

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

154

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

156

Bad Boy 043-8930-98

2023 Battery Hold Down Assembly Strap

$28.99

$

In Stock, only 2 left!

0

163

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, Qty 5

0

174

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

175

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

176

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

182

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

183

Bad Boy 070-0055-00

Clutch

$319.99

$

Usually ships in 4-7 days

0

184

Bad Boy 070-2300-00

2023 MZ 42-48 Frame - Painted

$

$

Not available

185

Bad Boy 070-2301-00

2023 MZ-Avenger 54-60 Frame - Painted

$

$

Currently unavailable

216

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 12

0

41.1

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, Qty 5

0

41.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

41.3

Bad Boy 063-5004-00

25 HP Kohler Oil Filter ZT?MZ

$31.99

$

In Stock, Qty 20+

0

41.4

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

156.1

Bad Boy 043-8930-00

2023 Rubber Battery Hold Down Strap

$22.99

$

In Stock, only 4 left!

0

156.2

Bad Boy 043-8931-00

Battery Tray

$21.99

$

Usually ships in 4-7 days

0
