MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2022) FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

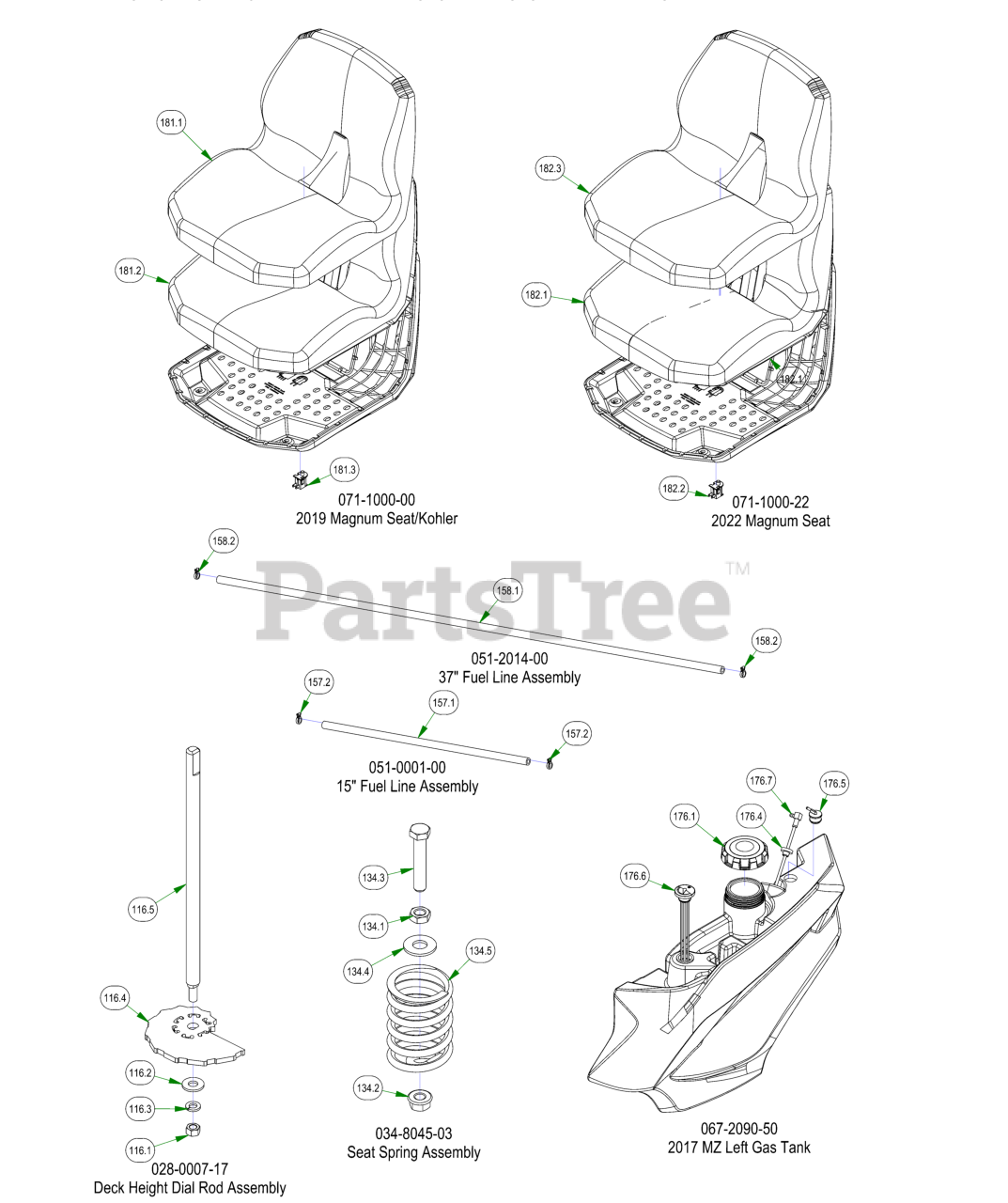

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

116

Bad Boy 028-0007-17

Deck Height Dial Rod Assembly

$30.99

$

Usually ships in 4-7 days

0

134

Bad Boy 034-8045-03

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

157

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

158

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

176

Bad Boy 067-2090-50

2017 MZ Left Gas Tank

$272.99

$

Usually ships in 4-7 days

0

181

Bad Boy 071-1000-00

2019 Magnum Seat/Kohler

$455.99

$

Usually ships in 0 days

0

182

Bad Boy 071-1000-22

2022 Magnum Seat

$455.99

$

Usually ships in 4-7 days

0

116.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

116.2

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

116.3

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

116.4

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

116.5

Bad Boy 028-0007-00

2017 Deck Height Dial Rod MZ

$33.99

$

Usually ships in 4-7 days

0

134.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

134.2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

134.3

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

134.4

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

134.5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

157.1

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

157.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

158.1

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

158.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

176.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

176.4

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

176.5

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

176.6

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 20+

0

176.7

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

181.1

Bad Boy 071-1001-00

Seat Cover for 071-1000-00

$136.99

$

Usually ships in 4-7 days

0

181.2

Bad Boy 071-1002-00

Seat Foam for 071-1000-00

$90.99

$

Usually ships in 0 days

0

181.3

Bad Boy 071-1004-00

SeatSwitch for 071-1000-00/071-1000-22/071-2100-22

$

$

Not available

182.1

Bad Boy 071-1003-00

SK120 Seat Foam for 071-1000-22

$

$

Currently unavailable

182.2

Bad Boy 071-1004-00

SeatSwitch for 071-1000-00/071-1000-22/071-2100-22

$

$

Not available

182.3

Bad Boy 071-1005-00

Bad Boy SK120 Cover with Logo for 071-1000-22

$125.99

$

Usually ships in 4-7 days

0
